Double frame BRK
Item no. 6121107 | EAN 4012196749768
- Product description
-

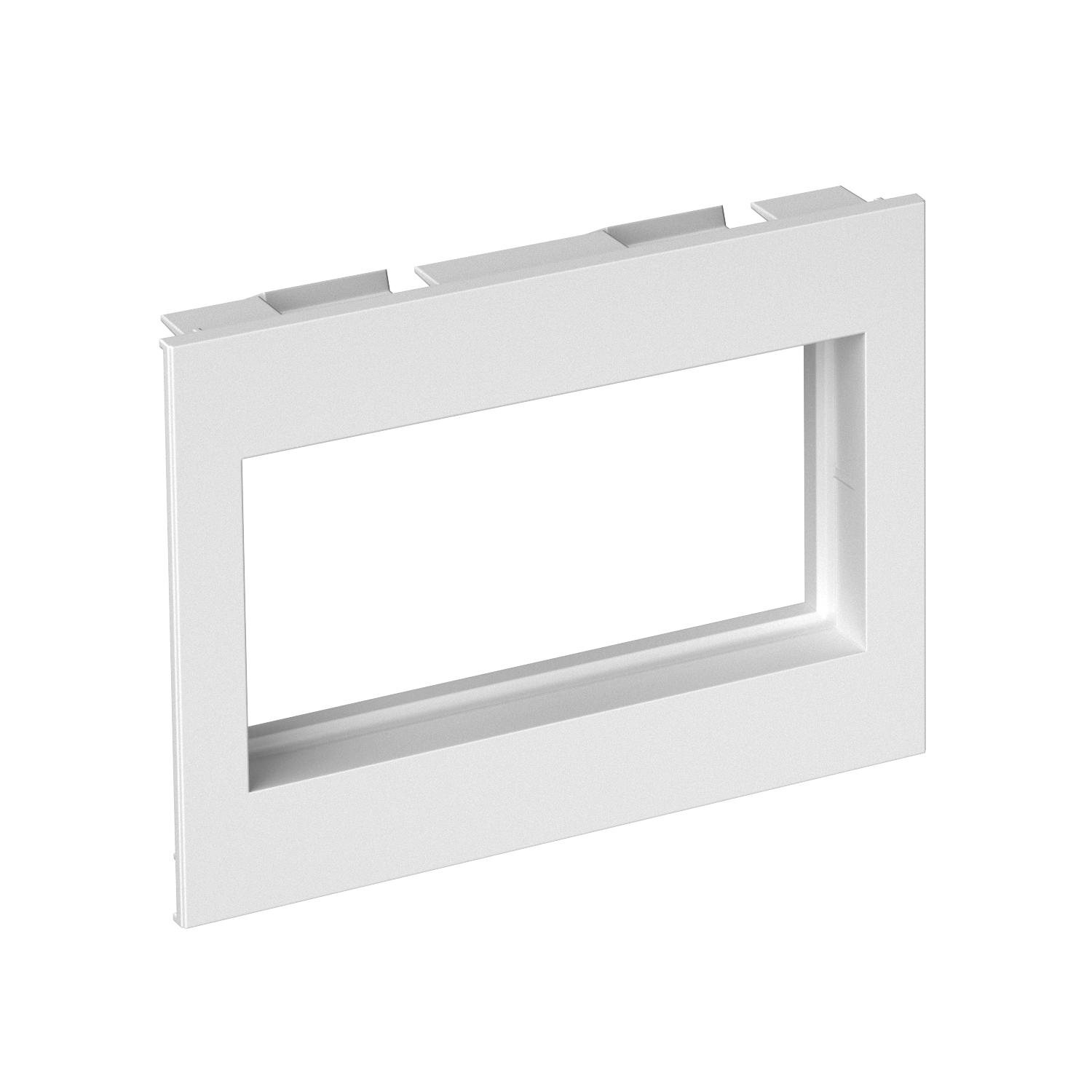

Product descriptionFrame for Modul 45 locking connection (to accept the support plate for Keystone modules).
-
- Technical data
-
Technical data

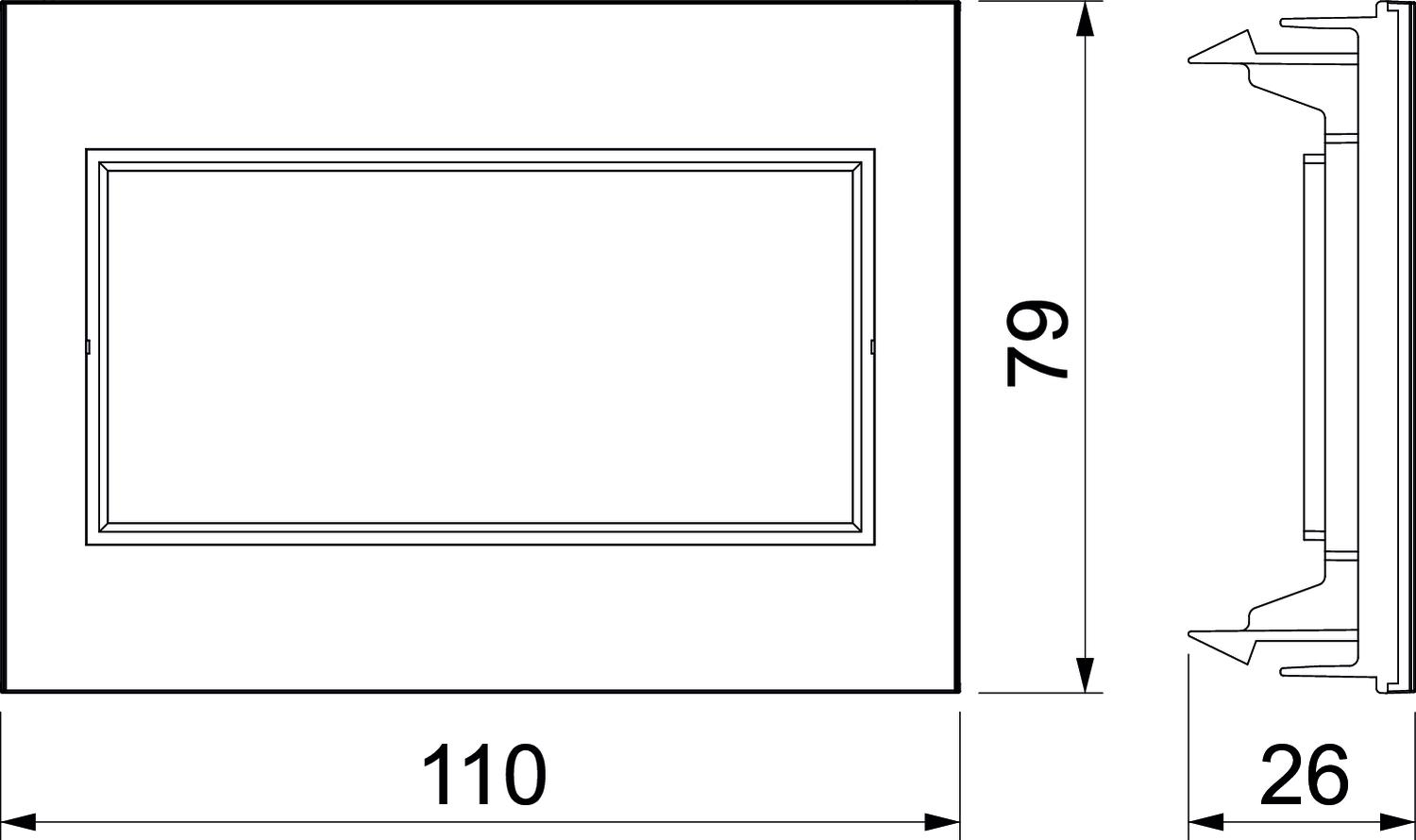

Antibacterial treatment no Anzahl der Einheiten vertikal 2 CO2 Footprint (GWP) Cradle-to-Gate 0,1749 kg CO2e / 1 Piece Colour Anthracite grey; RAL 7016 Concealed no Depth 28 mm Dimension 130x80x22 Einbaubreite 90 mm Fastening type Clamp fastening Flush-mounted version no Halogen-free yes Height 79 mm Hinged cover no Installation height 45 mm Material Polypropylene Mounting direction Horizontal and vertical Number of units 2 Number of units, horizontal 2 Protection rating IP20 Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no Width 110 mm With mounting frame no - All types
- Downloads
-
Data sheet BRK CF2 M45 agr / 6121107 , 0.23MB , pdfNo invitation to tender text is available for this product.
