Earth rod for standard applications 1500 | 16 | Stainless steel
morepic-1 morepic-2

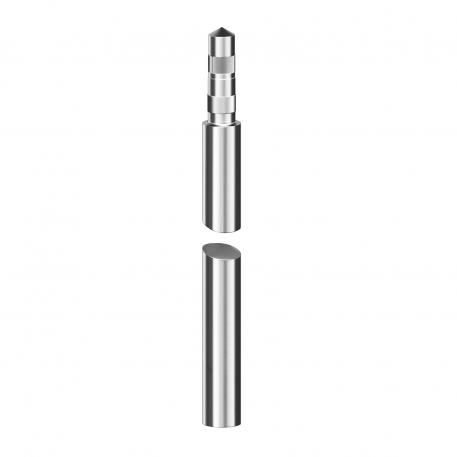

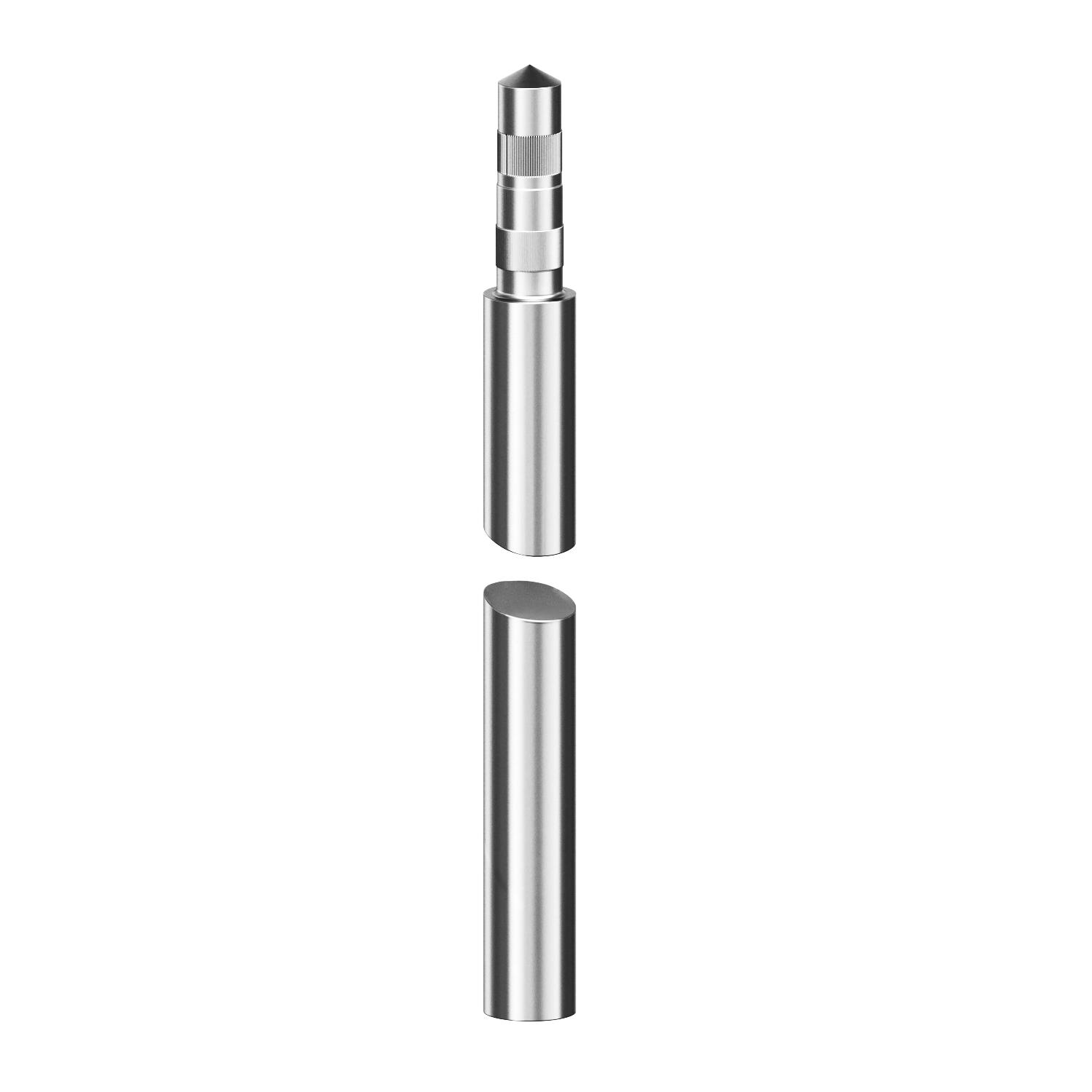

Earth rod for standard applications

Item no. 5000733 | EAN 4012197496197

16 mm
Stainless steel
Product description
Product description
• Corrosion-resistant
• With pin and hole for series mounting
• Round pin with two knurlings
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

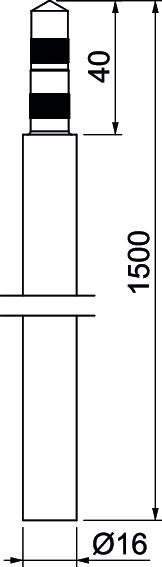

Dimension 1,5m
External diameter 16 mm
Length 1500 mm
Lightning current carrying capacity H/100 kA
Material Stainless steel
Profile type Round D=16 mm
All types

All types

Types Length External diameter Material Item no. Quantity SSU
219 16 ST V4A 1250 mm 16 mm Stainless steel 5000730
1 piece
219 16 ST V4A 1500 mm 16 mm Stainless steel 5000733
1 piece
