Earthing clip for profile rails, H foot, 1 cable

Item no. 1167096 | EAN 4012197426415

Item no. / Types	1167096 / ES-H1-M-16 A2

Clamping range D, min.	12 mm

Clamping range D, max.	16 mm

Max. Tightening torque	3 Nm

Product description

Product description

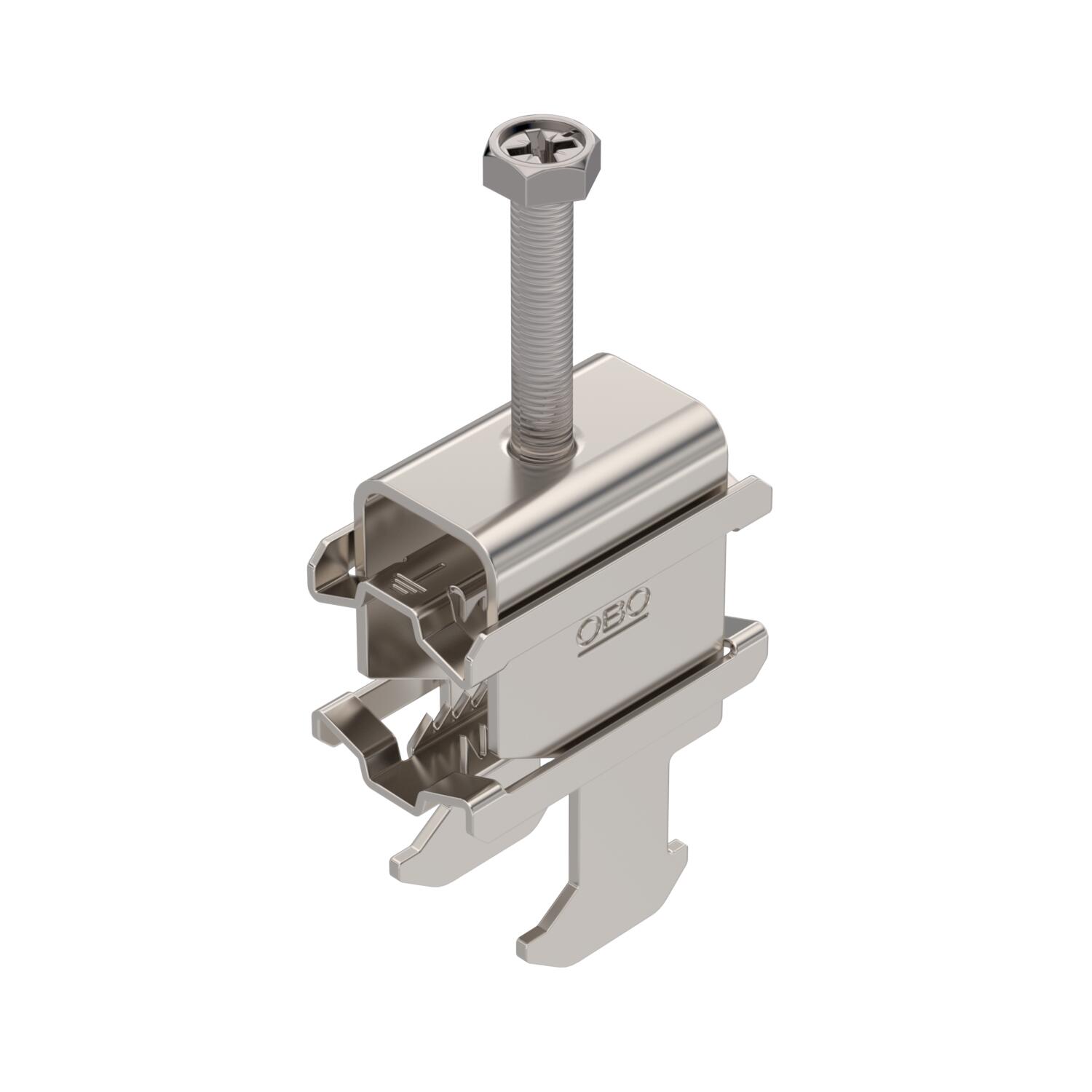

Earthing clip with hammer-head foot for the creating of electrical connection between cables and steel construction, used preferably in underground train systems. For mounting on profile rails. Suitable for 1 cable Ø 12–16 mm. Including special counter trough with teething.

Technical data

Technical data

Clamping range D, max.	16 mm
Clamping range D, min.	12 mm
Dimension	12-16 mm

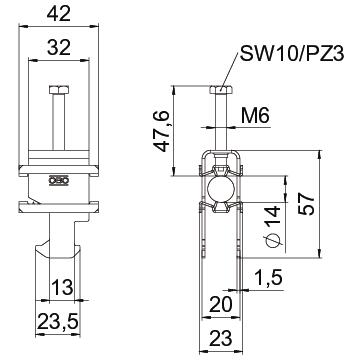

Dimension A	32 mm
Dimension B	20 mm
Dimension C	42 mm
Dimension H	57 mm
Dimension L	38 mm
Dimension t	1,5 mm
For pipe diameter, max.	16 mm
For pipe diameter, min.	12 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Height	57 mm
Length	32 mm
Length of external dimensions	42 mm

Material	Stainless steel 1.4301
Material addition	Rustproof steel
Material of counter-trough	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
Width	20 mm
With counter-trough	yes
With metal trough	yes
With plastic trough	no
