ECK 35 corner trunking, trunking width 35 2000 | 50 | 35 | Pure white; RAL 9010
morepic-1 morepic-2

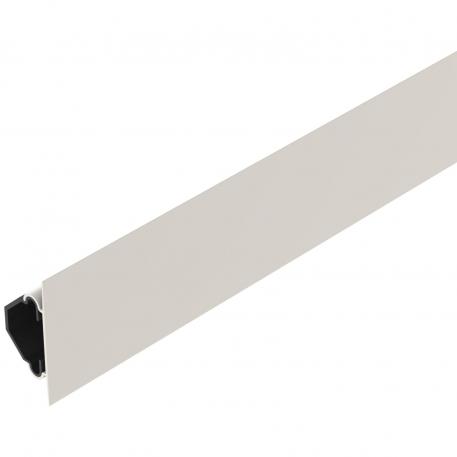

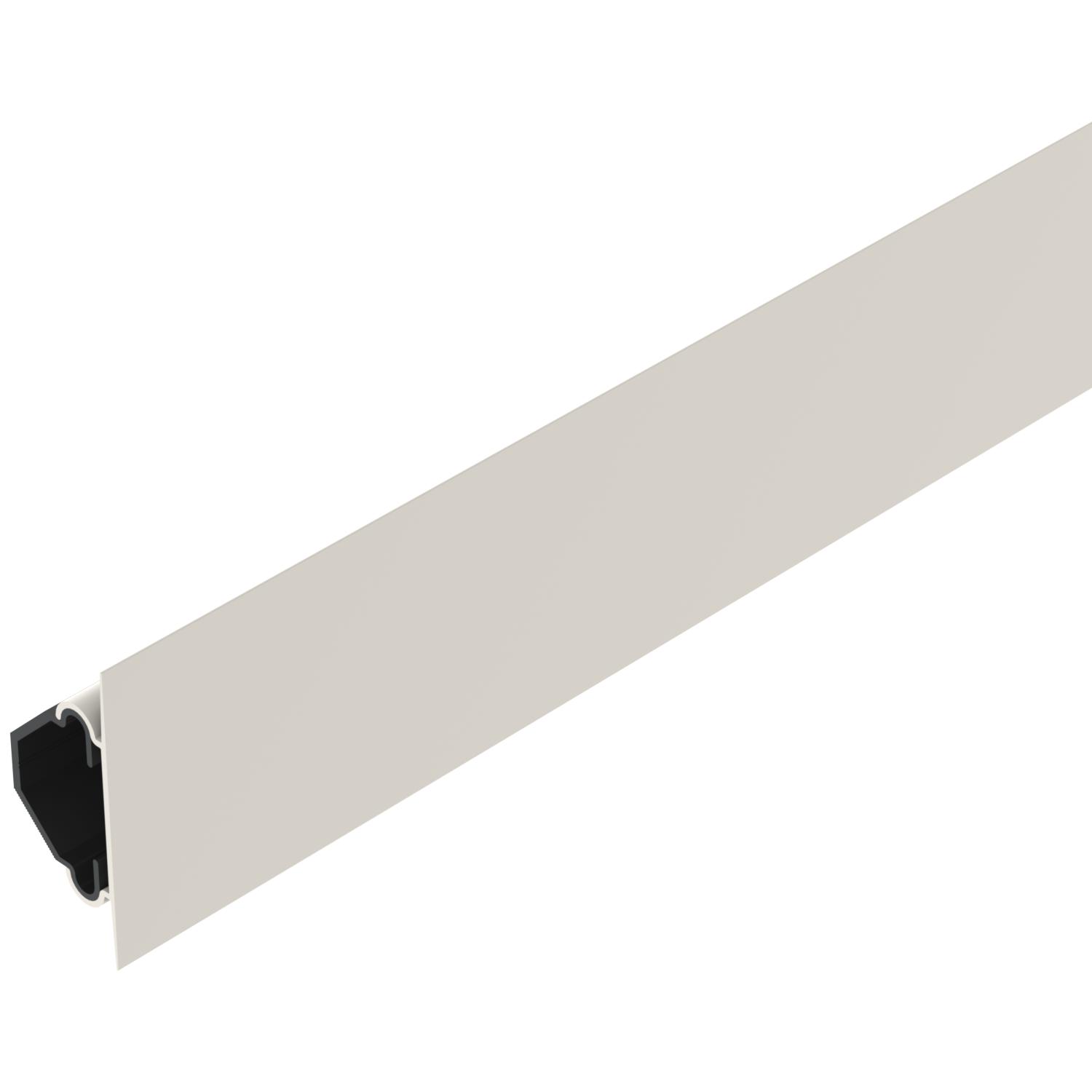

ECK 35 corner trunking, trunking width 35

Item no. 6131155 | EAN 4012196723225

2000 mm
50 mm
35 mm
Product description
Product description
Corner trunking for vertical/horizontal cable routing in indoor corner areas.

Trunking base with base perforation for direct mounting on the wall.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,4685 kg CO2e / 1 Meter
Colour Pure white; RAL 9010
Fastening type Base perforation
Halogen-free no
Height 35 mm
Length 2000 mm
Material Polyvinylchloride
Protective film no
Usable cross-section 220 mm²
Version, cable trunking cover Loose
Width 50 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
ECK 3535 cws 2000 mm 50 mm 35 mm Cream; RAL 9001 6131153
60 m
ECK 3535 rws 2000 mm 50 mm 35 mm Pure white; RAL 9010 6131155
60 m
Accessories

System accessories

Products Types Item no. Quantity SSU

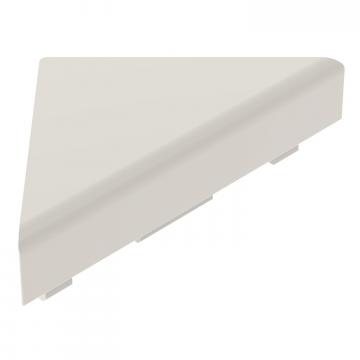

End piece TRI ES350350 End piece TRI ES350350 TRI ES350350 rws 6131179
10 piece

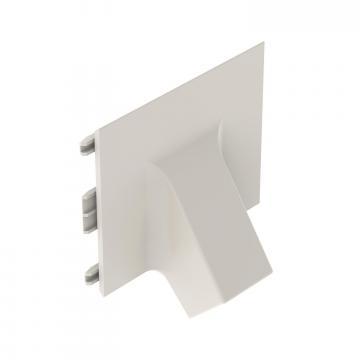

Transition piece TRI C 35-16 Transition piece TRI C 35-16 TRI C 35-16 rws 6131182
10 piece
Downloads

Download

Download
Download

EU declaration of conformity ECK 3535 rws / 6131155 , 0.10MB , pdf
Download
REACH Declaration of conformity ECK 3535 rws / 6131155 , 0.12MB , pdf
Download
RoHS Declaration of conformity ECK 3535 rws / 6131155 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
