ECK 50 corner trunking, trunking width 50 2000 | 80 | 50 | Cream; RAL 9001
morepic-1 morepic-2

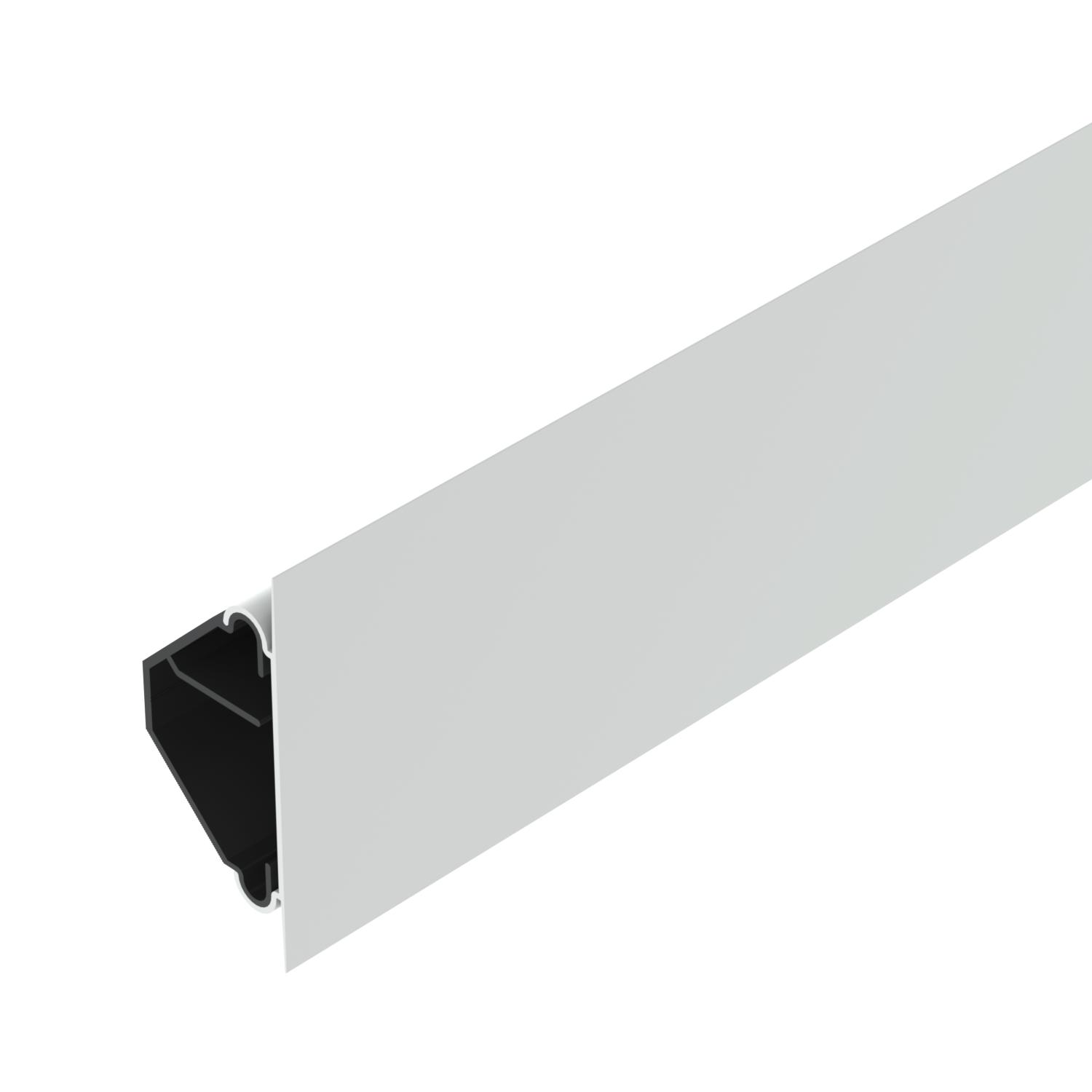

ECK 50 corner trunking, trunking width 50

Item no. 6131163 | EAN 4012196723249

2000 mm
80 mm
50 mm
Product description
Product description
Corner trunking for vertical/horizontal cable routing in indoor corner areas.

Trunking base with base perforation for direct mounting on the wall.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,9379 kg CO2e / 1 Meter
Colour Cream; RAL 9001
Fastening type Base perforation
Halogen-free no
Height 50 mm
Length 2000 mm
Material Polyvinylchloride
Number of fixed partitions 1
Protective film no
Usable cross-section 940 mm²
Version, cable trunking cover Loose
Width 80 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
ECK 5050 cws 2000 mm 80 mm 50 mm Cream; RAL 9001 6131163
30 m
ECK 5050 rws 2000 mm 80 mm 50 mm Pure white; RAL 9010 6131164
30 m
Downloads

Download

Download
Download

EU declaration of conformity ECK 5050 cws / 6131163 , 0.10MB , pdf
Download

No invitation to tender text is available for this product.
