End piece BRA ES 70110 | | | | aluminium
morepic-1 morepic-2

End piece BRA ES 70110

Item no. 6133291 | EAN 4012196735723

6133291 / BRA ES70110 EL
aluminium
Product description
Product description

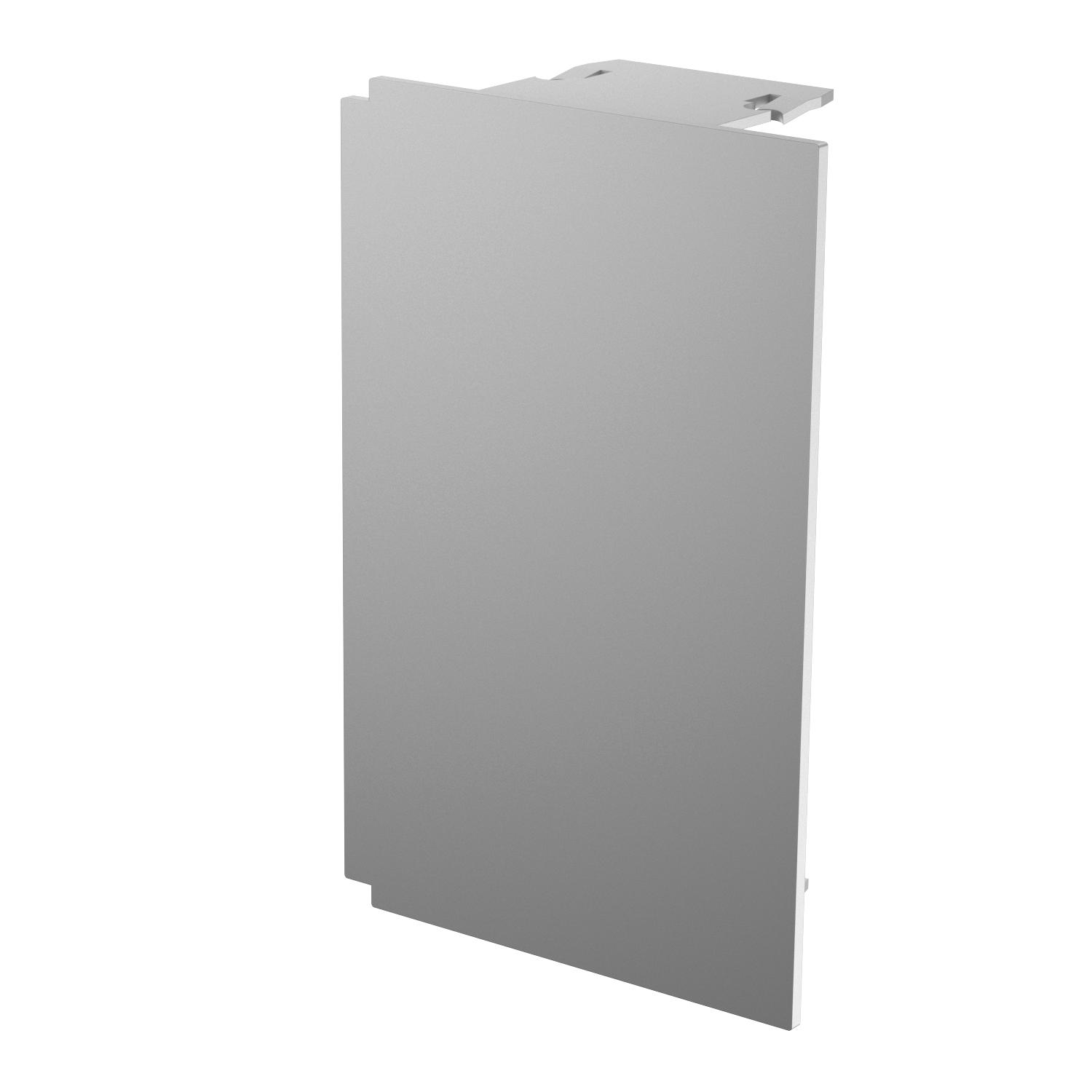

End piece as a fitting for the Signa Style device installation trunking.

For a clean end to the trunking system. For attaching to the trunking ends.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 1,7769 kg CO2e / 1 Piece
Colour aluminium
Cut lamination no

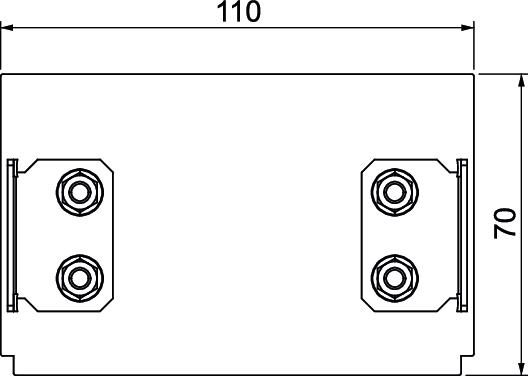

Dimension 70x110x37
Fastening type Lockable
for duct width 110 mm
for trunking height 70 mm
Halogen-free yes
Height 70 mm
Length 37 mm
Material Aluminium
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film yes
Suitable for Left/right
Surface Anodised
Version for Universal
Width 110 mm
All types

All types

Types Colour Item no. Quantity SSU
BRA ES70110 EL aluminium 6133291
1 piece
Downloads

Download

EU declaration of conformity BRA ES70110 EL / 6133291 , 0.10MB , pdf
Download
UK Declaration of Conformity BRA ES70110 EL / 6133291 , 0.09MB , pdf
Download
REACH Declaration of conformity BRA ES70110 EL / 6133291 , 0.12MB , pdf
Download
RoHS Declaration of conformity BRA ES70110 EL / 6133291 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
