Equipotential busbar for small systems 72 | 43.5 | 29 | | Grey

Equipotential busbar for small systems

Item no. 5015502 | EAN 4012195378372

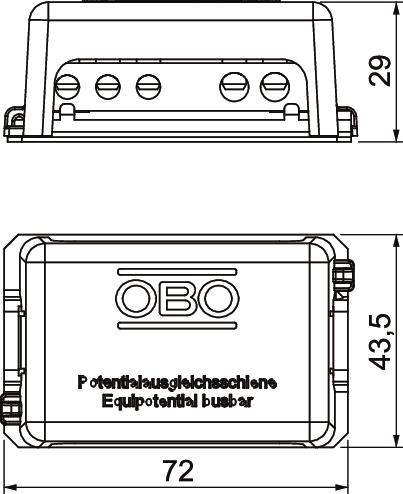

Item no. / Types	5015502 / 1809 BG

Length	72 mm

Width	43.5 mm

Height	29 mm

Colour	Grey

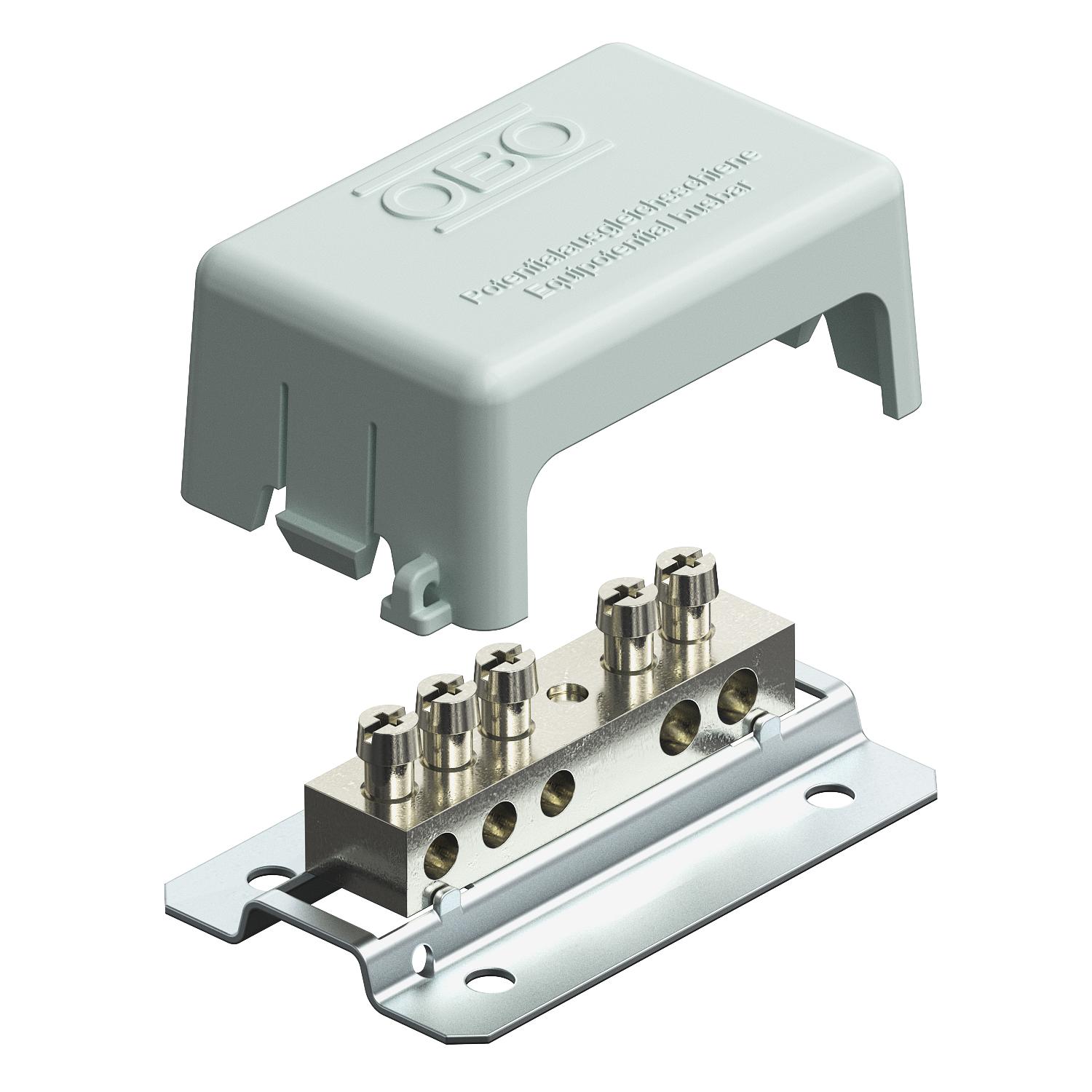

Product description

Product description

• Cover made of polystyrene, grey

• Sealable/labellable

• Base plate made of strip galvanised steel

• Contact strip and screws made of nickel-plated brass

Connection options:

• 3 x multi-core cables to 6 mm²

• 2 x multi-core cables to 16 mm²

Technical data

Technical data

Colour	Grey
Dimension	72x45mm
Insulator	no
Material	Brass
Material of the contact rail	Brass
Material of the terminal	Brass

Quantity of cable connections up to 16 mm², rigid	2
Quantity of cable connections up to 6 mm², rigid	3
Surface of the contact rail	Nickel-plated
Surface of the terminal	Nickel-plated
Type	Fixed structure
Version for	With cover hood
