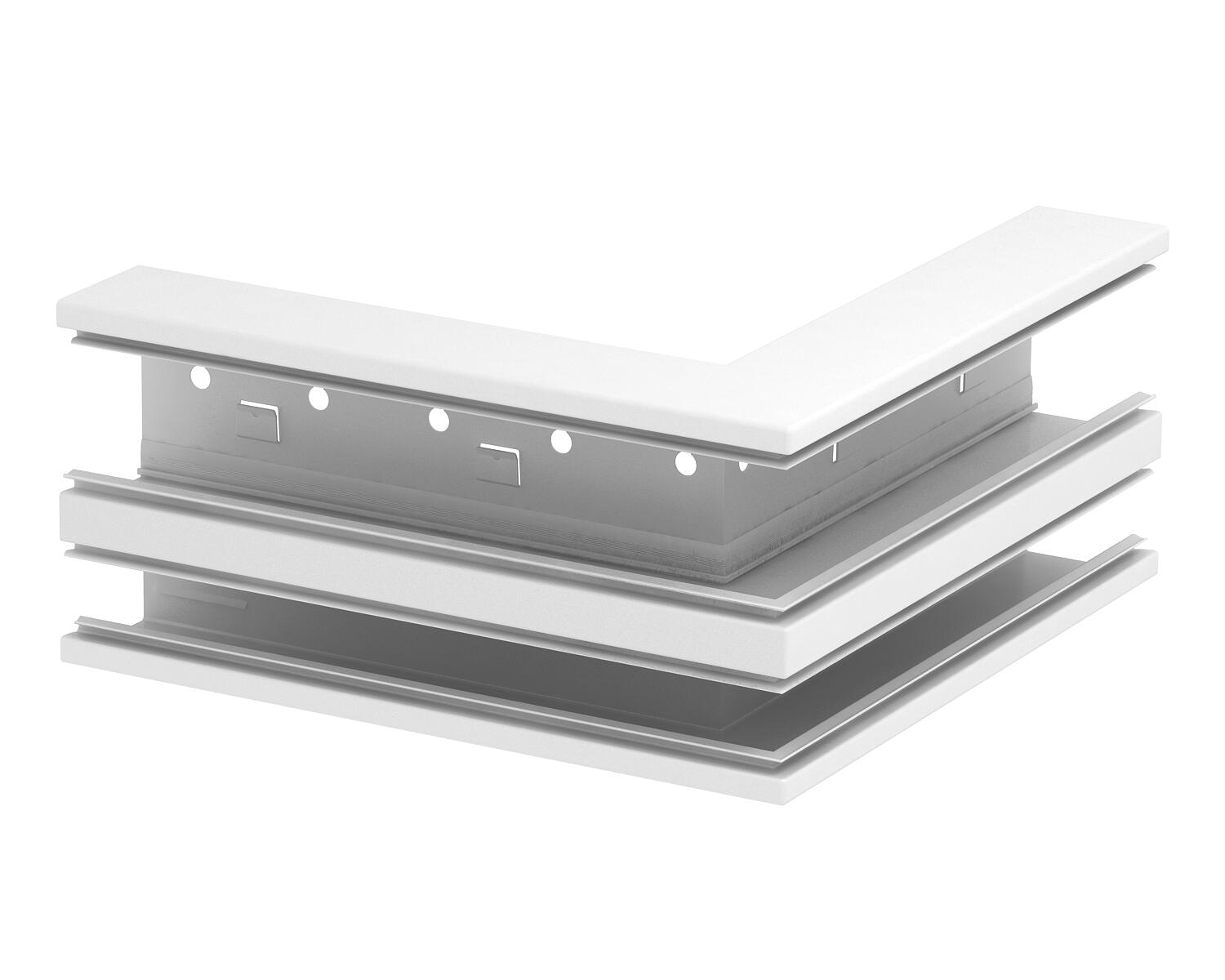

External corner, asymmetrical, double, for device installation trunking Rapid 80 type GS-D70170
Item no. 6278210 | EAN 4012195664789
- Product description
-
Product descriptionExternal corner for changing the direction of the GS device installation trunking.
-
- Technical data
-
Technical data

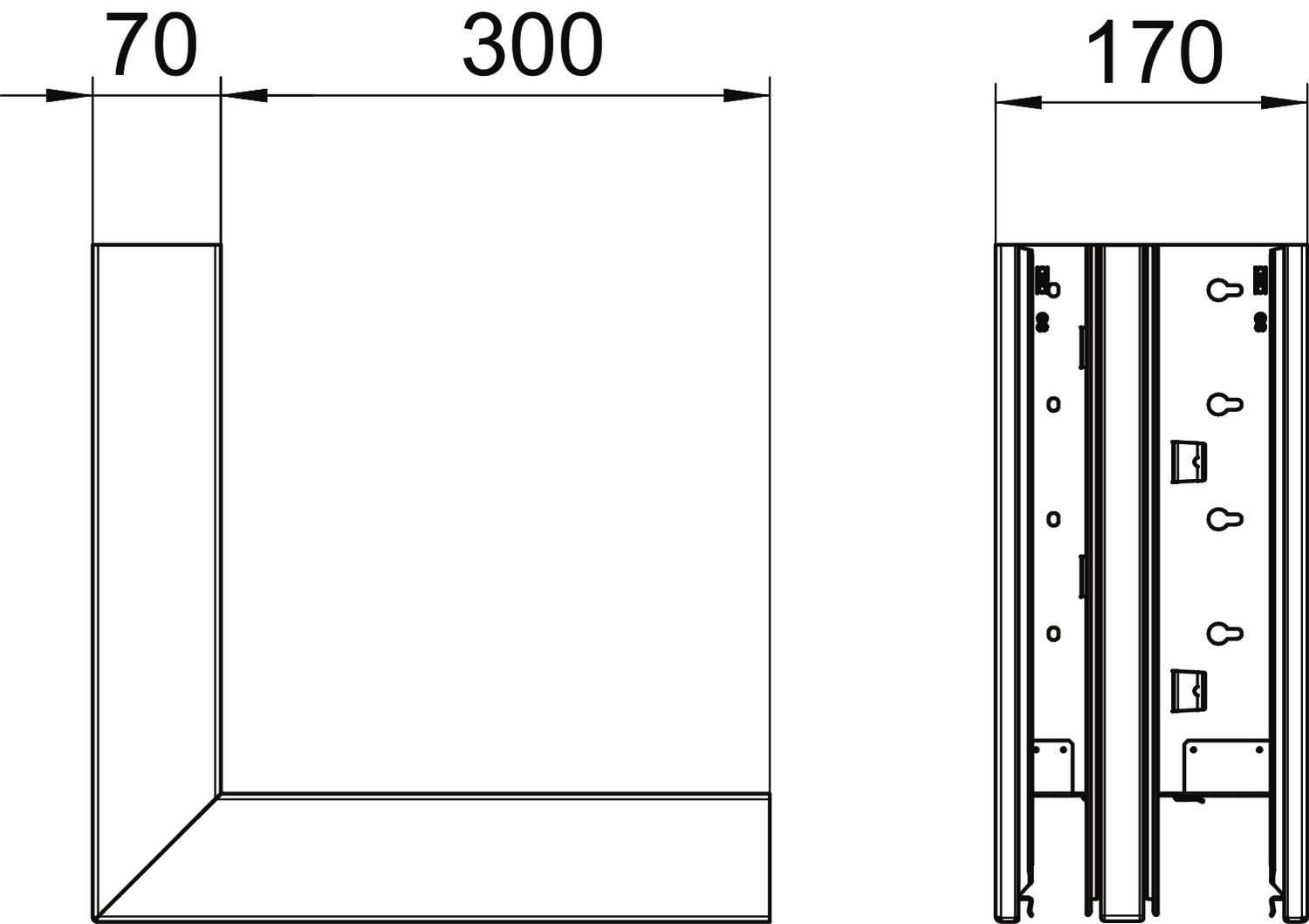

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 15,5652 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 76,5 mm Cover width 2 45 mm Dimension 70x170x300 Duct connector no for duct width 170 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 300 mm Material Steel Mounting perforation in base yes Number of covers 2 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Symmetrical no Version for Base Width 170 mm - All types
- Downloads
-
Data sheet GS-DA70170RW / 6278210 , 0.22MB , pdfEU declaration of conformity GS-DA70170RW / 6278210 , 0.11MB , pdfUK Declaration of Conformity GS-DA70170RW / 6278210 , 0.09MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
