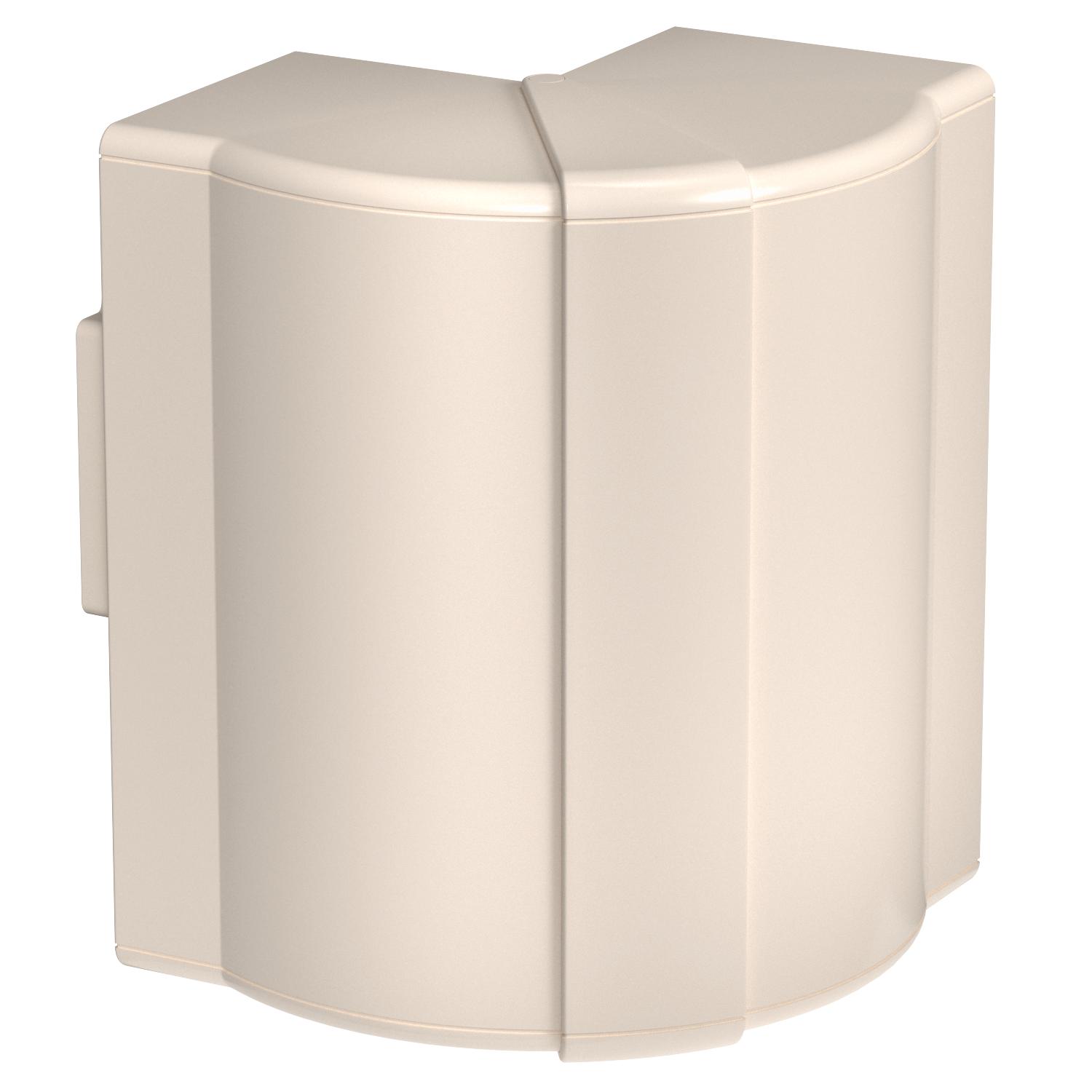

External corner cover, for device installation trunking Rapid 80 type 70170
Item no. 6274611 | EAN 4012195846918
- Product description
-
Product descriptionExternal corner cover made of halogen-free PC/ABS for changing the direction of Rapid 80 device installation trunking of the GK, GKH, GS and GA systems. The fittings can be variably adjusted between 80° and 100° and can be used in symmetrical and asymmetrical trunking.
-
- Technical data
-
Technical data

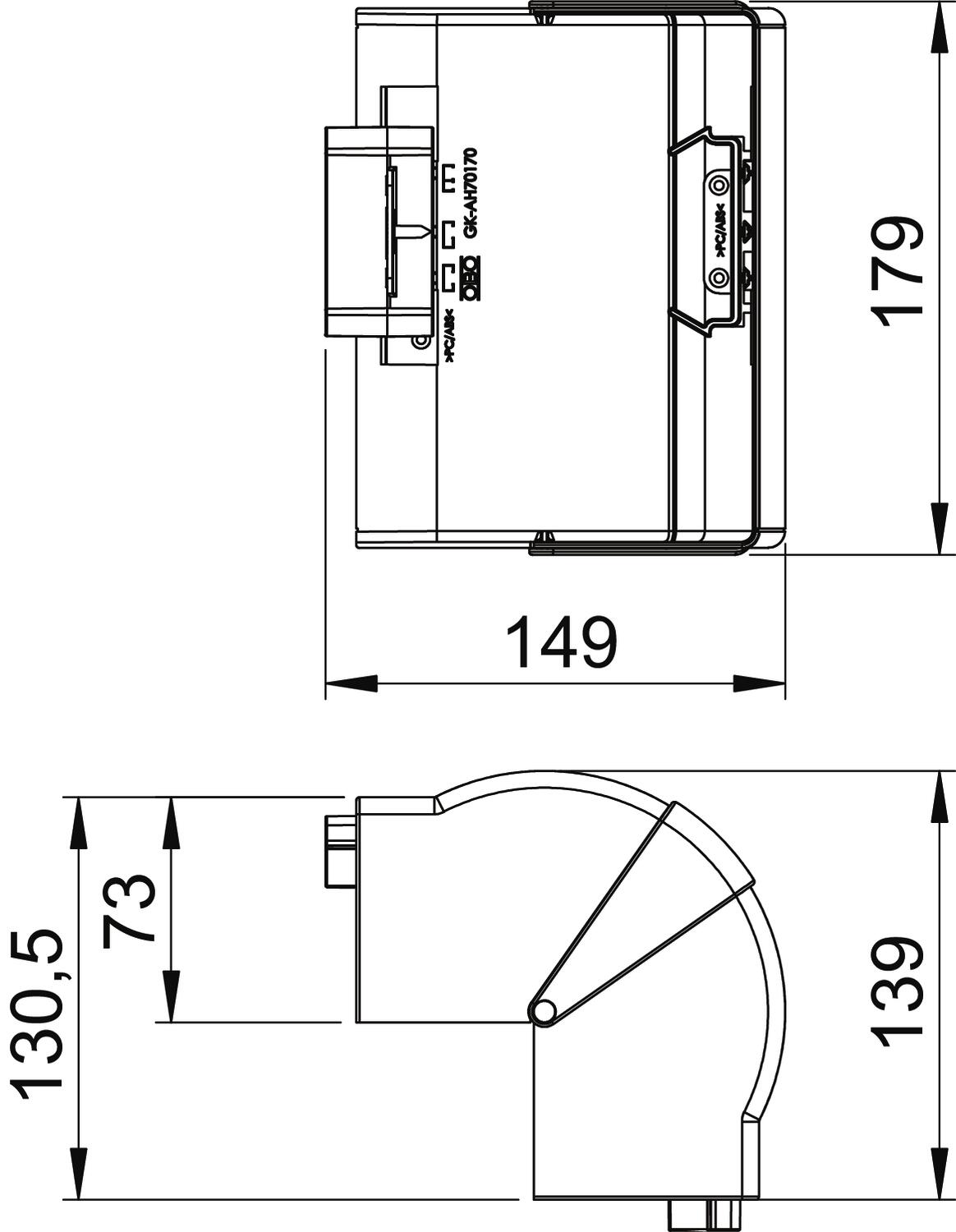

Angle range, max. 100 mm Angle range, min. 80 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 1,188 kg CO2e / 1 Piece Colour Cream; RAL 9001 Cover mounting type Cross-over Dimension 70x170mm Duct connector no for duct width 170 mm for trunking height 70 mm Halogen-free yes Height 73 mm Length 130,5 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film no Symmetrical yes Version for Hood fitting Width 179 mm - All types
- Downloads
-
Data sheet GK-AH70170CW / 6274611 , 0.23MB , pdfSafety data sheet GK-AH70170CW / 6274611 , 0.02MB , pdfEU declaration of conformity GK-AH70170CW / 6274611 , 0.11MB , pdfUK Declaration of Conformity GK-AH70170CW / 6274611 , 0.09MB , pdfREACH Declaration of conformity GK-AH70170CW / 6274611 , 0.12MB , pdfRoHS Declaration of conformity GK-AH70170CW / 6274611 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
