External corner, for cable trunking type LKM 80080

Item no. / Types

Trunking depth	80 mm

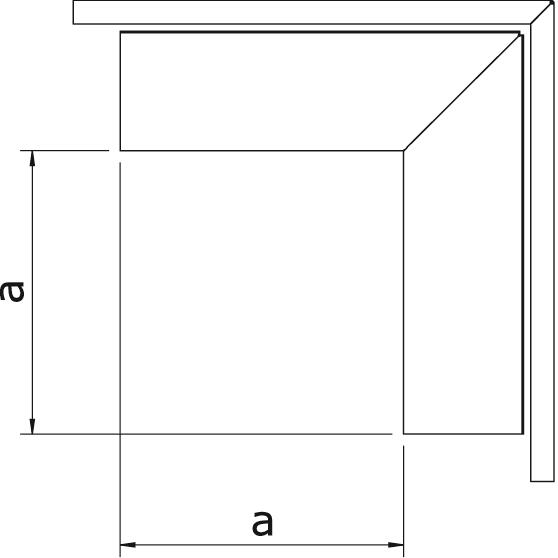

Dimension a	120 mm

Colour

Product description

Product description

External corner including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover

Technical data

Angle range, max.	90 mm
Angle range, min.	90 mm
Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	3,2559 kg CO2e / 1 Piece
Colour	zinc
Dimension	80x80mm
Dimension a	120 mm
Duct height, min.	80 mm
Fastening type	Base perforation
for duct dimension	80 x 80
Halogen-free	yes
Height	80 mm
Length	200 mm

Maintain electrical functions	no
Material	Steel
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Self-extinguishing	no
Surface	Strip galvanised
Trunking depth	80 mm
Version for	Base and cover
Width	80 mm
