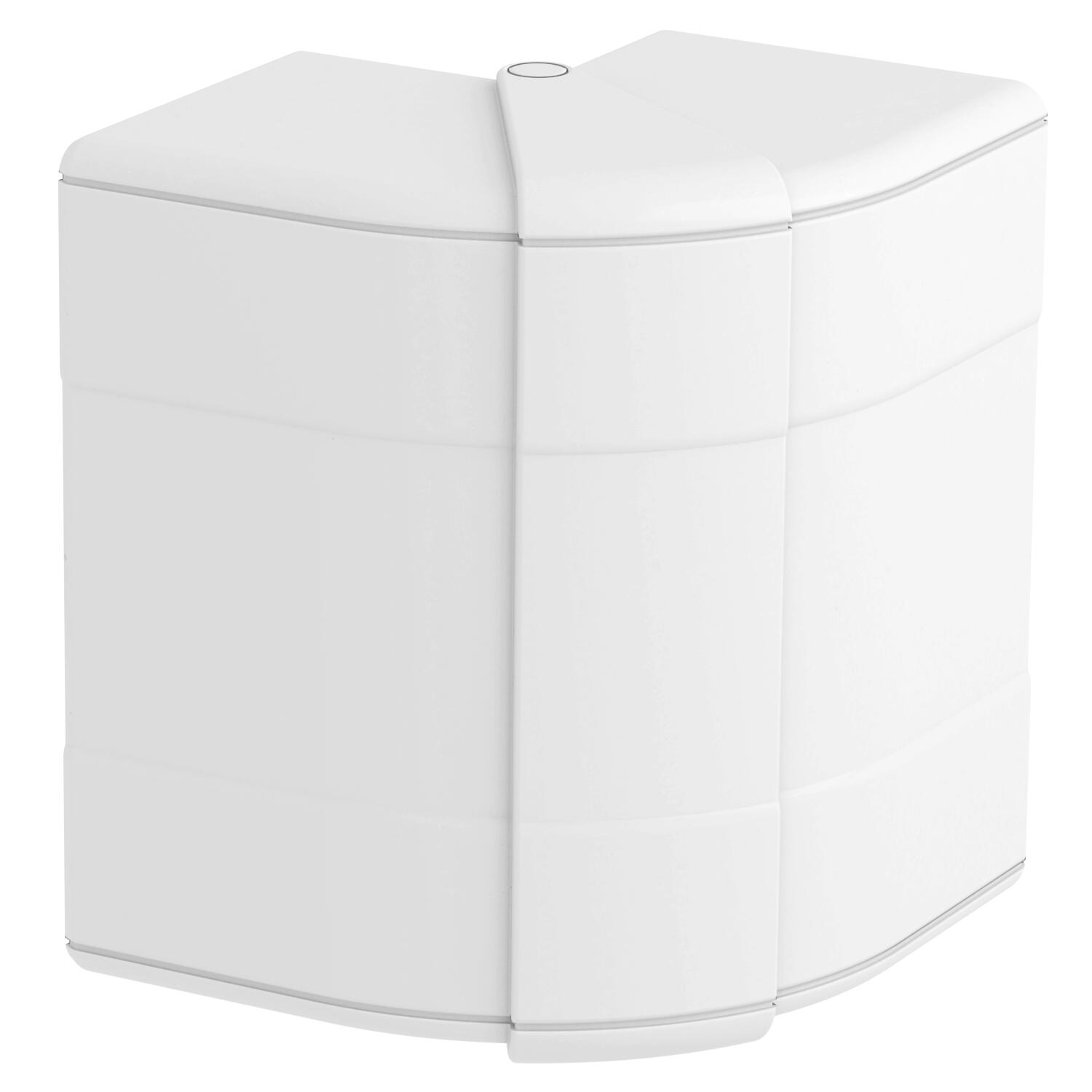

External corner hood, for device installation trunking Rapid 45-2 type GK-53100

Item no. / Types

Colour

Product description

Product description

External corner for changing the direction of Rapid 45-2 device installation trunking. The fittings can be adjusted between 80‒110°.

Technical data

Angle range, max.	110 mm
Angle range, min.	80 mm
Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,595 kg CO2e / 1 Piece
Colour	Pure white; RAL 9010
Cover mounting type	Cross-over

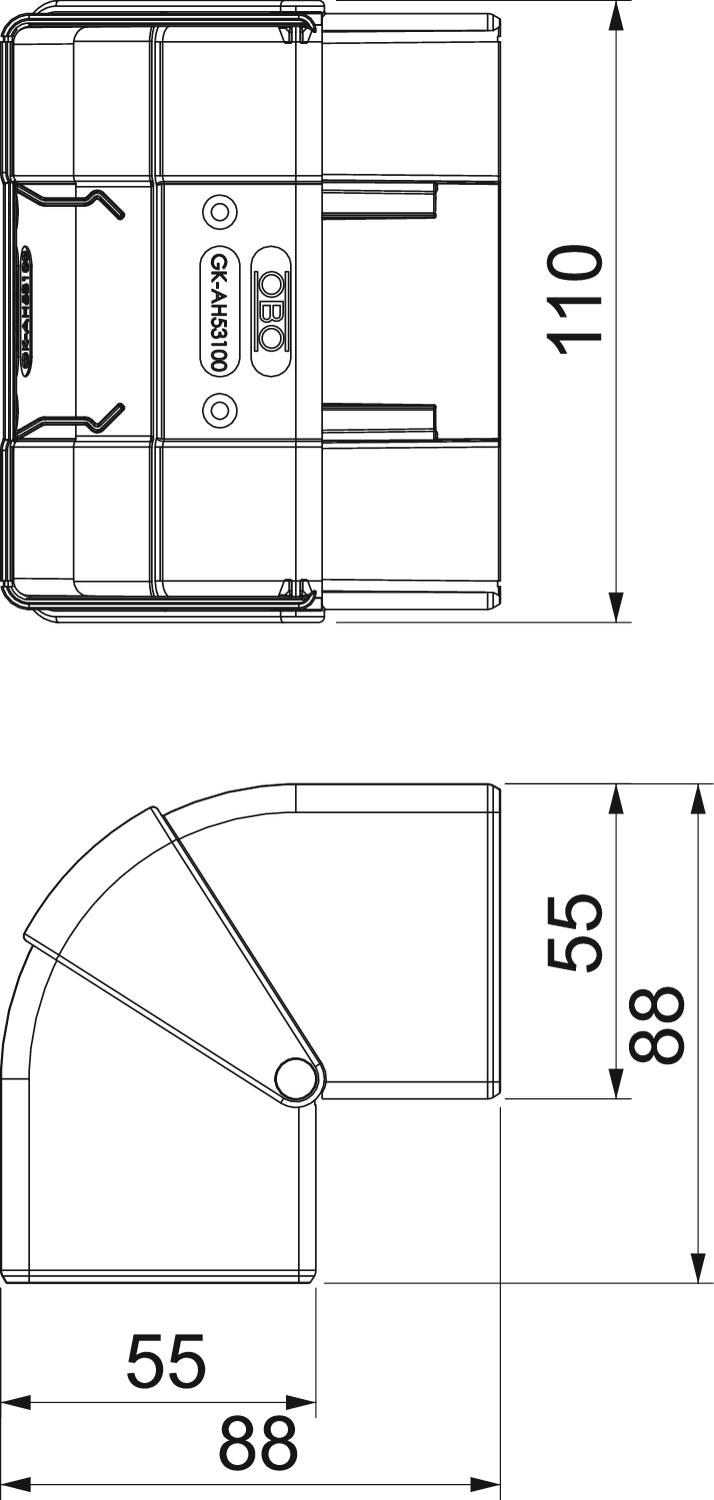

Dimension	110x88x88
Duct connector	no
for duct width	100 mm
for trunking height	53 mm
Halogen-free	yes
Height	55 mm

Length	88 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Number of covers	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP40
Protection rating IK code	IK08
Protective film	no
Symmetrical	yes
Version for	Hood fitting
Width	110 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
GK-AH53100RW	Pure white; RAL 9010	6113050	piece	1 piece
GK-AH53100LGR	Light grey; RAL 7035	6113052	piece	1 piece
GK-AH53100SW	Jet black; RAL 9005	6113053	piece	1 piece
GK-AH53100AL	aluminium	6113054	piece	1 piece
