Fastening clip 1015, for direct fastening
Item no. 1009509 | EAN 4012197334192
- Product description
-

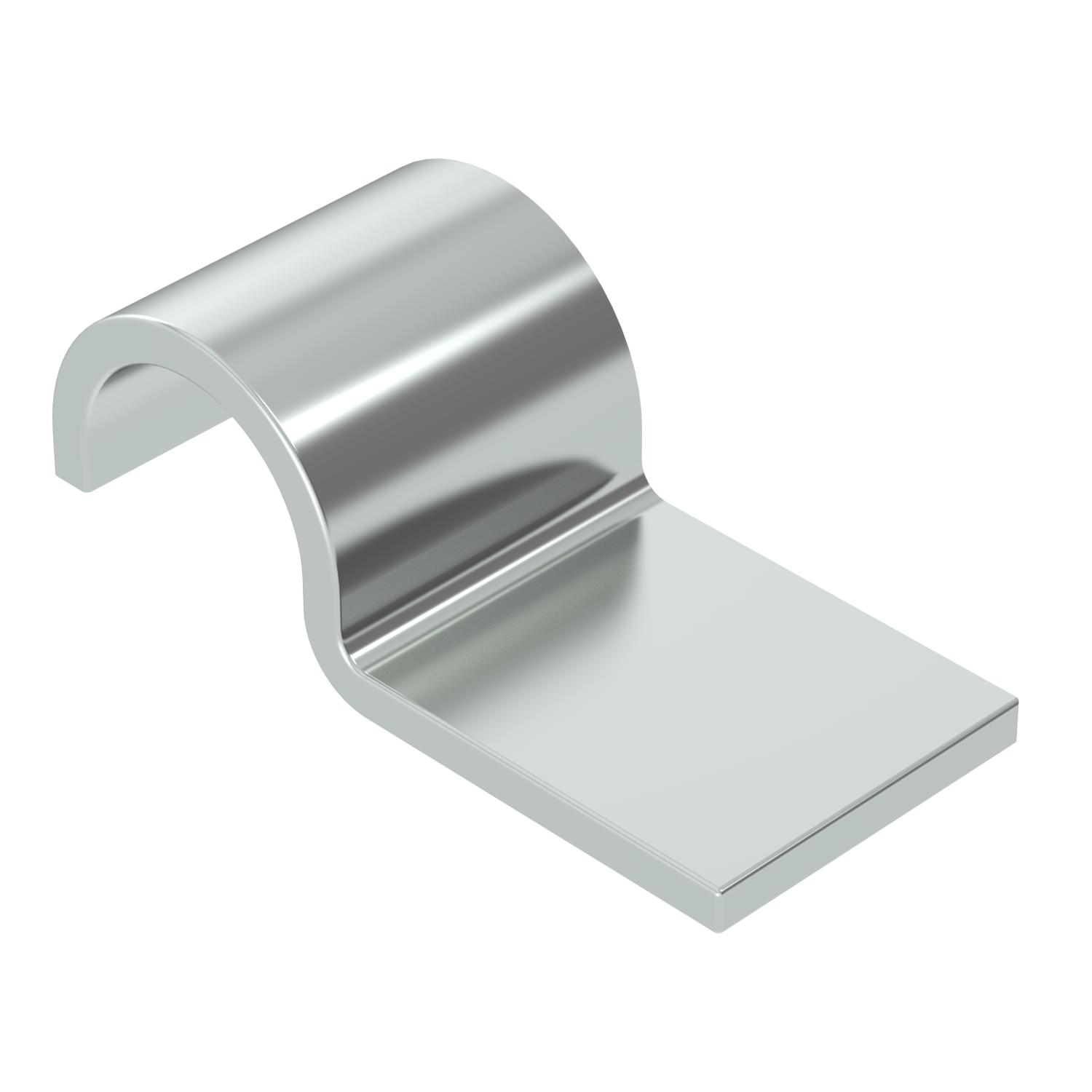

Product descriptionSingle-lobe fastening clip for cables and pipes.
-
- Technical data
-
Technical data

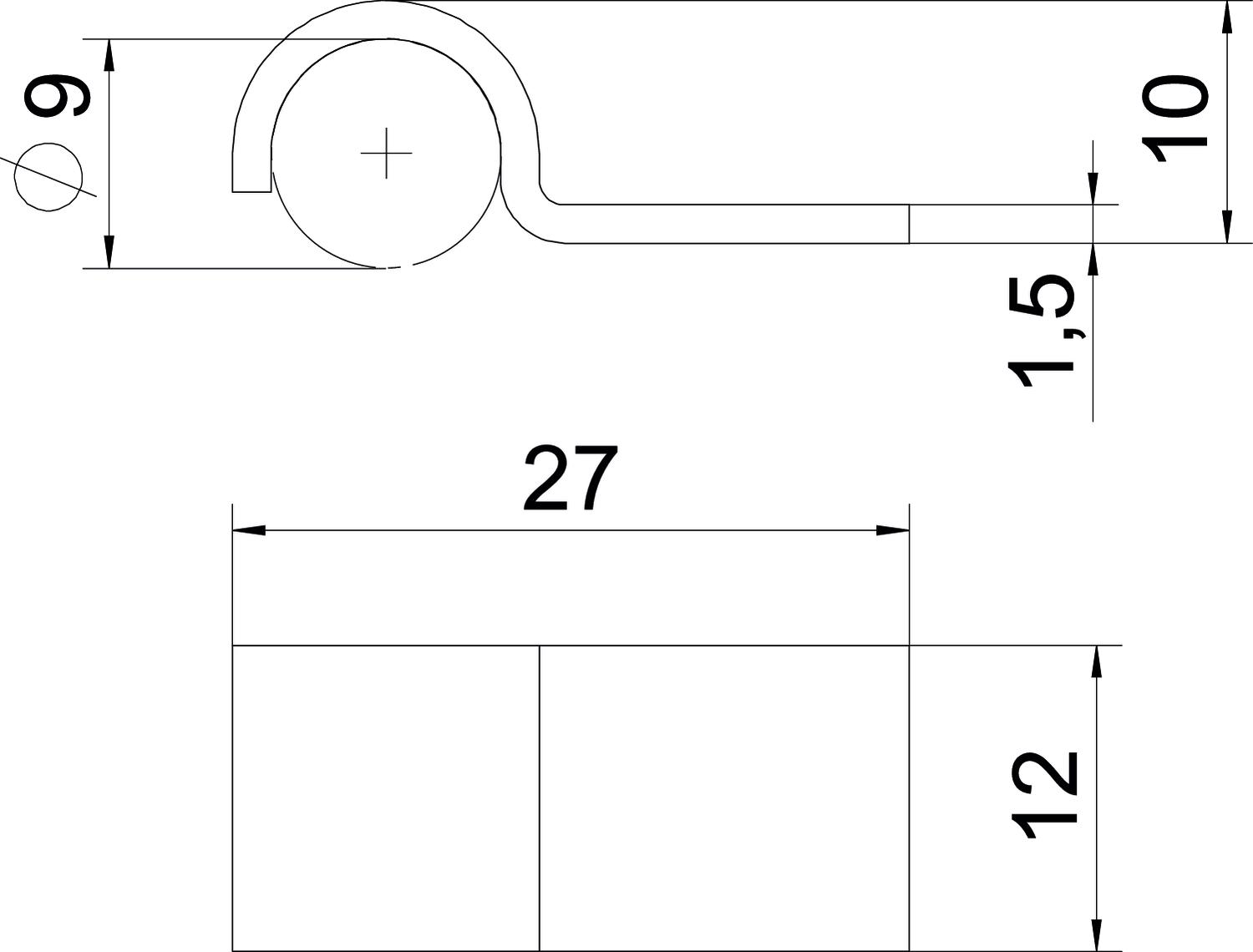

CO2 Footprint (GWP) Cradle-to-Gate 0,0101 kg CO2e / 1 Piece Dimension 9mm Dimension B 12 mm Dimension L 16 mm Distance to the wall no Fastening type Miscellaneous For diameter 9 Halogen-free yes Height 9,5 mm Length 26,5 mm Material Steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Electrogalvanized UV-resistant yes Version for Single-lobe Width 12 mm - All types
- Downloads
-
Data sheet 1015 9 OL G / 1009509 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 1015 9 OL G / 1009509 , 0.10MB , pdfUK Declaration of Conformity 1015 9 OL G / 1009509 , 0.09MB , pdfREACH Declaration of conformity 1015 9 OL G / 1009509 , 0.12MB , pdfRoHS Declaration of conformity 1015 9 OL G / 1009509 , 0.13MB , pdf
