Fastening clip 1015, medium-duty
Item no. 1009036 | EAN 4012195007517
- Product description
-

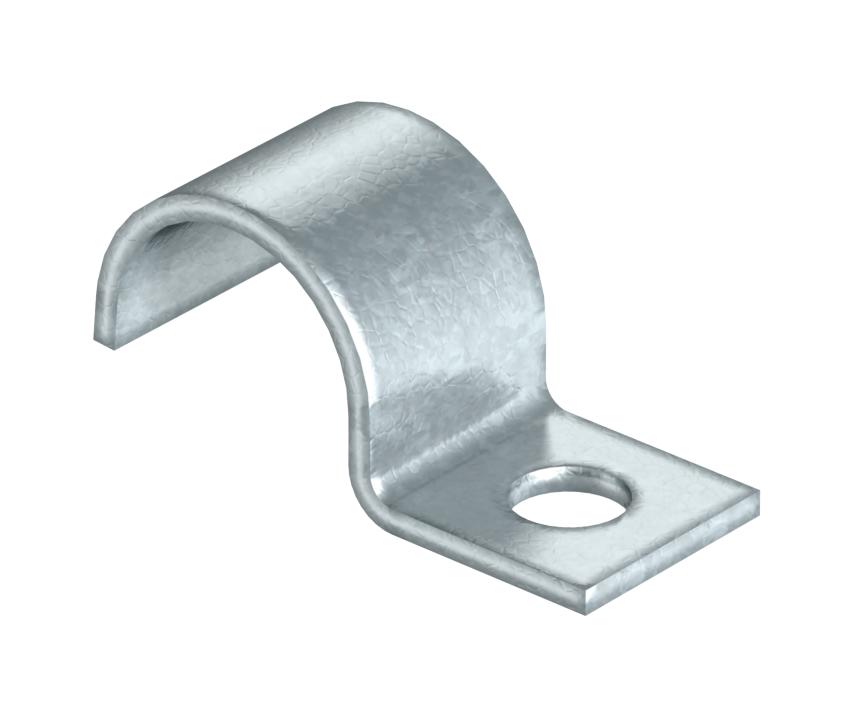

Product descriptionSingle-lobe fastening clip for cables and pipes.
-
- Technical data
-
Technical data
Dimension 6mm Distance to the wall no Fastening type Screw hole For diameter 6 Halogen-free yes Hole size 6,5 Maintain electrical functions yes Material Steel Material thickness 1,5 mm Nominal diameter 6 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Electrogalvanised UV-resistant yes Version for Single-lobe Dimensions

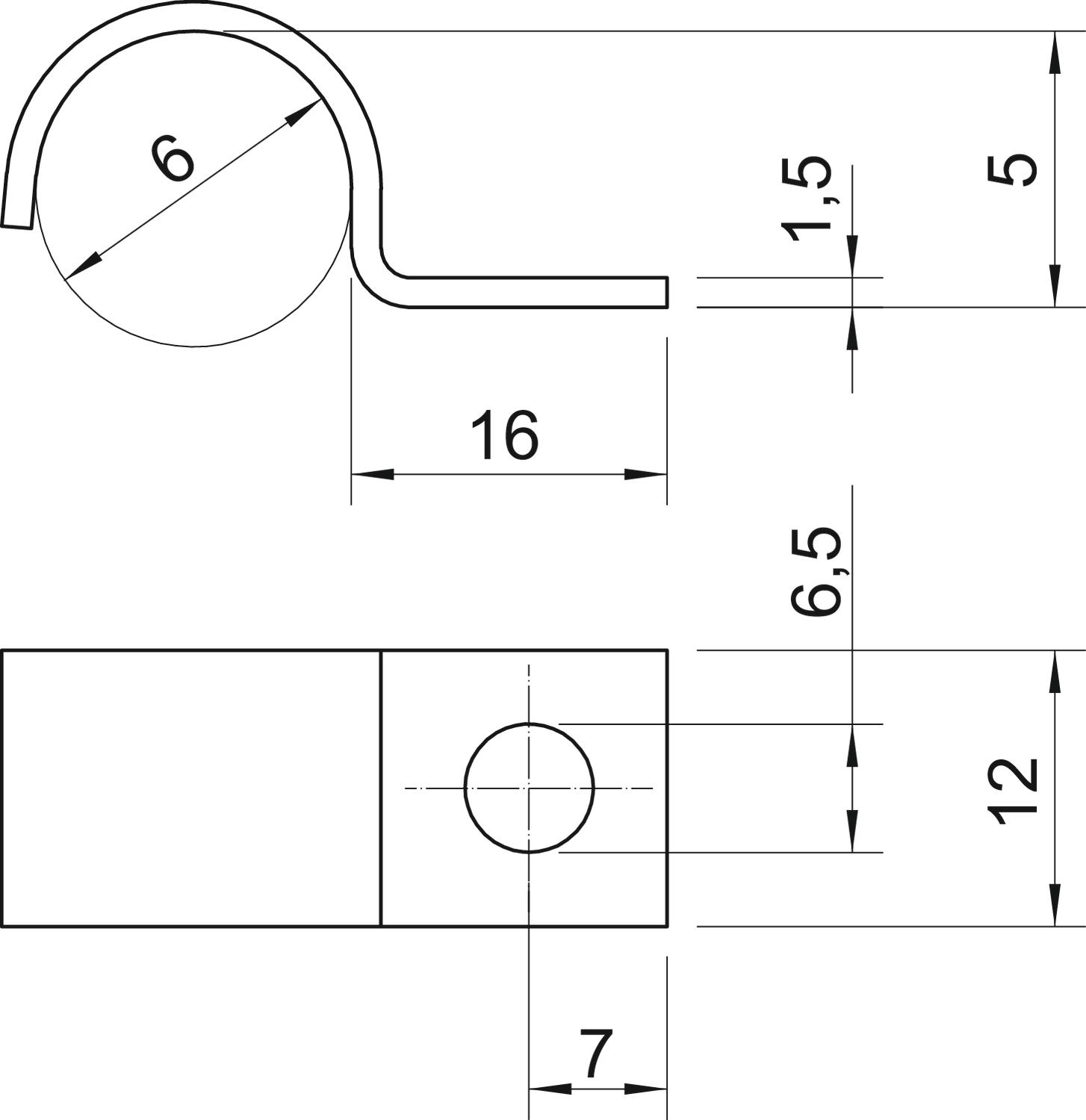

Dimension A 7 mm Dimension b 12 mm Dimension D 6 mm Dimension H 5 mm Dimension L 16 mm Height 5 mm Length 16 mm Width 12 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0081 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0081 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 1015 6 G / 1009036 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 1015 6 G / 1009036 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 1015 6 G / 1009036 , 0.09MB , pdfREACH Declaration of conformity 1015 6 G / 1009036 , 0.12MB , pdfRoHS Declaration of conformity 1015 6 G / 1009036 , 0.13MB , pdf
