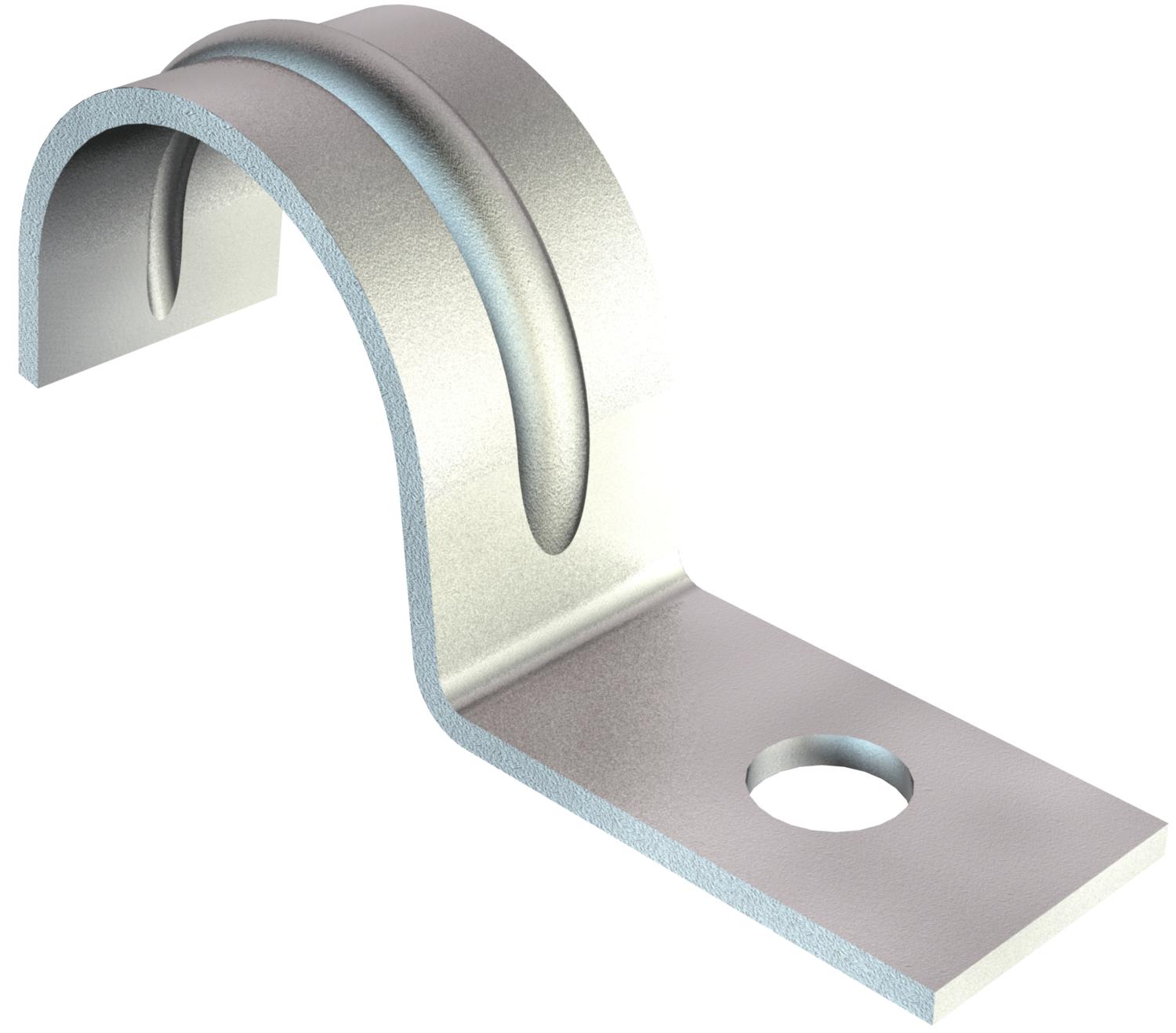

Fastening clip 1015 RB
Item no. 1010794 | EAN 4012195850090
- Product description
-
Product descriptionFor fastening of rigid and bending plastic pipes on concrete substrates using knock-in anchors 903/RB and flatteners with hand protection 915/RB.
-
- Technical data
-
Technical data

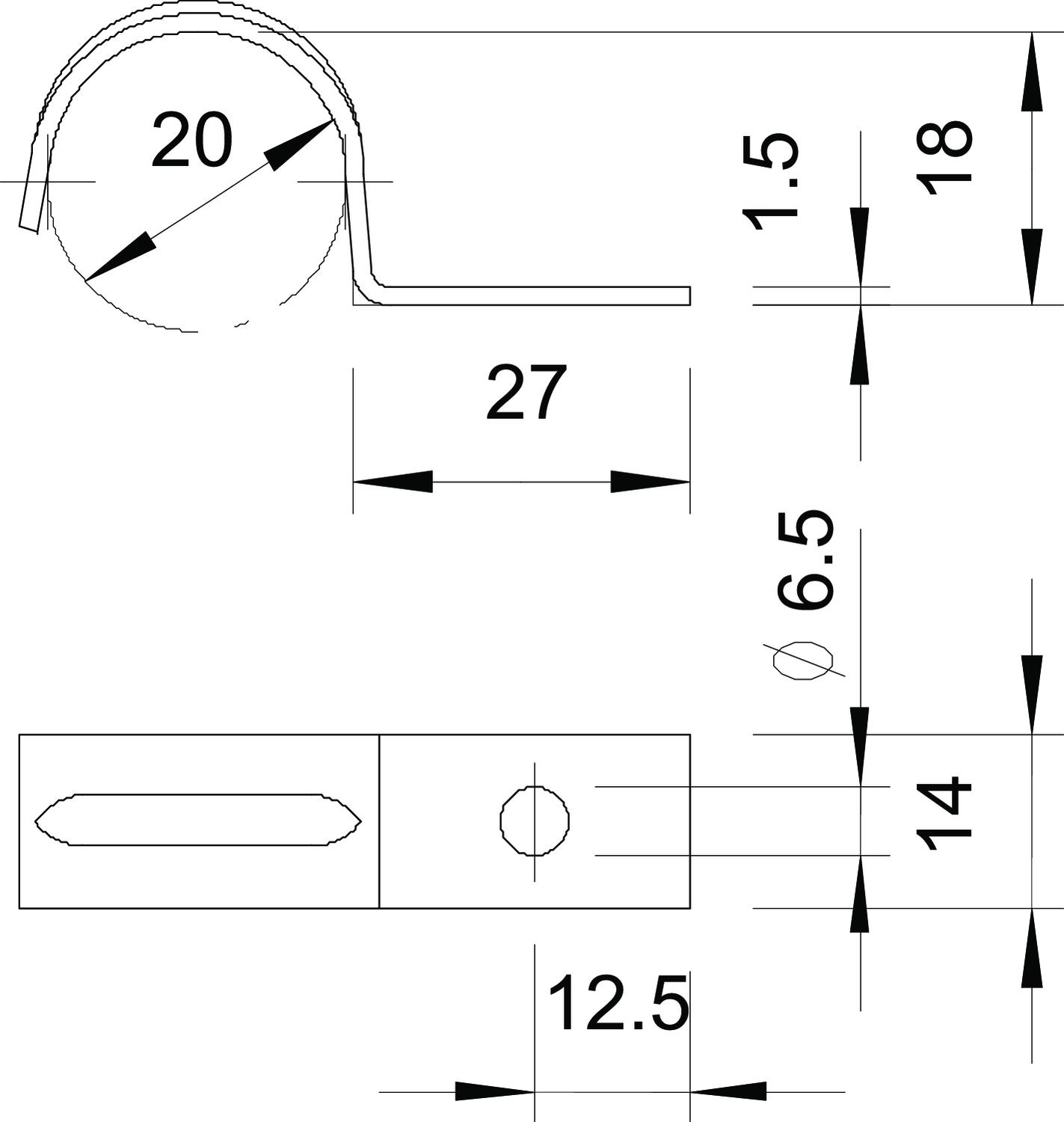

CO2 Footprint (GWP) Cradle-to-Gate 0,018 kg CO2e / 1 Piece Dimension 20mm Dimension D 20 mm Dimension H 18 mm Distance to the wall no Fastening type Screw hole For diameter 20 Halogen-free yes Hole size 6,5 mm Material Steel Material thickness 1,5 mm Nominal diameter 20 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Single-lobe - All types
- Downloads
-
Data sheet 1015 RB 20 G / 1010794 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 1015 RB 20 G / 1010794 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 1015 RB 20 G / 1010794 , 0.09MB , pdfREACH Declaration of conformity 1015 RB 20 G / 1010794 , 0.12MB , pdfRoHS Declaration of conformity 1015 RB 20 G / 1010794 , 0.13MB , pdf
