Fastening clip 824 VA
Item no. 1016555 | EAN 4012195472452
- Product description
-

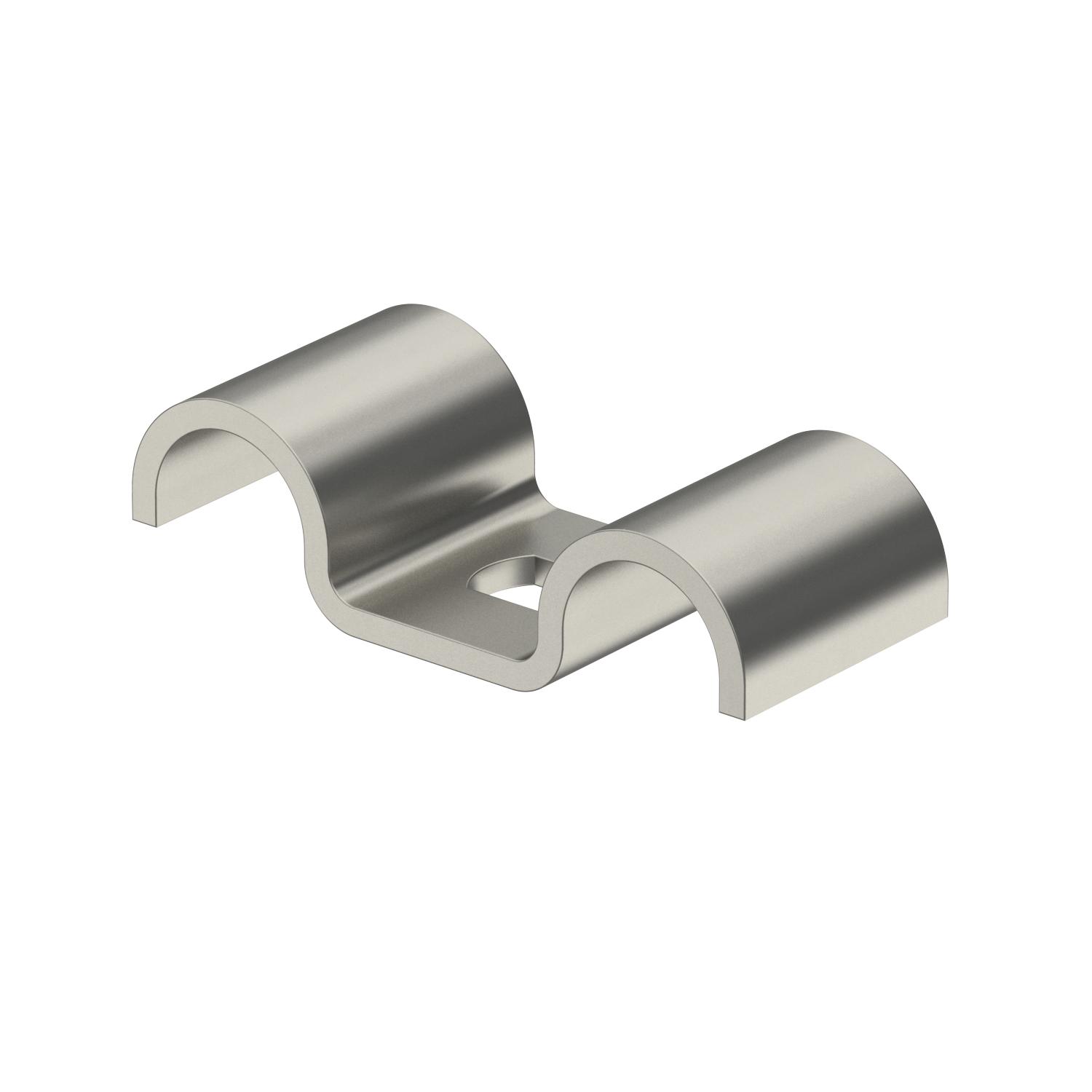

Product descriptionFastening clip for 2 cables with central strap
-
- Technical data
-
Technical data

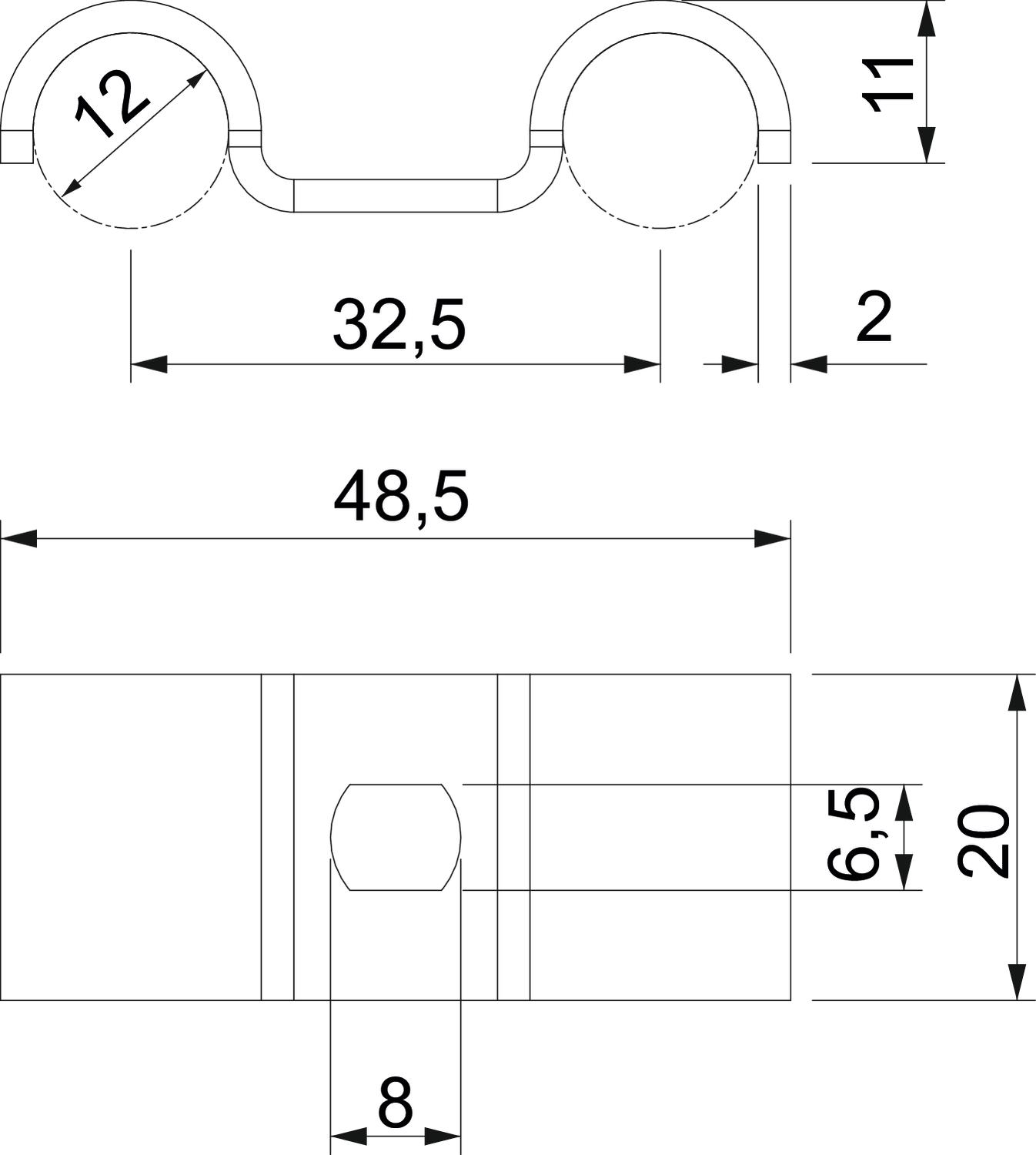

CO2 Footprint (GWP) Cradle-to-Gate 0,0992 kg CO2e / 1 Piece Dimension 12mm Dimension A 48,5 mm Dimension b 20 mm Dimension D 12 mm Dimension d 6,5 mm Dimension e 8 mm Dimension L 16 mm Dimension t 2 mm Distance to the wall no For diameter 12 Halogen-free yes Height 11 mm Material Stainless steel 1.4301 Plastic-covered no Suitable in fire protection area no Surface Bright, treated UV-resistant yes - All types
- Downloads
-
Data sheet 824 12 A2 / 1016555 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 824 12 A2 / 1016555 , 0.12MB , pdfRoHS Declaration of conformity 824 12 A2 / 1016555 , 0.13MB , pdf
