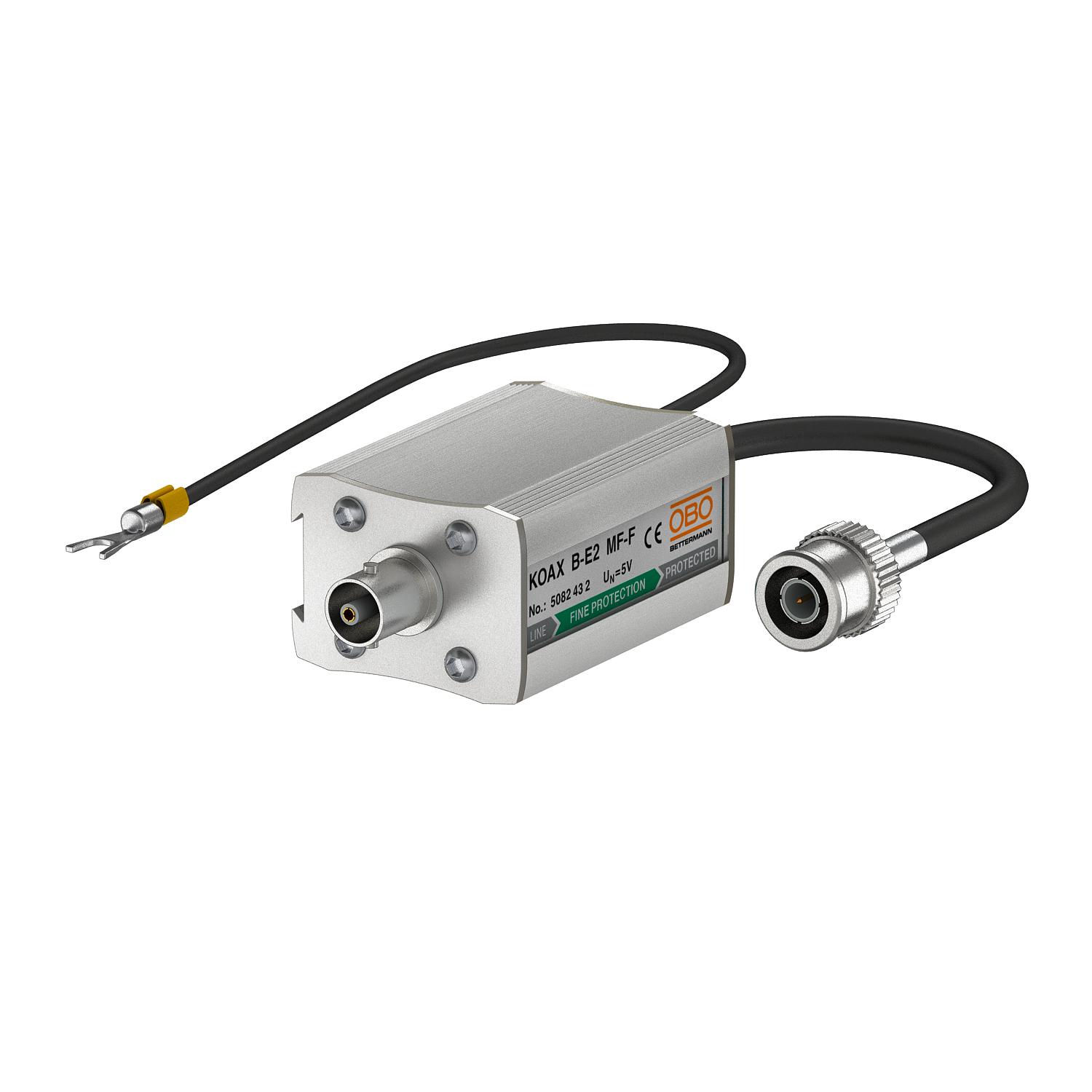

Fine protection for 10Base2-/10Base5 networks

Item no. 5082432 | EAN 4012196415724

1
6
BNC
Product description

Product description

Data line protection device for coaxial Ethernet network systems


• In aluminium housing

• BNC connector m/f

• Simple mounting with adapter plug

• Two-stage protection circuit

• DIN rail mounting with DLS-BS accessories (5082 38 2)


Application: Protecting video signals; cameras and/or CCTV units, Cheapernet, 10BASE2, 10BASE5
• In aluminium housing
• BNC connector for Cheapernet, 10BASE2
• Simple mounting with adapter connector
• Two-stage protection circuit
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 1 to LPZ 3
  • Installation electrotechnical expertise

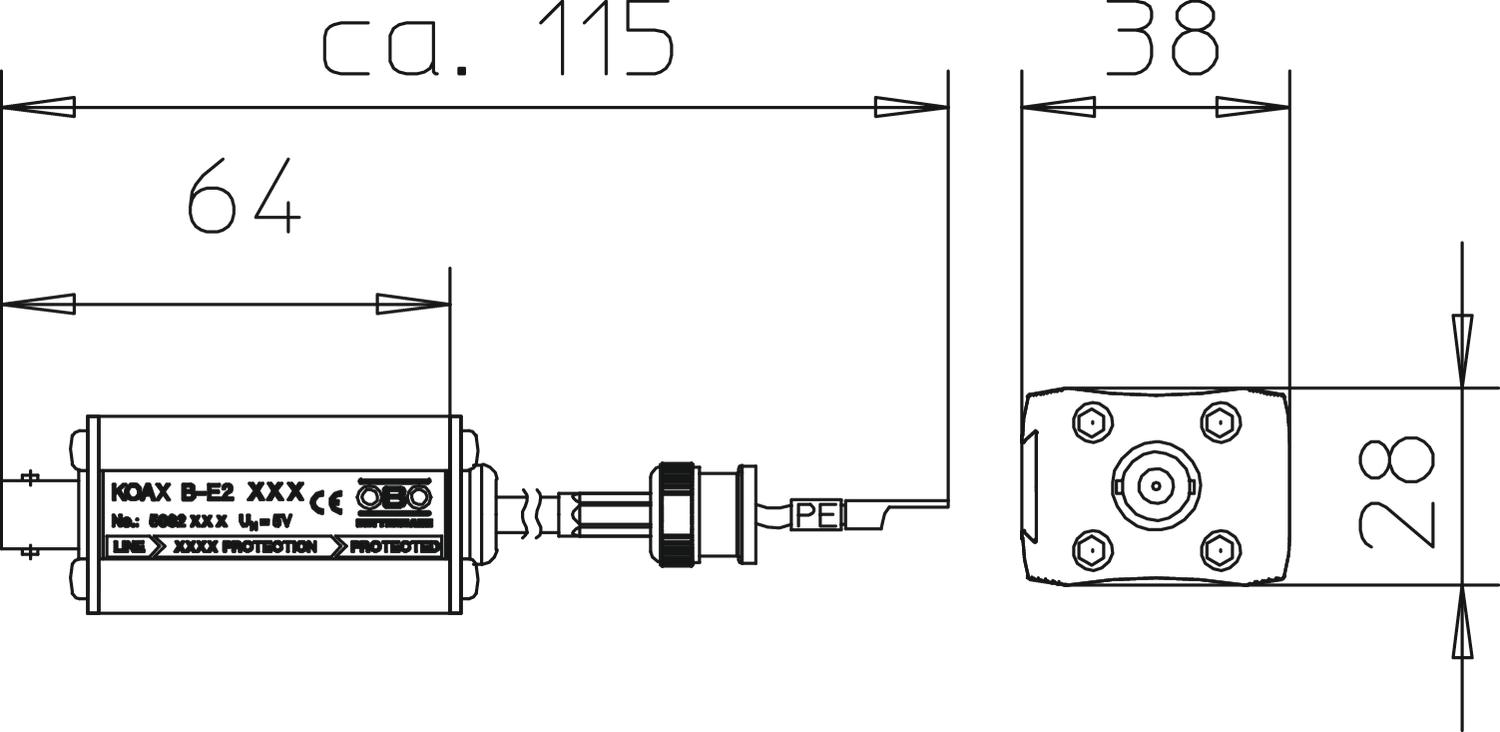

Technical data

Technical data

Cable type for surge protection devices Data cable COAX
Capacity (wire-earth) <100 pF
Capacity (wire-wire) <100 pF
Cut-off frequency 70 MHz
Dimension 6.2V
Earthing via: Connection cable
Impulse durability wire-earth C2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wire C1: 1 kV / 0,5 kA (8/20µs)
Insertion loss ≤1 dB
Insulation resistance >1 GΩ
Kategorie Type 2+3 / C2+C1
Lightning protection zone LPZ 1→3
Maximum continuous voltage AC 4,2
Maximum continuous voltage DC 6
Nominal load current AC 0,7
Nominal load current DC 1 A
Number of poles 1
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -20 °C
Plug-in system BNC
Protection level wire-earth <600 V
Protection level wire-wire <40 V
Protection rating IP40
Return loss ≥14
Screening Direct
Shielding connection available yes
Signalling on device Without
SPD to IEC 61643-21 Class II+III / C2+C1
Testing standard IEC 61643-21
Total discharge current (8/20) 10 kA
Version for Fine protection
Wave resistance 75 Ω
All types

All types

Types Number of poles Version for Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
KOAX B-E2 MF-C 1 Combi protection 6 BNC 5082430
1 piece
KOAX B-E2 MF-F 1 Fine protection 6 BNC 5082432
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Fastening set for DIN profile rail Fastening set for DIN profile rail DLS-BS 5082382
1 piece
