Flat angle, duct height 120 mm, FS
Item no. 7218071 | EAN 4012197459529
- Product description
-

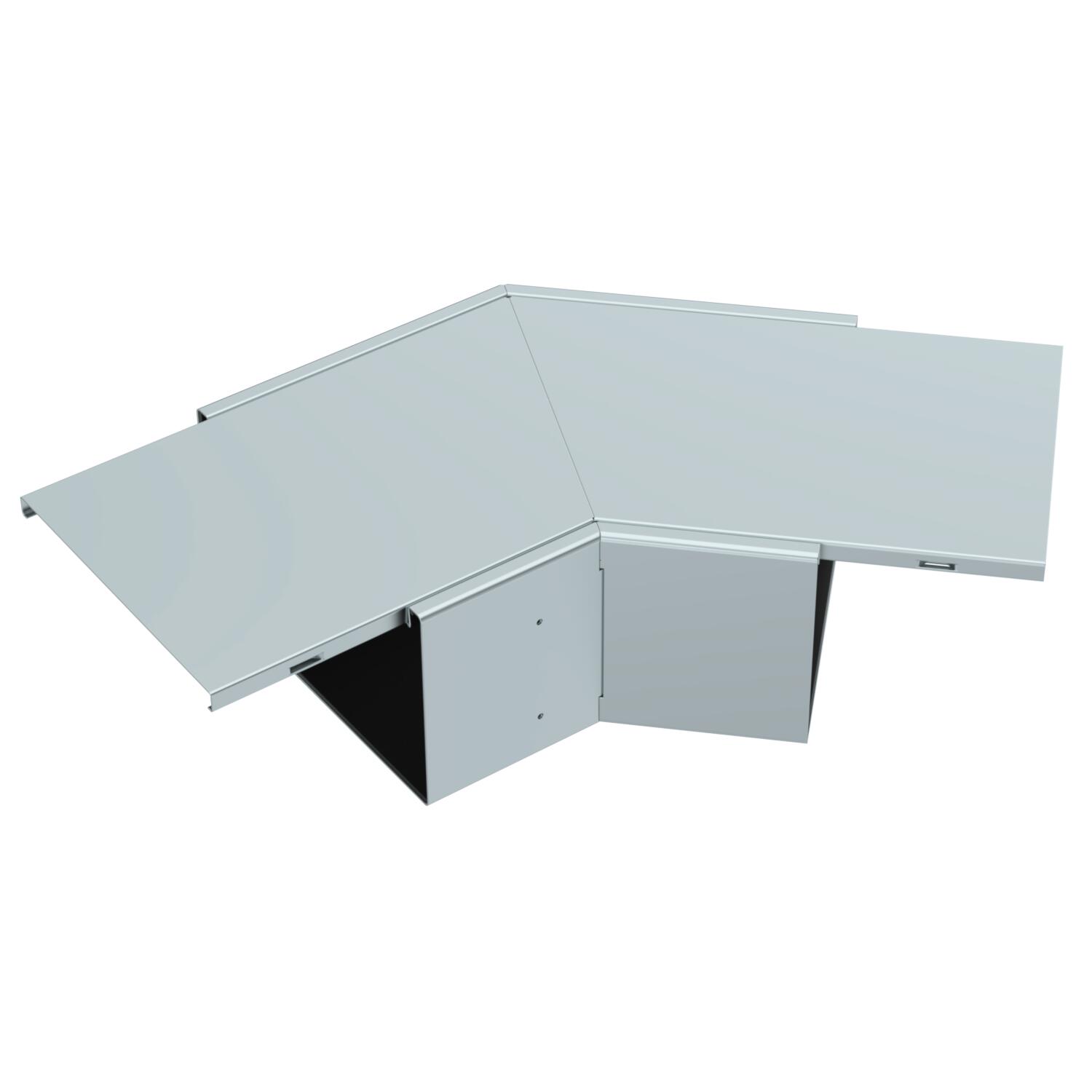

Product description45° flat angle with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and mounting on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
No maintenance of electrical functionality according to DIN 4102 Part 12!
-
- Technical data
-
Technical data

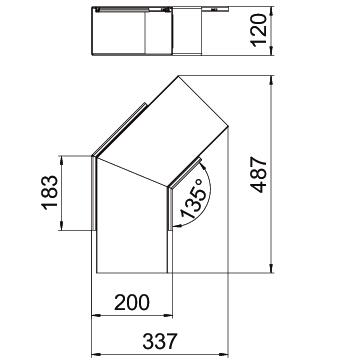

Angle of the bend 45 ° Classification EI − installation duct 90 CO2 Footprint (GWP) Cradle-to-Gate 6,9563 kg CO2e / 1 Piece Colour zinc Cover fastening Miscellaneous Dimension 340x490x120 Dimension L 487 mm Dimension L2 183 mm Dimension W 200 mm Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Strip galvanized Usable cross-section 18500 mm² With perforation yes - All types
- Downloads
-
Data sheet PLM FA45 1220 FS / 7218071 , 0.15MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM FA45 1220 FS / 7218071 , 0.11MB , pdfREACH Declaration of conformity PLM FA45 1220 FS / 7218071 , 0.12MB , pdfRoHS Declaration of conformity PLM FA45 1220 FS / 7218071 , 0.13MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
