Floor and side end plate 60 DD 200
morepic-1

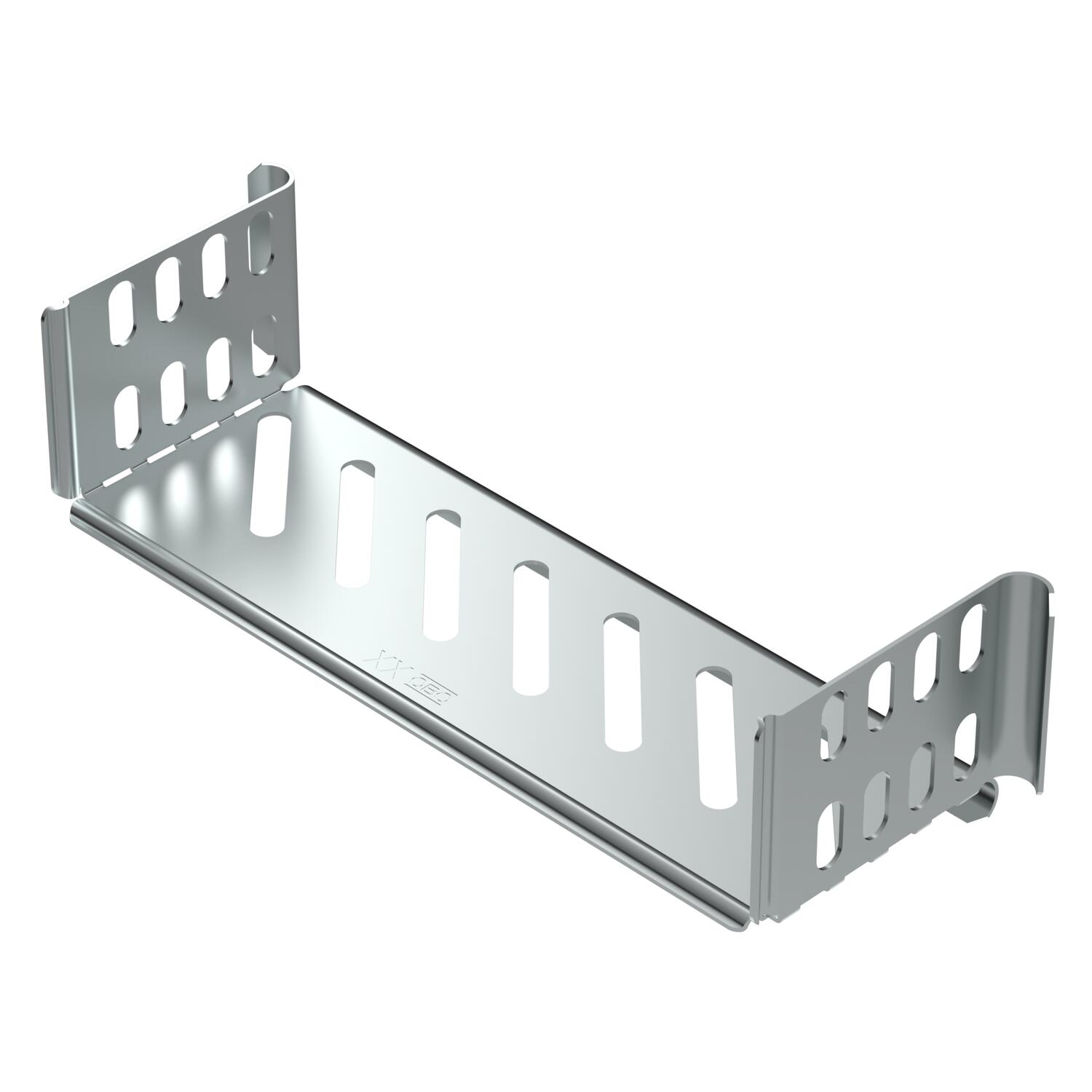

Floor and side end plate 60 DD

Item no. 7084256 | EAN 4012197480677

Product description
Product description
Screwable floor and end plate for cable trays, as protection for the cables when running them downwards and to the side Suitable for indoor and outdoor areas, depending on the surface coating. Fastening with truss-head bolts FRSB 6 x 12 mm. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc
Dimension 60x200
Dimension W 218 mm
Height 61 mm
Length 71 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Strip galvanised zinc/aluminium, Double Dip
Wide-span version no
Width 200 mm
All types

All types

Types Width Item no. Quantity SSU
BSEB 660 DD 600 mm 7084264
1 piece
BSEB 650 DD 500 mm 7084262
1 piece
BSEB 640 DD 400 mm 7084260
1 piece
BSEB 630 DD 300 mm 7084258
1 piece
BSEB 620 DD 200 mm 7084256
1 piece
BSEB 615 DD 150 mm 7084254
1 piece
BSEB 610 DD 100 mm 7084252
1 piece
BSEB 605 DD 50 mm 7084250
1 piece
Downloads

EU declaration of conformity BSEB 620 DD / 7084256 , 0.10MB , pdf
Download
UK Declaration of Conformity BSEB 620 DD / 7084256 , 0.09MB , pdf
Download

No invitation to tender text is available for this product.
