Flush-mounted connection box 150
Item no. 2003124 | EAN 4012195023777
- Product description
-
Product description

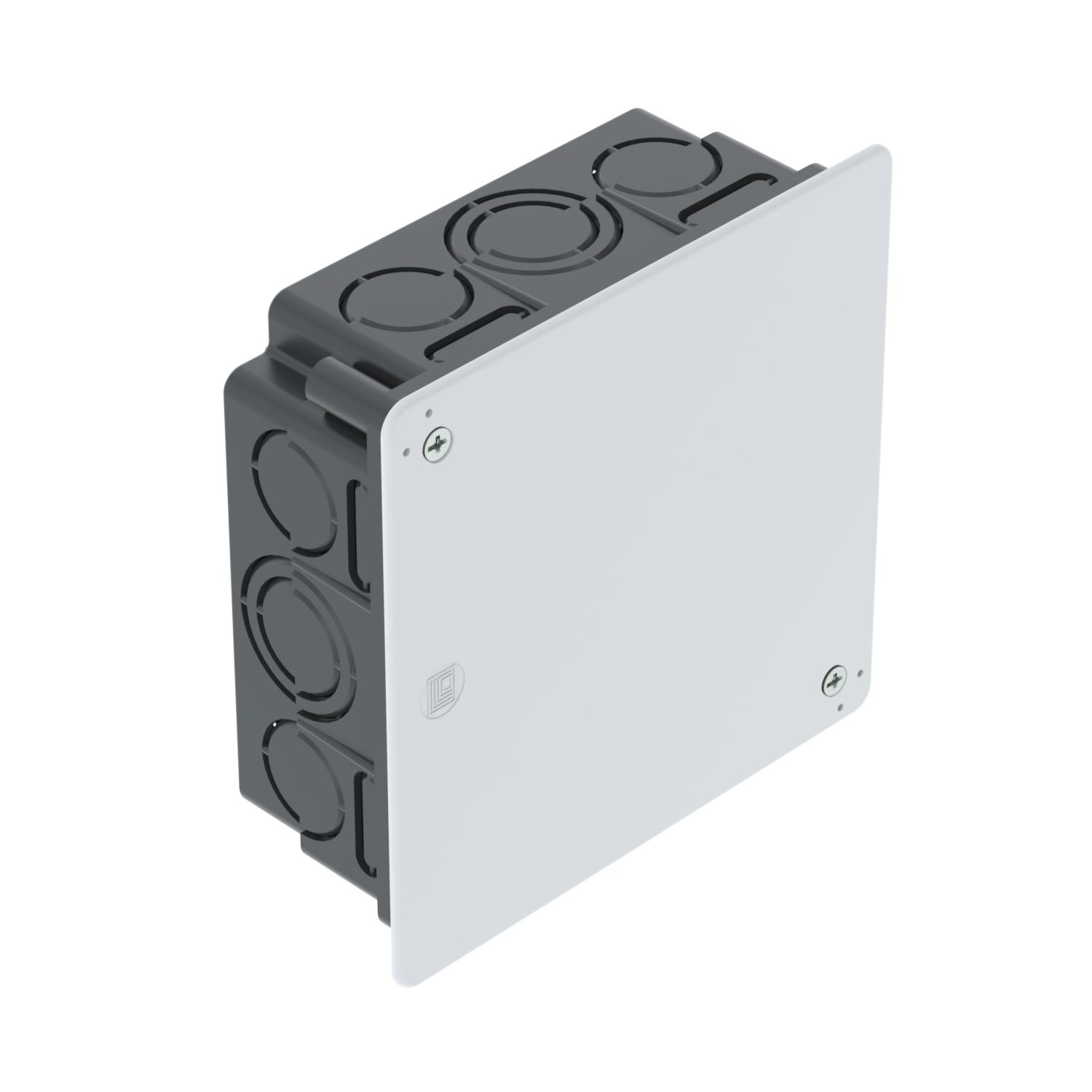

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 65 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.
• 4 side combination pipe entries of Ø 34.6 and 28.5 mm
• 8 side combination pipe entries of Ø 28.5 and 21.5 mm
• 8 side entries for flat cables/ribbon cables
• 2 entries of Ø 28.5 mm in the base
• 2 entries for flat cables/ribbon cables at the base
-
- Technical data
-
Technical data
Airtight no Colour Black Cover Not transparent Cover fastening Screwed Dimension 150x150x65 Entries 24 Entry from rear no Equipment Without Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Floor height, min. 67 mm Halogen-free no Impact-resistant yes Maintain electrical functions Without Material Polystyrene No. of entries 24 Nominal cross-section, min. 16 mm² Protection rating IP20 Rated voltage 400 V Sealable no Shape Square Support Without Type of housing penetration Pre-marking Type of insertion… NYM cables, data cables and corrugated pipes With bolts no With nail strap no With screening no Dimensions
Dimension A 200 mm Dimension B 170 mm Dimension H 65 mm Height 65 mm Length 150 mm Width 150 mm - All types
