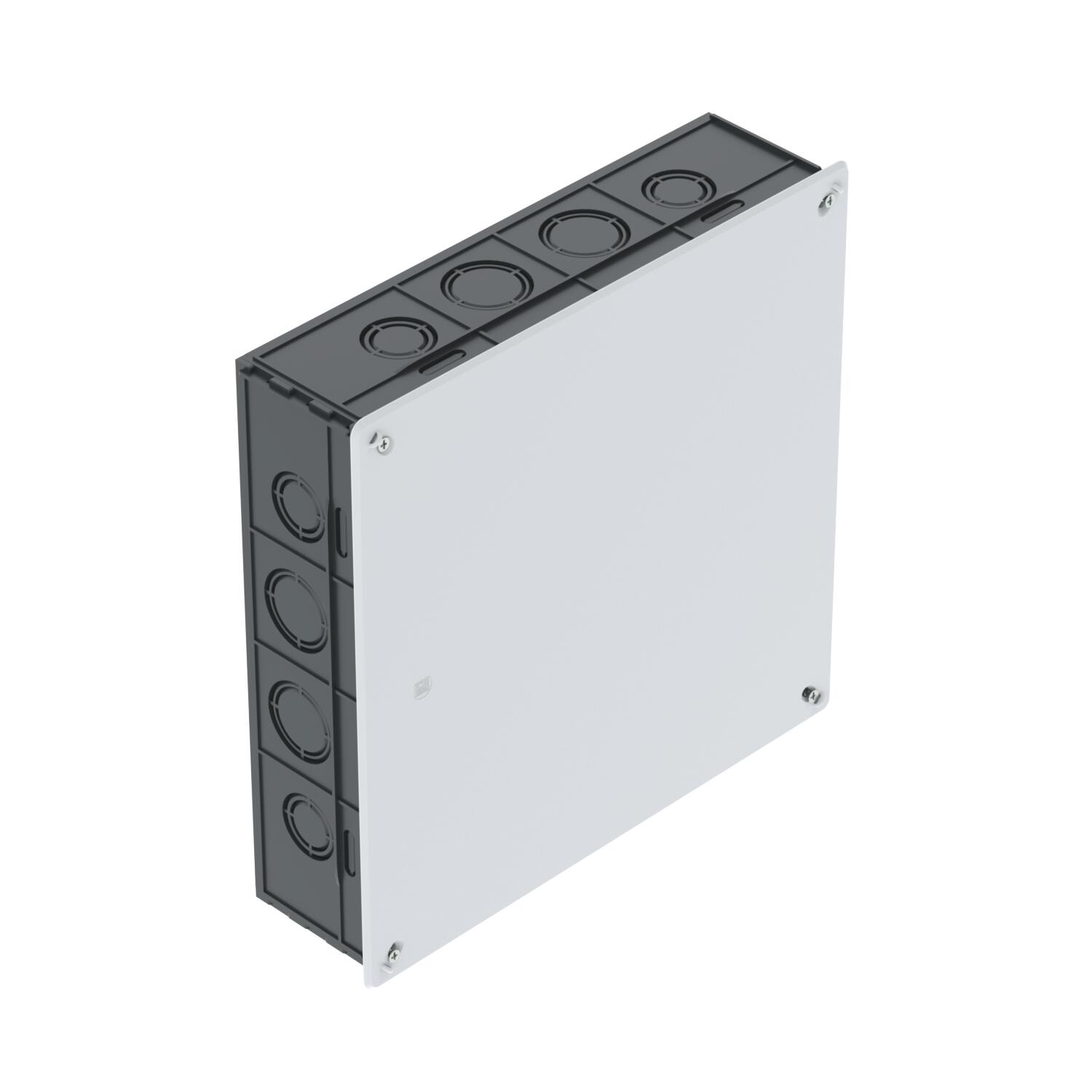

Flush-mounted connection box 250

Item no. 2003136 | EAN 4012195024071

2003136 / UV 250 K
65 mm
40
Product description

Product description

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 65 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 8 side combination pipe entries of Ø 34.6 and 28.5 mm

• 8 side combination pipe entries of Ø 28.5 and 21.5 mm

• 8 side entries of Ø 28.5 mm

• 8 side entries of Ø 21.5 mm

• 8 side entries for flat cables/ribbon cables
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 20
Technical data

Technical data

Airtight no
Colour Black
Cover Not transparent
Cover fastening Screwed
Dimension 250x250x65
Entries 40
Entry from rear no
Equipment Without
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min. 67 mm
Halogen-free no
Impact-resistant yes
Maintain electrical functions Without
Material Polystyrene
No. of entries 40
Nominal cross-section, min. 16 mm²
Protection rating IP20
Rated voltage 400 V
Sealable no
Shape Square
Support Without
Type of housing penetration Pre-marking
Type of insertion… NYM cables, data cables and corrugated pipes
With bolts no
With nail strap no
With screening no

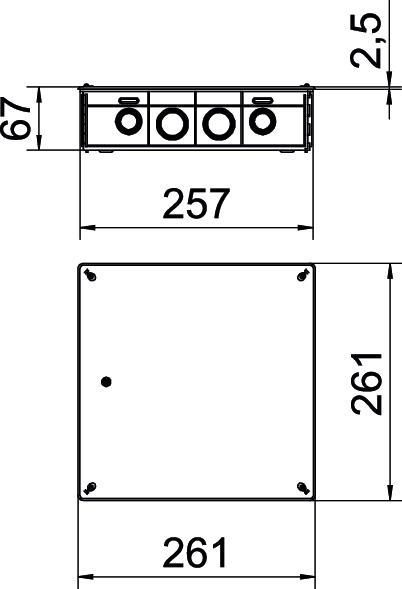

Dimensions

Dimension A 328 mm
Dimension B 260 mm
Dimension H 65 mm
Height 65 mm
Length 250 mm
Width 250 mm
All types

All types

Types Height No. of entries Item no. Quantity SSU
UV 250 K 65 mm 40 2003136
10 piece
