Generator connection box, type 1+2, with MC4 connector for 2 x 1 string IP66

Generator connection box, type 1+2, with MC4 connector for 2 x 1 string

Item no. 5088565 | EAN 4012196440580

Item no. / Types	5088565 / VG-BC900S11

Protection rating	IP66

Product description

Product description

System solution, type 1+2, with MC4 connector for photovoltaic inverter with 2 separate MPP trackers

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Type 1+2 combination arrester for lightning protection equipotential bonding to EN 62305 (VDE 0185-305)
• Low DC voltage protection level: < 3.0 kV (Voc max = 900V DC with V25-B+C/0-450PV)
• One PV string input (MC4 plug connector) at one MPP inverter input, up to 30A DC per terminal

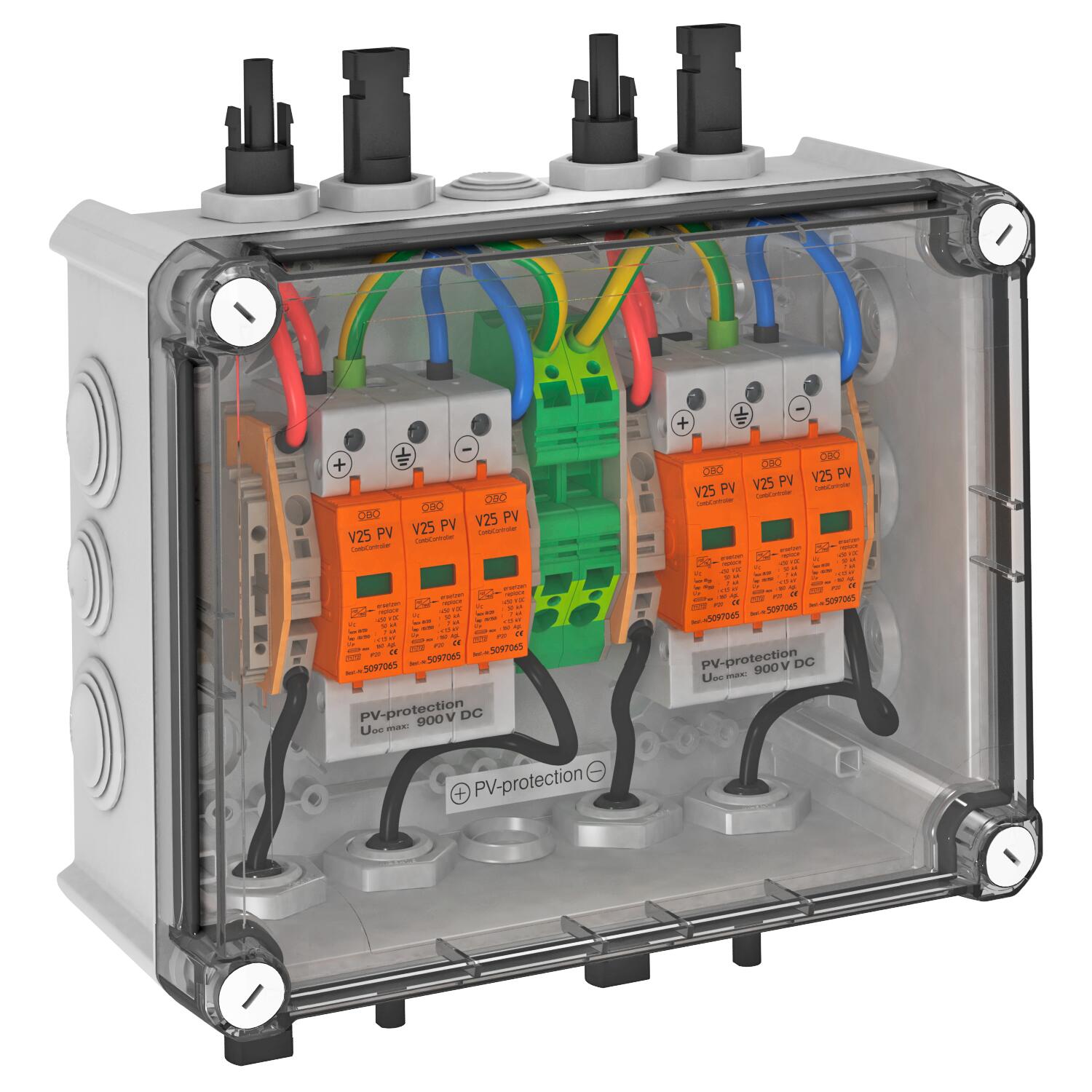

• Pre-mounted in polycarbonate housing (IP66), UV-resistant for use outside

For DC protection of the inverter of photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

Technical data

Connectivity options

Anschlussart Generatoranschlusskasten	MC4
Arrester surge current (8/20 µs) [total]	60 kA
Blow-out	no
CO2 Footprint (GWP) Cradle-to-Gate	5,8524 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
DC network form	yes

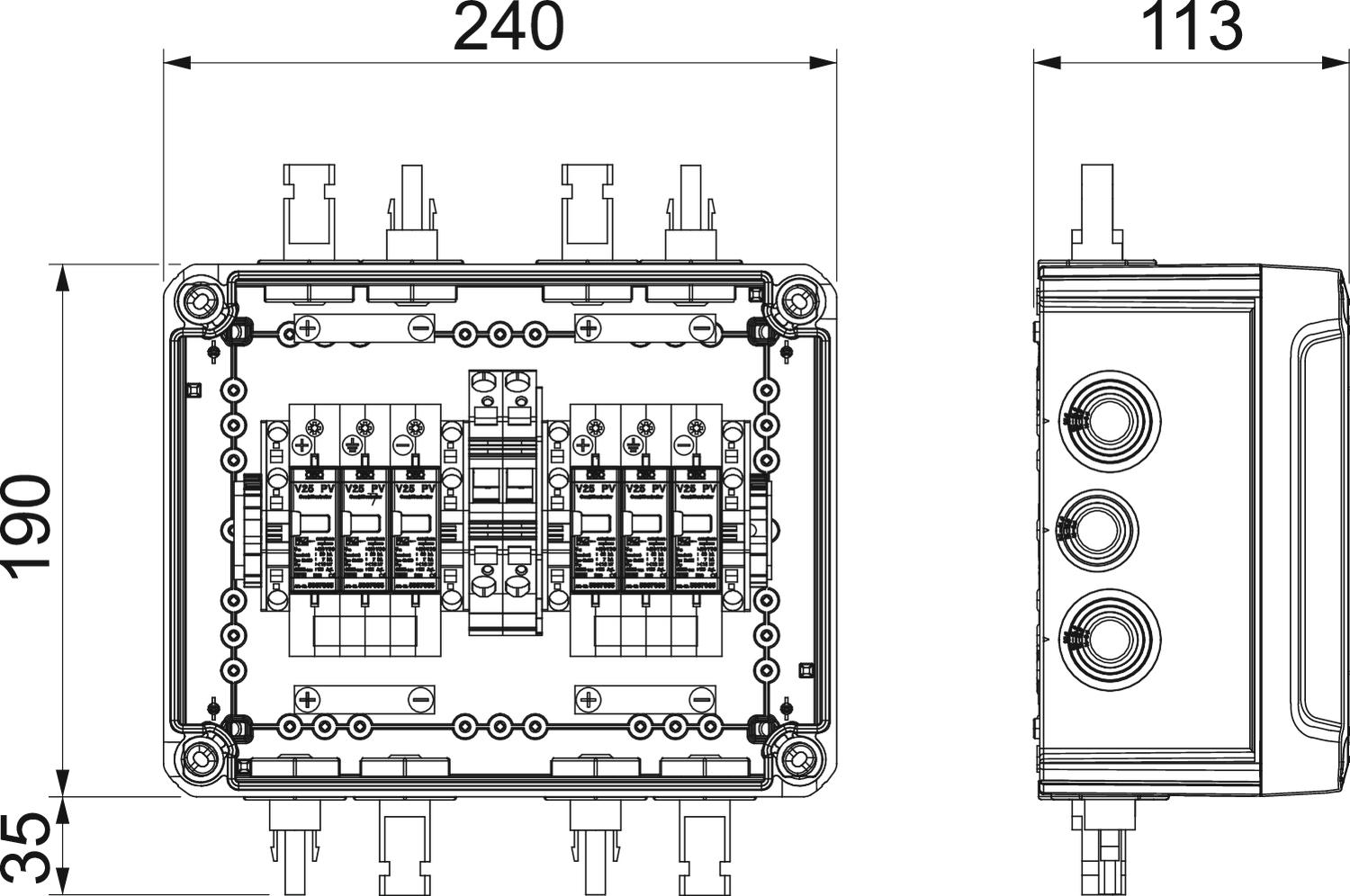

Depth	113 mm
Dimension	900V DC
Entries per MPPT	1
Equipped with load-break switch	no
Exits per MPPT	1
Installation type	Pre-mounted in the housing
IT network form	no
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	7 kA
Max. Input current per string	30 A
Max. Input voltage DC	900 V
Max. Output current	30 A
Max. PV voltage	900 V
Maximum continuous voltage DC	900 V
Maximum discharge current (8/20 μs)	50 kA
Monitoring function	no
Network form	DC
Nominal discharge current (8/20 µs)	30 kA
Nominal discharge current (8/20 µs) [L-N]	30 kA

Number of cable entries	8
Number of inputs	1
Number of MPPTs	2
Number of string inputs	1
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Pole number	3
Protection rating	IP66
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
String fuse	Without
Test class, type 1	yes
Test class, type 2	yes
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Type of entry	MC4
Version for	For two MPPs and with MC4 connection
