GES4 service outlet, used in raised floors

Item no. 7405164 | EAN 4012195102410

Item no. / Types	7405164 / GES4 DB 7011

Floor covering thickness	5 mm

Colour	Iron grey; RAL 7011

Product description

Product description

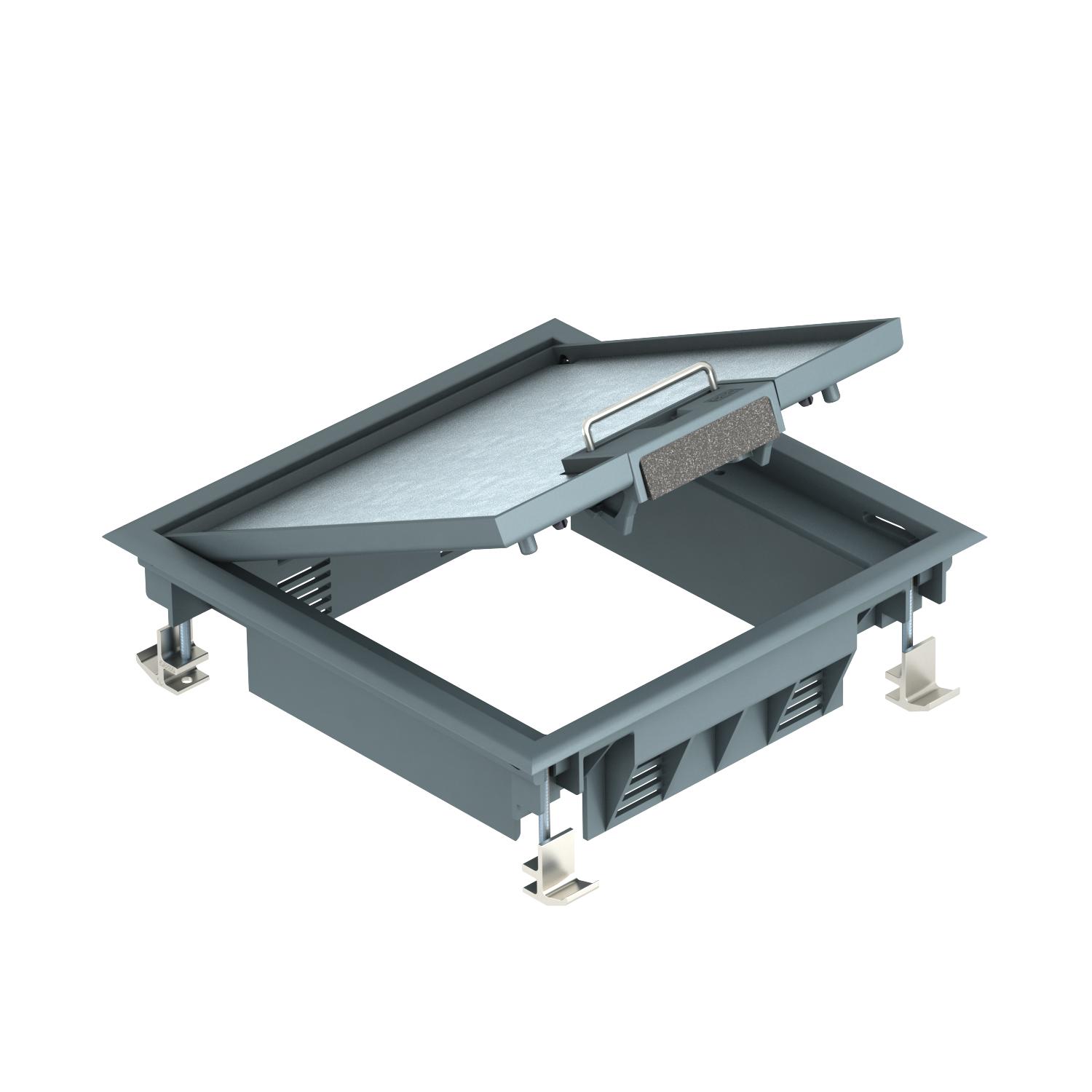

Service unit for 4 installation devices in 2 UT universal supports for use in raised floors for indoor use. Fastening bracket in a clamping range of up to 50 mm plate thickness.

Carpet protection frame, hinged lid and cord outlet made of polyamide.

5 mm floor covering recess in the hinged lid.
Can also be used in conjunction with the MT mounting support. Two APMT5 cover plates can be installed for 4 installation devices. The number of installable installation devices depends on the type of installation devices.

Up to 4 installation devices can be used with 50 mm central plate.

Technical data

Technical data

Approvals	VDE
Cable outlet version	Swivellable cord outlet
Clamping range D, max.	59 mm
Clamping range D, min.	22 mm
CO2 Footprint (GWP) Cradle-to-Gate	2,245 kg CO2e / 1 Piece
Colour	Iron grey; RAL 7011
Device support to accept mounting boxes	yes

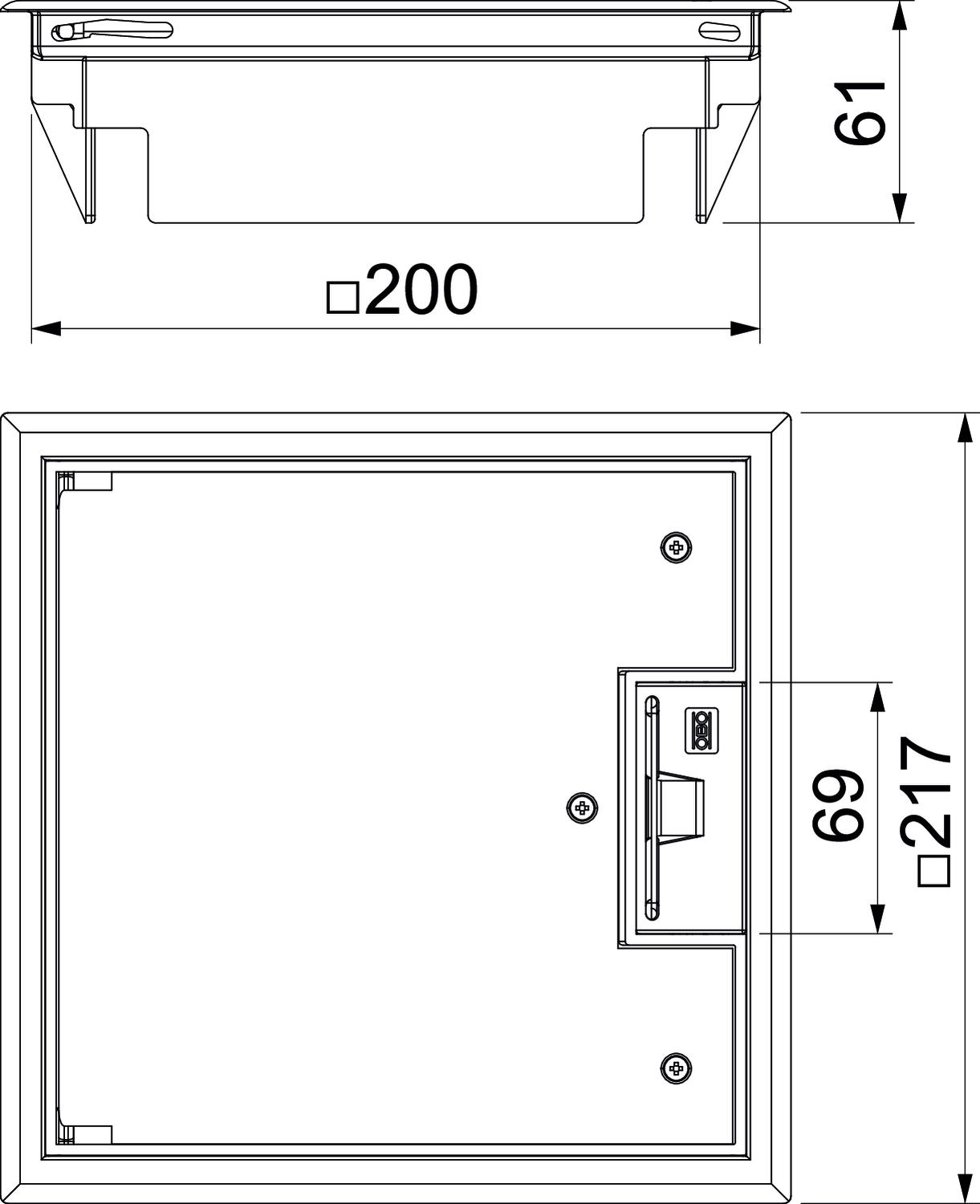

Dimension	222x222x65
Floor care	Dry
Floor covering protection frame	yes
Floor covering thickness	5 mm
Floor height, min.	73 mm
Frame version	Carpet protection frame
Heavy-duty version	no
Installation depth	73 mm
Length of external dimensions	217 mm
Length of installation dimensions	200 mm

Material	Polyamide
Number of mounting boxes	2
Opening mechanism	Handle
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP20
Protection rating IK code	IK08
Seal installation option	no
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	no
Suitable for wet care	no
Version for	Square
Wide external dimensions	217 mm
Wide installation dimensions	200 mm
With floor covering recess	yes
