Grip 40
Item no. 2205416 | EAN 4012195651666
- Product description
-
Product description

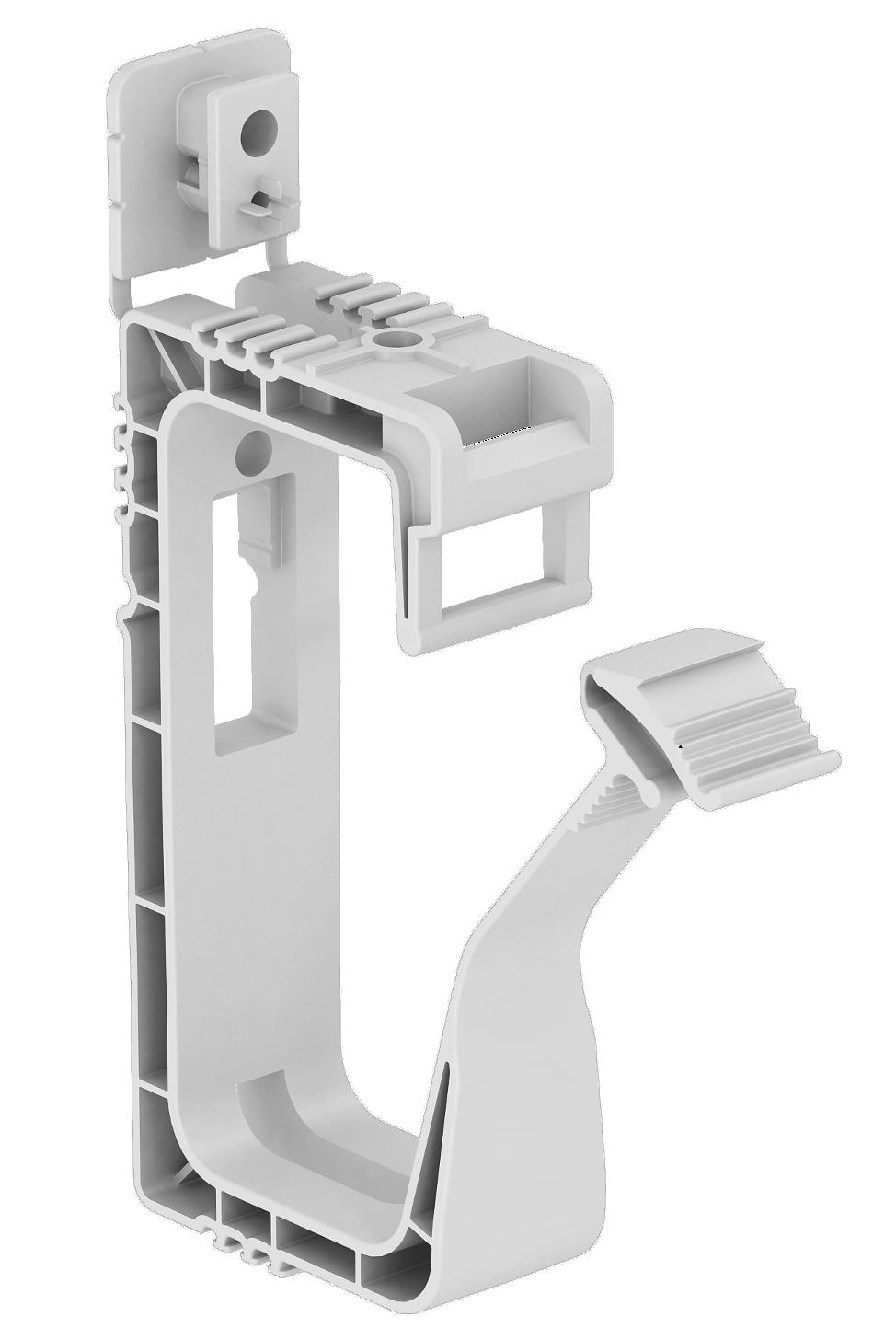

Cable tidy for general use with fastening holes of Ø 6 mm, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun. The recommended fastening spacing when assigned fully is 250–400 mm.
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Breaking load 0,32 kN Colour Light grey; RAL 7035 Dimension 40x NYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions no Material Polypropylene No. of conductors NYM 3 x 1.5 40 With anchor no - All types
- Downloads
-
Data sheet 2031 40 / 2205416 , 0.27MB , pdfDeclaration of conformity 2031 40 / 2205416 , 0.15MB , pdfUK Declaration of Conformity 2031 40 / 2205416 , 0.14MB , pdfREACH Declaration of conformity 2031 40 / 2205416 , 0.12MB , pdfRoHS Declaration of conformity 2031 40 / 2205416 , 0.12MB , pdfLabel approval UL certificate, Grip grouped support , 0.33MB , pdfMounting instructions Grip M grouped support 2031 , 1.02MB , pdf
