Hammer insert, type 2536, for earth rods SDS-max | 16

morepic-1

morepic-2

Hammer insert, type 2536, for earth rods

Item no. 3043930 | EAN 4012197460020

Item no. / Types

Seat systems

for earth rods

Product description

Product description

• For 16 mm earth electrode diameter
• Suitable for earth rod system ST
• For vibration hammers with SDS-Max/TEY seat
• For Hilti rotary hammer drills: TE 50/ 54/ 55/ 56/ 60/ 70/ 74/ 75/ 76/ 80
• For Hilti demolition hammers: TE 500/ 505/ 705/ 706
• Tempered

Technical data

Technical data

Dimension	16mm
Earther diameter	16 mm
for earth rods	16 mm

Length	212 mm
Seat systems	SDS-max

All types

All types

Types	Seat systems	for earth rods	Item no.	Quantity	SSU
2536 25	-	25 mm	3044831	piece	1 piece
2536 20	-	20 mm	3044904	piece	1 piece
2536 16	SDS-max	16 mm	3043930	piece	1 piece

Downloads

Data sheet 2536 16 / 3043930 , 0.13MB , pdf

REACH Declaration of conformity 2536 16 / 3043930 , 0.13MB , pdf

Download

RoHS Declaration of conformity 2536 16 / 3043930 , 0.13MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Mounting instructions Mounting instructions, earth rod , 0.15MB , pdf

Download

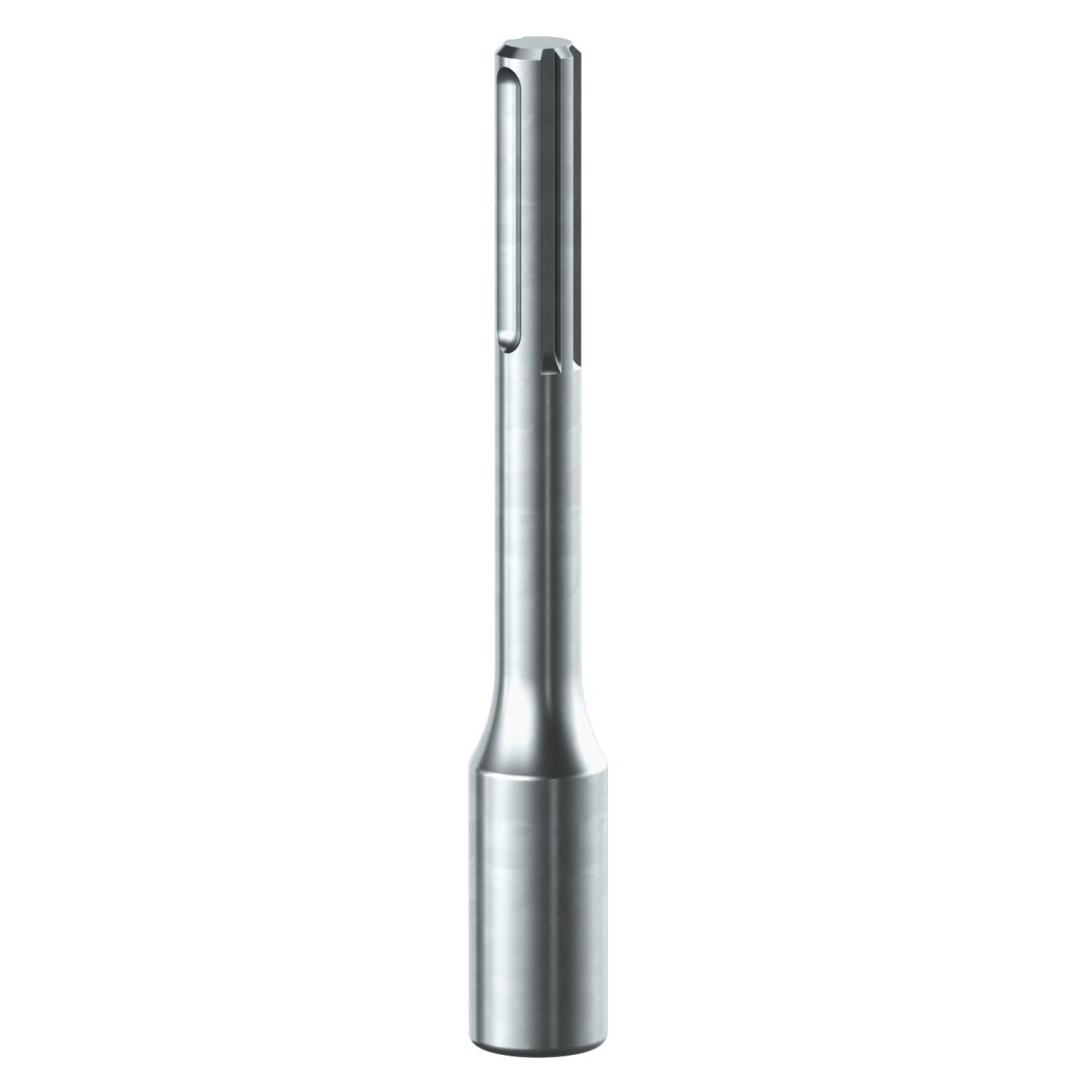

Product graphic 2536 16 / 3043930, 35.92 kB, jpg

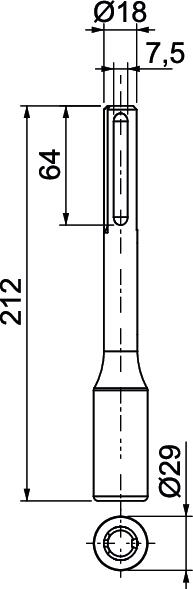

Scale drawing 2536 16 / 3043930, 15.57 kB, jpg

No invitation to tender text is available for this product.
