- Product description
-
Product description

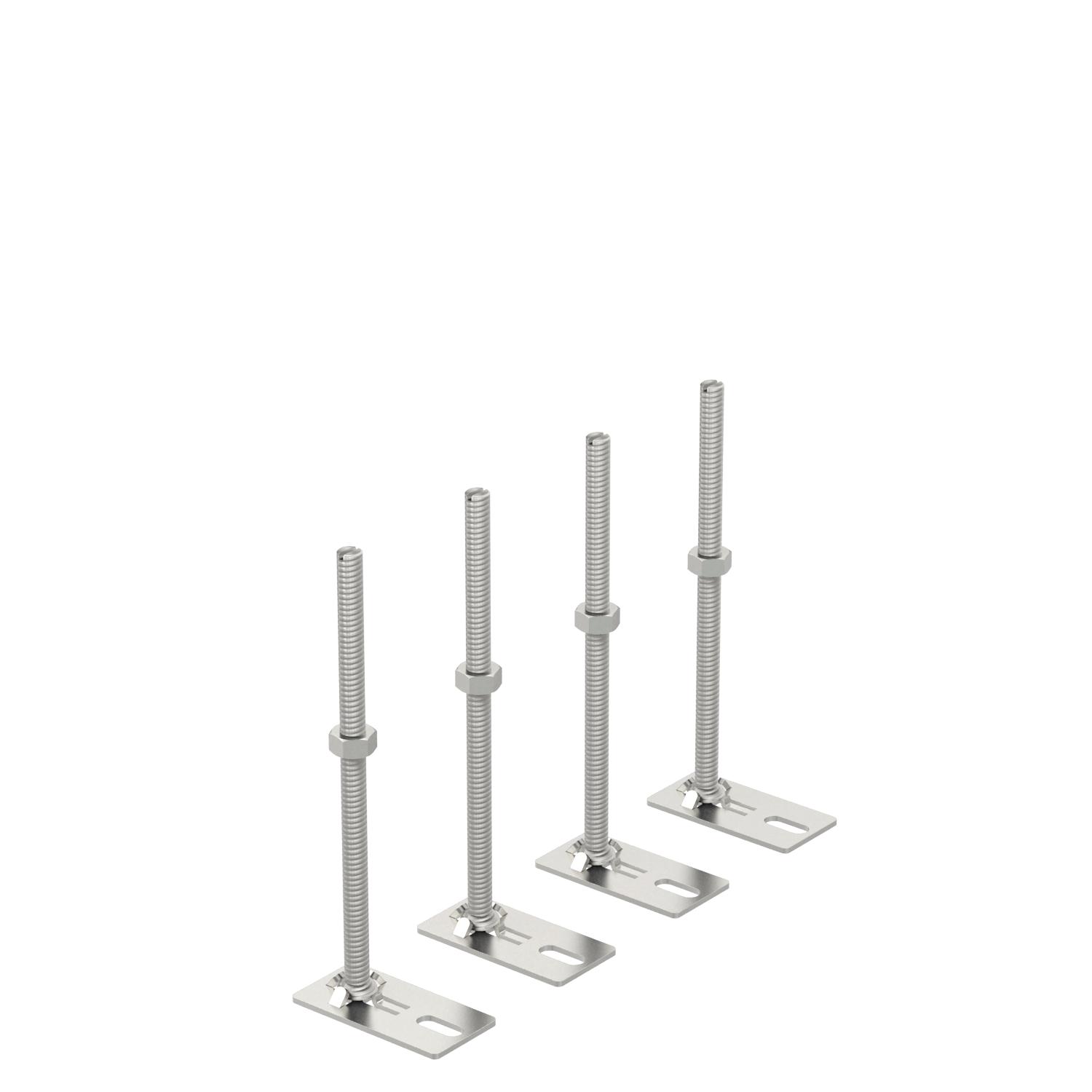

For flushfloor height adjustment of the height adjustable cassette units and the OKB screed-flush trunking system. The VPE consists of 4 height adjustment units.
- Technical data
-
Technical data
Dimension M8x150mm Height-adjustment range, max. 230 mm Height-adjustment range, min. 180 mm Material Steel Material of the foot Metal Suitable for cassettes yes Suitable for ducts and trunking yes Surface Electrogalvanized With footfall sound insulation no Dimensions

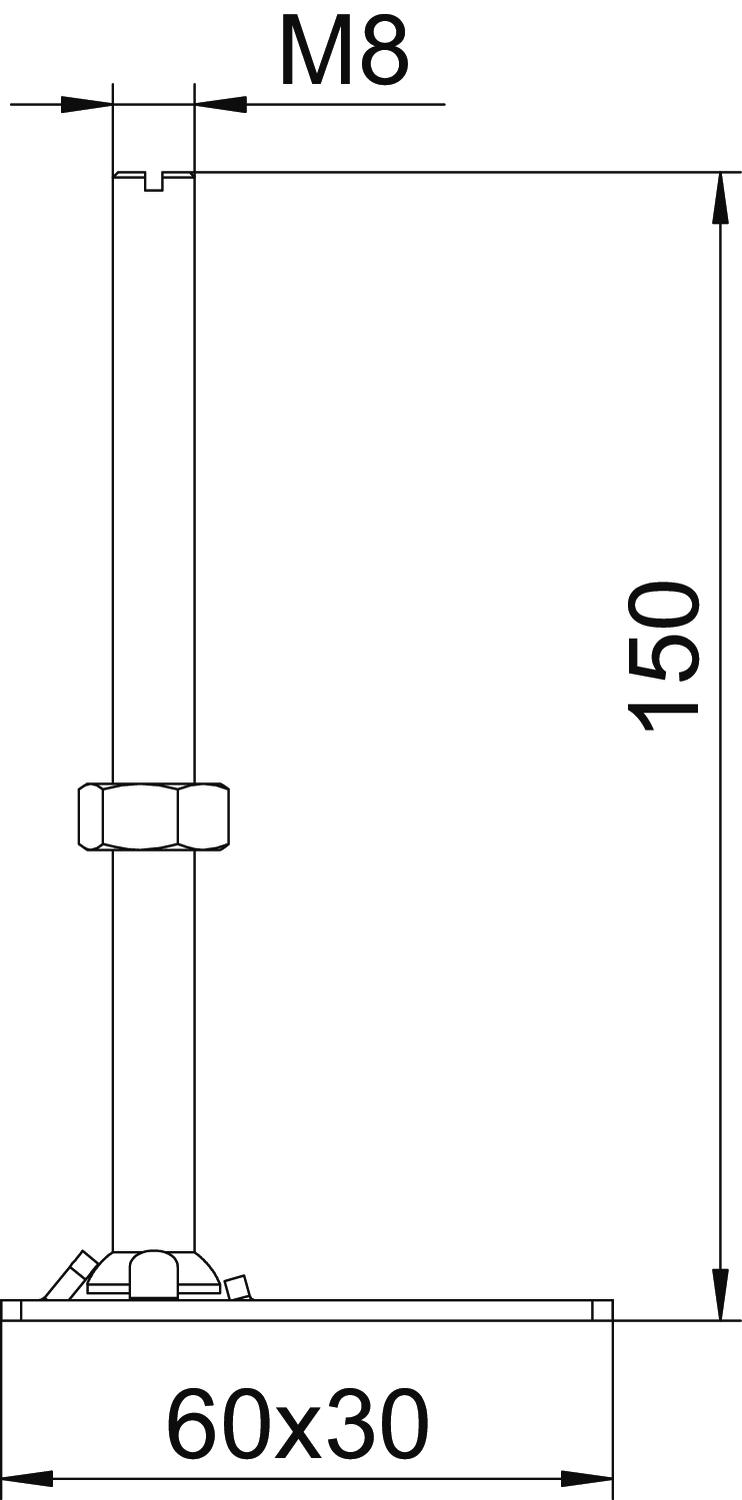

Dimension h 150 mm - All types
- Downloads
-
Data sheet RK NEV2 150 / 7405816 , 0.33MB , pdfDeclaration of conformity RK NEV2 150 / 7405816 , 0.17MB , pdfUK Declaration of Conformity RK NEV2 150 / 7405816 , 0.14MB , pdfREACH Declaration of conformity RK NEV2 150 / 7405816 , 0.12MB , pdfRoHS Declaration of conformity RK NEV2 150 / 7405816 , 0.28MB , pdfLabel approval VDE symbol approval, RK RKN , 0.18MB , pdf
