Hexagonal bolt M10
Item no. 3160757 | EAN 4012197385972
- Product description
-

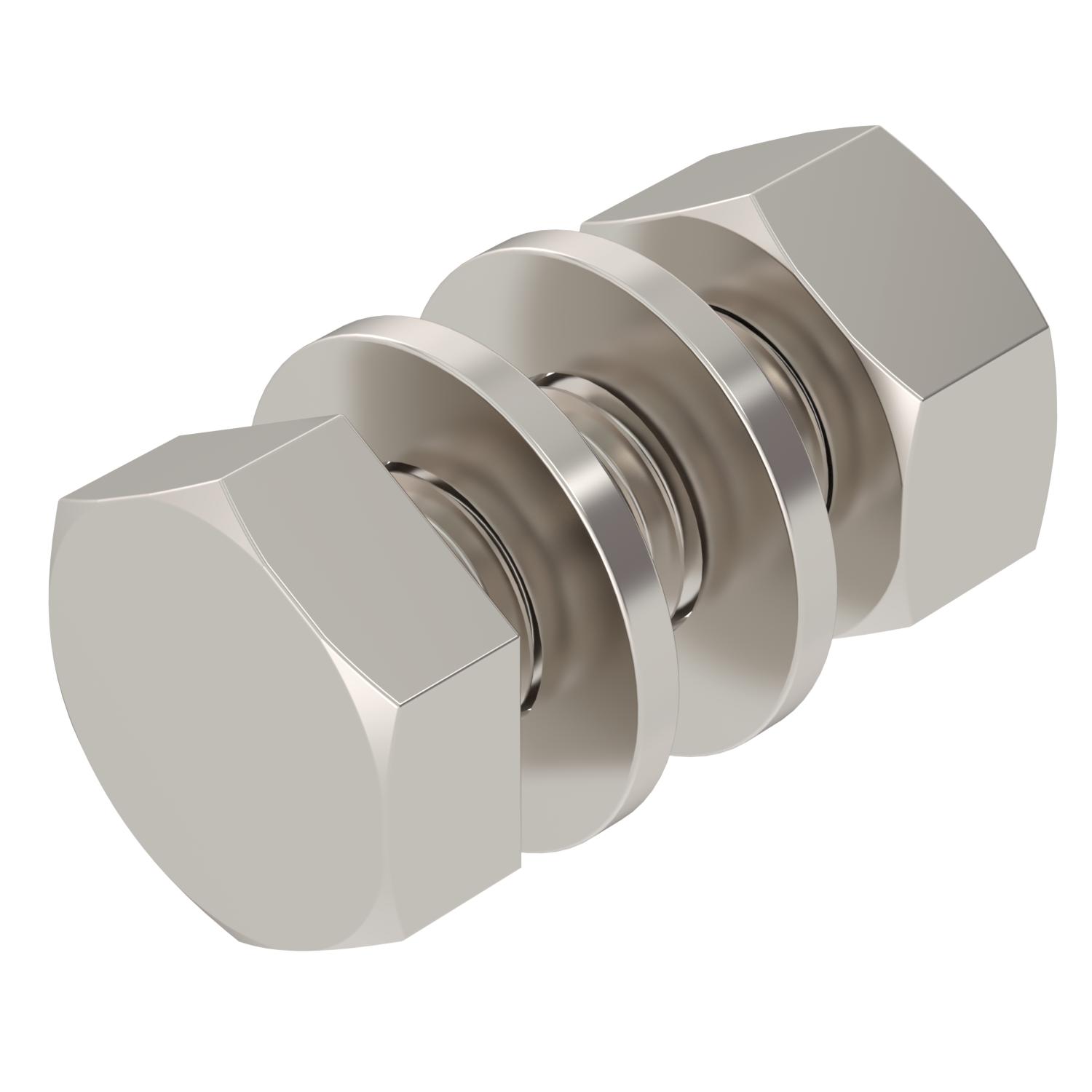

Product descriptionHexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
-
- Technical data
-
Technical data

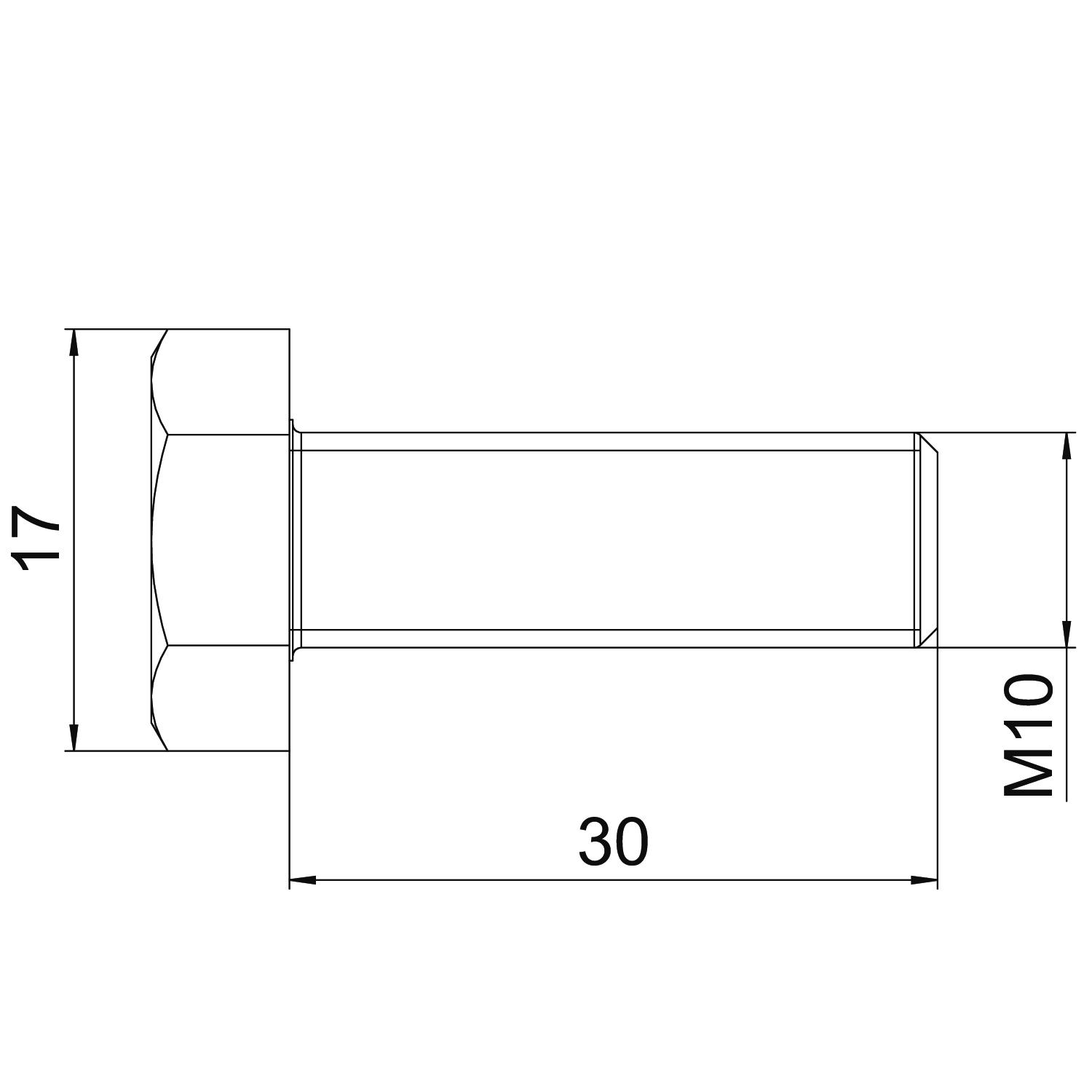

CO2 Footprint (GWP) Cradle-to-Gate 0,221 kg CO2e / 1 Piece Colour stainless steel Dimension M10x30 Dimension d 10 mm Dimension L 30 mm Full thread yes Left thread no Length 30 mm Material Stainless steel Resistance grade A4-70 Screw system Hexagonal Self-locking no Thread M 10 x 30 Thread increase 1,5 mm Thread length 30 mm Thread metric 10 Thread type Metric WAF 17 With nut yes With washer yes - All types
- Downloads
-
Data sheet SKS 10x30 A4 / 3160757 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity SKS 10x30 A4 / 3160757 , 0.10MB , pdfUK Declaration of Conformity SKS 10x30 A4 / 3160757 , 0.09MB , pdfREACH Declaration of conformity SKS 10x30 A4 / 3160757 , 0.12MB , pdfRoHS Declaration of conformity SKS 10x30 A4 / 3160757 , 0.13MB , pdf
