Hexagonal bolt M12 A4 12 | 130 | 19 | 12 | Stainless steel

morepic-1

morepic-2

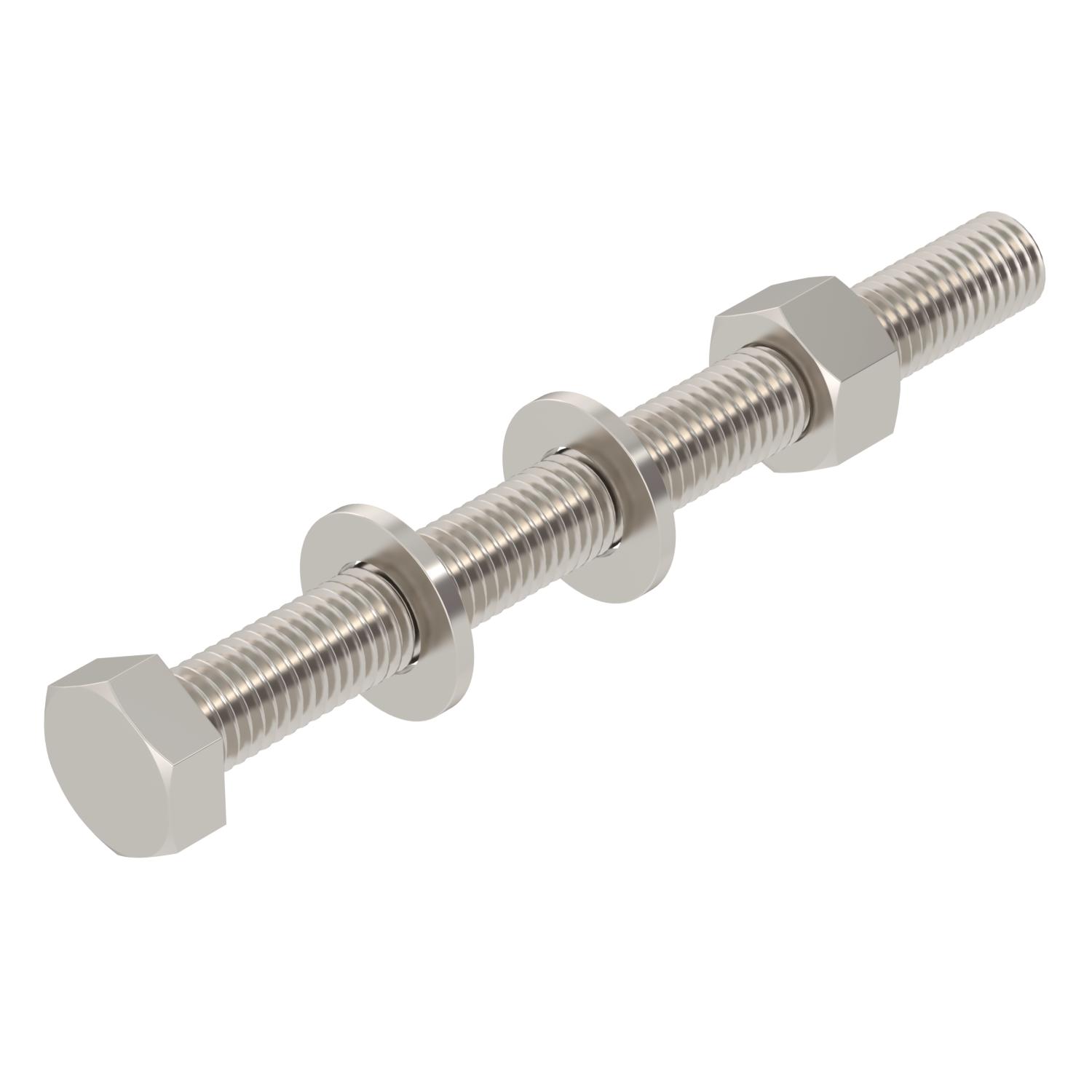

Hexagonal bolt M12 A4

Item no. 6418276 | EAN 4012197358266

Item no. / Types

Dimension d	12 mm

Dimension L

WAF	19

Thread metric	12

Material	Stainless steel

Product description

Product description

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,6666 kg CO2e / 1 Piece
Colour	stainless steel
Dimension	M12x130
Dimension d	12 mm
Dimension L	130 mm
Full thread	yes
Left thread	no
Length	130 mm
Material	Stainless steel
Resistance grade	A4-70
Screw system	Hexagonal

Self-locking	no
Surface	Bright, treated
Thread	M 12 x 130
Thread increase	1,75 mm
Thread length	130 mm
Thread metric	12
Thread type	Metric
WAF	19
With flange	no
With nut	yes
With washer	yes

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.	Quantity	SSU
SKS 12x130 A4	12 mm	130 mm	19	12	Stainless steel	6418276	piece	20 piece
SKS 12x110 A4	12 mm	110 mm	19	12	Stainless steel	6418274	piece	20 piece

Downloads

Data sheet SKS 12x130 A4 / 6418276 , 0.15MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity SKS 12x130 A4 / 6418276 , 0.22MB , pdf

REACH Declaration of conformity SKS 12x130 A4 / 6418276 , 0.12MB , pdf

Download

RoHS Declaration of conformity SKS 12x130 A4 / 6418276 , 0.13MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Product graphic SKS 12x130 A4 / 6418276, 54.91 kB, jpg

Scale drawing SKS 12x130 A4 / 6418276, 10.43 kB, jpg

SKS 12x130 A4 / 6418276
