HW Connector for cavity wall boxes

Item no. 2003846 | EAN 4012196974641

Product description

Product description

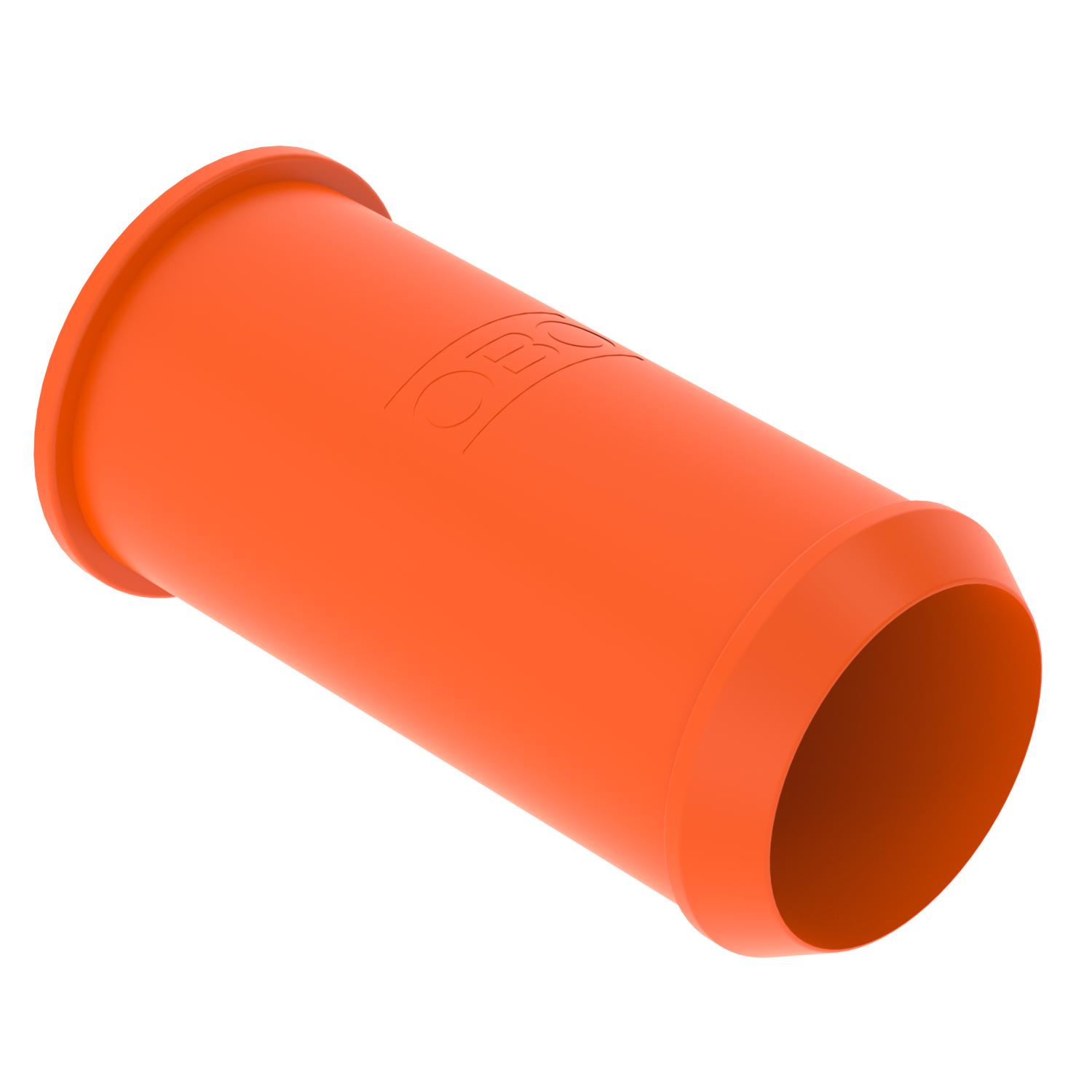

Connector to connect cavity wall boxes and pass cable wires through. Airtight in conjunction with airtight cavity wall boxes.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • RoHS-conformant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
Technical data

Technical data

Accessories yes
Airtight no
Colour Orange
Diameter 14,5 mm
Diameter, interior 11 mm
Dimension Ø14,5x28mm
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Halogen-free yes
Impact-resistant yes
Material Polypropylene
Protection rating IP30
Spare part no
Support Pipe connector
Type of accessory Connector

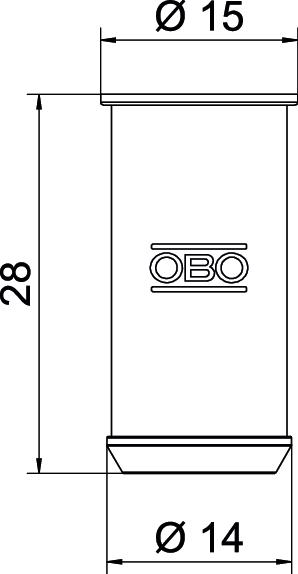

Dimensions

Length 28 mm
All types

All types

Types Item no. Quantity SSU
ZH 11V 2003846
10 piece
