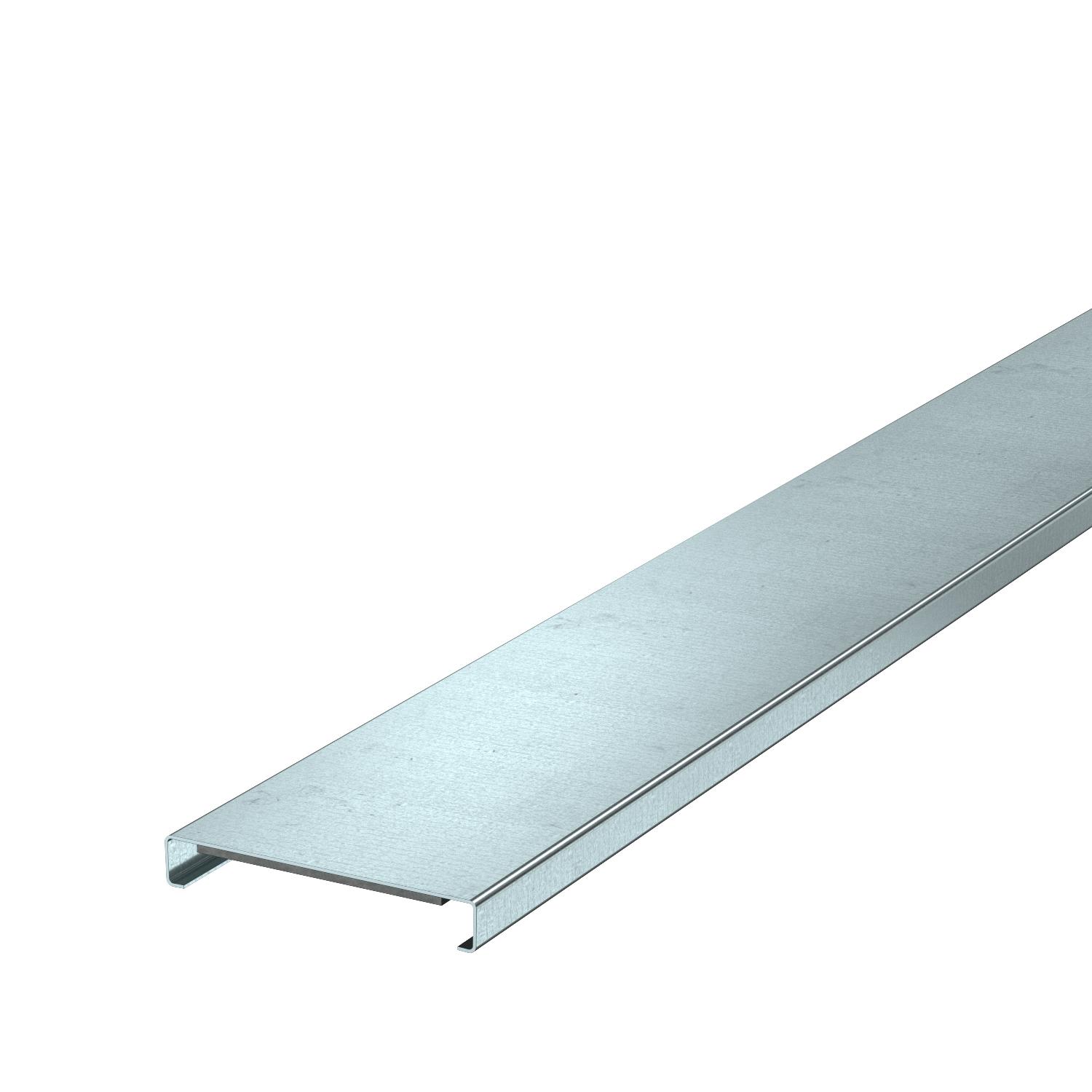

Installation duct cover, duct width 100 mm, FS
Item no. 7218020 | EAN 4012197351243
- Product description
-
Product descriptionCover with factory-made beading for toolless mounting and continuous equipotential bonding. Additional locking brackets can be used for shortened covers. Take the details from the mounting instructions into account.
-
- Technical data
-
Technical data

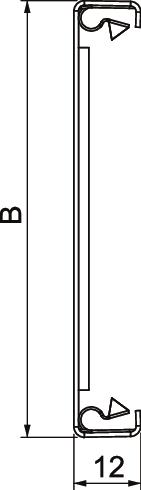

Accessories yes Classification EI − installation duct 90 CO2 Footprint (GWP) Cradle-to-Gate 1,6103 kg CO2e / 1 Meter Colour zinc Dimension 12x77x2000 Dimension B 76 mm Length 2000 mm Material Steel Spare part no Surface Strip galvanized Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet PLM LI 100 FS / 7218020 , 0.18MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM LI 100 FS / 7218020 , 0.11MB , pdfDeclaration of performance PLM LI 100 FS / 7218020 , 0.78MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
