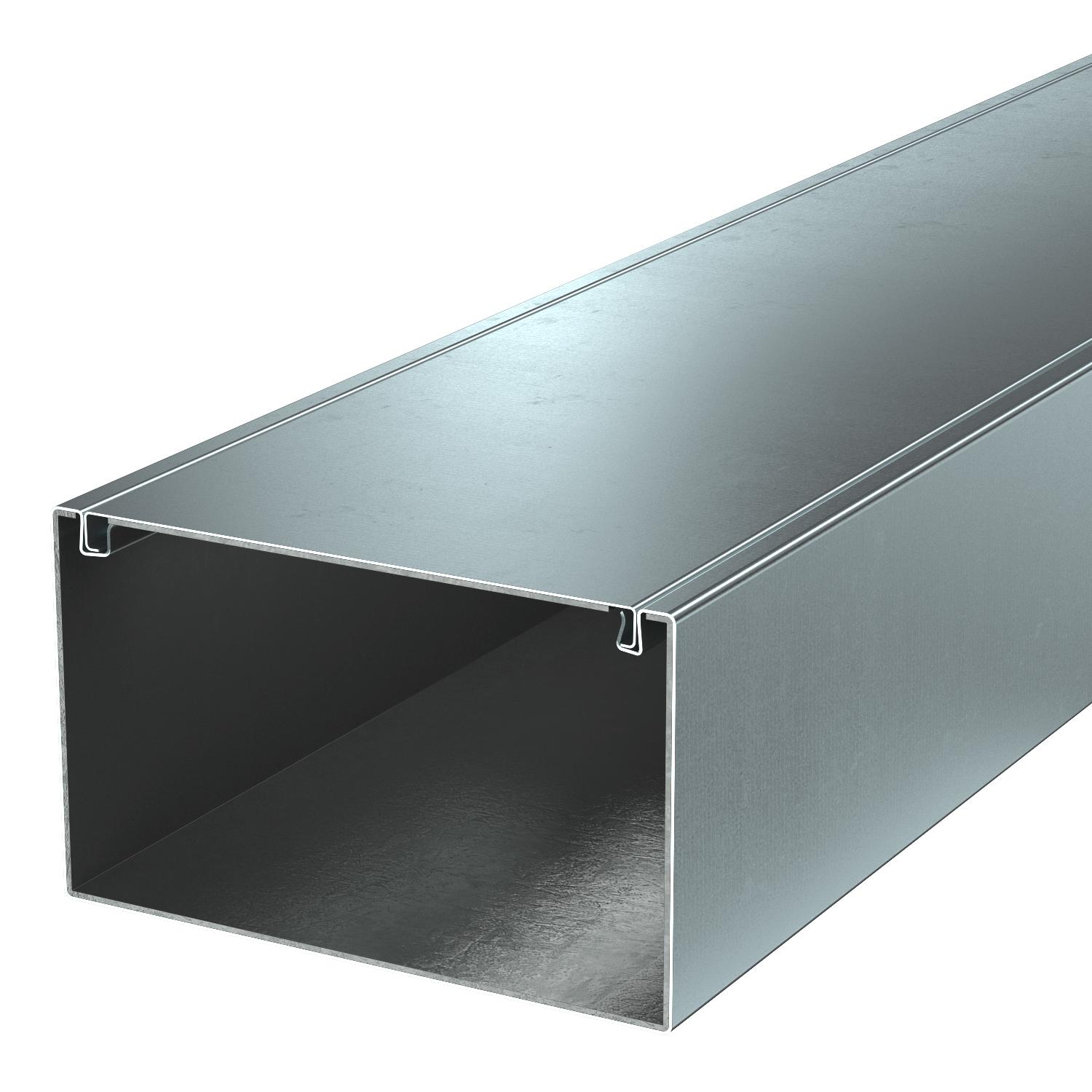

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, FS
Item no. 7218012 | EAN 4012197351236
- Product description
-
Product descriptionMetal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

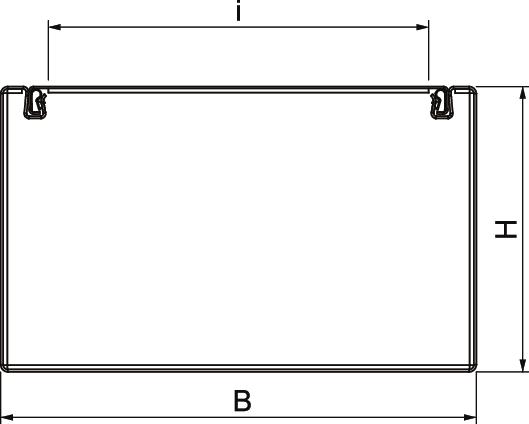

Classification EI − installation duct 90 CO2 Footprint (GWP) Cradle-to-Gate 3,1395 kg CO2e / 1 Meter Colour zinc Cover fastening Miscellaneous Dimension 120x200x2000 Dimension B 200 mm Dimension H 120 mm Dimension i 162 mm Height 120 mm Internal height 114 mm Internal width 194 mm Jacketing Steel Length 2000 mm Material Steel Number of flammable sides 4 Partitions possible yes Protection rating IK code IK10 Surface Strip galvanized Usable cross-section 18500 mm² Width 200 mm With perforation yes - All types
-
System accessories
Mounting accessories
Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge
ASX-K 7202310 1 piece
Connector screw
PLM SF 4x8 3498092 100 piece
Locking bracket RKV3V
RKV3V 6288700 20 piece - Downloads
-
Data sheet PLM D 1220 FS / 7218012 , 0.19MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM D 1220 FS / 7218012 , 0.11MB , pdfDeclaration of performance PLM D 1220 FS / 7218012 , 0.78MB , pdfREACH Declaration of conformity PLM D 1220 FS / 7218012 , 0.12MB , pdfRoHS Declaration of conformity PLM D 1220 FS / 7218012 , 0.13MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
Joint connector set, duct height 120 mm

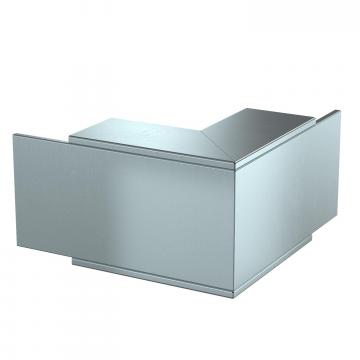

External corner, duct height 120 mm, FS

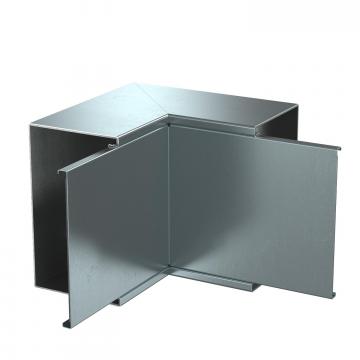

Internal corner, duct height 120 mm, FS

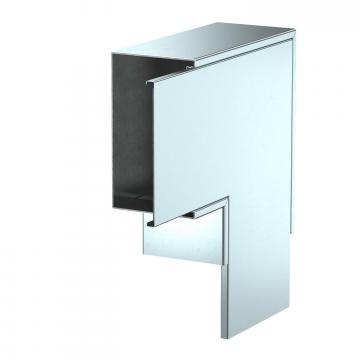

Flat angle, duct height 120 mm, FS

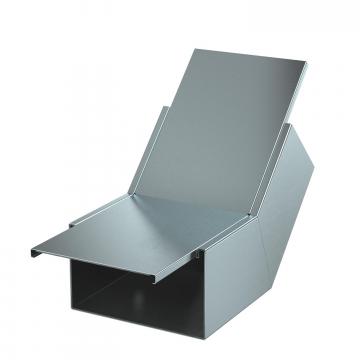

Vertical bend, rising, duct height 120 mm, FS

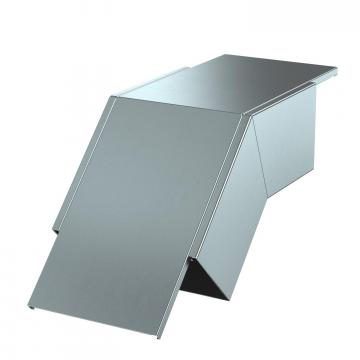

Vertical bend, falling, duct height 120 mm, FS

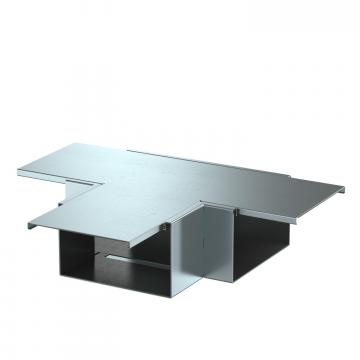

T branch piece, duct height 120 mm, FS

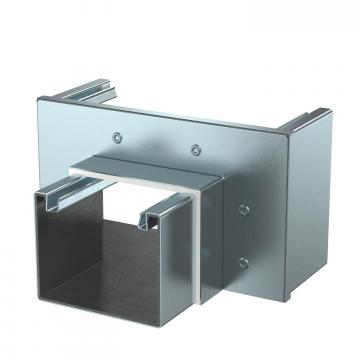

Reducer, straight, from 120 mm to 80 mm duct height, FS

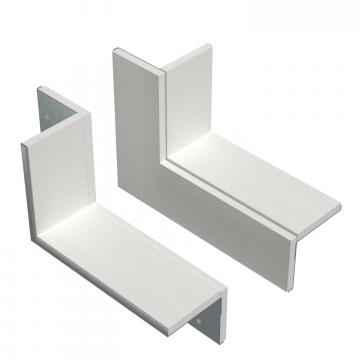

Wall connection set, double-sided, for corner mounting, duct height 120 mm, FS

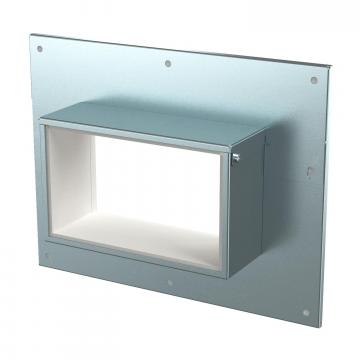

Wall connection collar, 3- and 4-sided, duct height 120 mm, FS

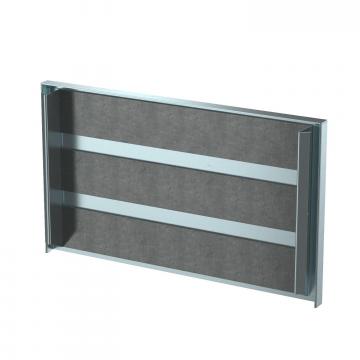

End piece, duct height 120 mm, FS
Cover support, duct width 200 mm
Foam seal, duct height 120 mm
Pressure clip for wall mounting, duct height 120 mm
Pressure clip for ceiling mounting, duct height 120 mm

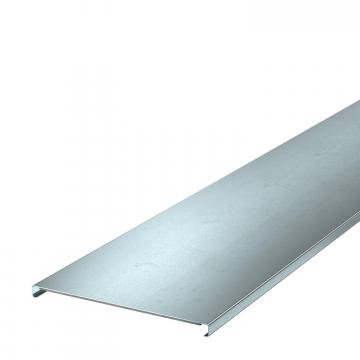

Installation duct cover, duct width 200 mm, FS

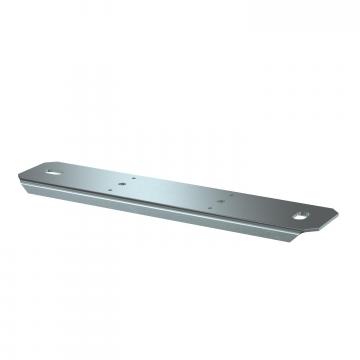

Support, duct width 200 mm, FS

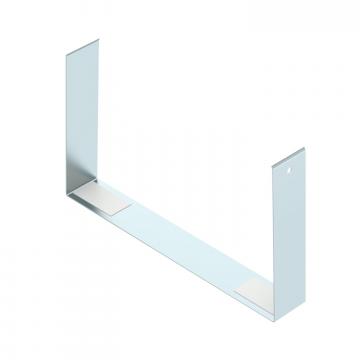

Joint cover, duct height 120 mm
