Intermediate clamp with spring for PV module mounting 55 | 35

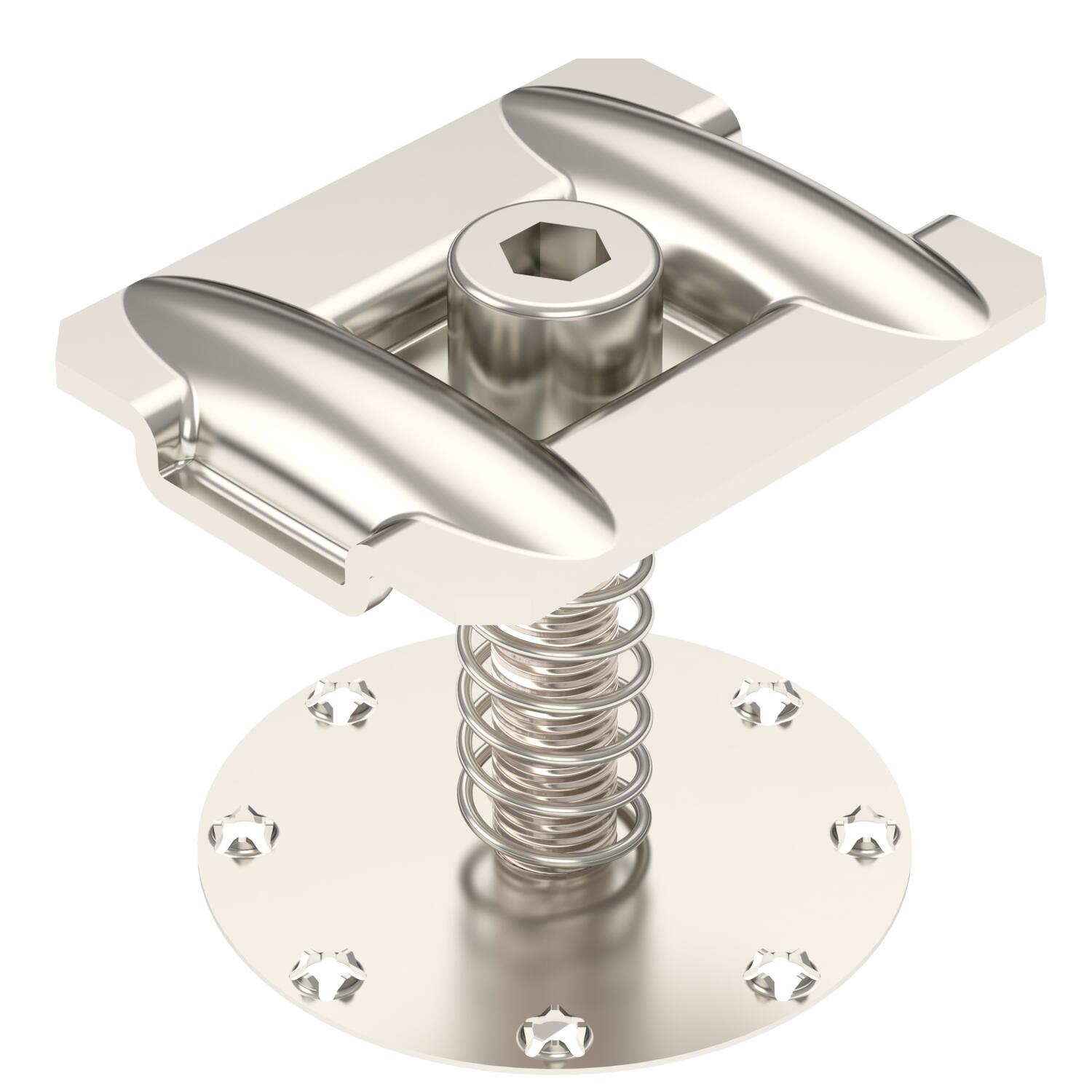

Intermediate clamp with spring for PV module mounting

Item no. 5901064 | EAN 4012197434304

Item no. / Types

Height

For frame height min.

Product description

Product description

Intermediate clamp with spring for fastening photovoltaic modules on support profiles. Suitable for slot width 10 mm. Lockable fastening of the PV module with Allen key size 6.

Technical data

Technical data

Adjustable	yes
CO2 Footprint (GWP) Cradle-to-Gate	0,4661 kg CO2e / 1 Piece
Colour	stainless steel

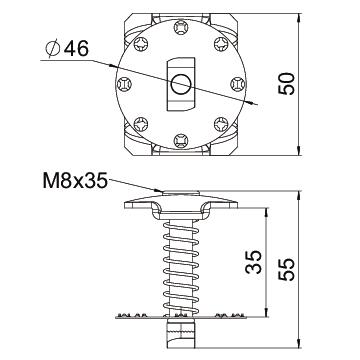

Depth	50 mm
Dimension	50x40x58
For frame height min.	35 mm

Height	55 mm
Material	Stainless steel 1.4301
Photovoltaic connection and fastening element version	Centre clamp
Width	46 mm
With module earthing	yes

All types

All types

Types	Height	For frame height min.	Item no.	Quantity	SSU
KLZ F 25 A2	46 mm	25 mm	5901062	piece	1 piece
KLZ F 30 A2	50 mm	30 mm	5901063	piece	1 piece
KLZ F 35 A2	55 mm	35 mm	5901064	piece	1 piece
KLZ F 40 A2	60 mm	40 mm	5901065	piece	1 piece
