Internal corner BRA IE 70130
Item no. 6133277 | EAN 4012196735389
- Product description
-

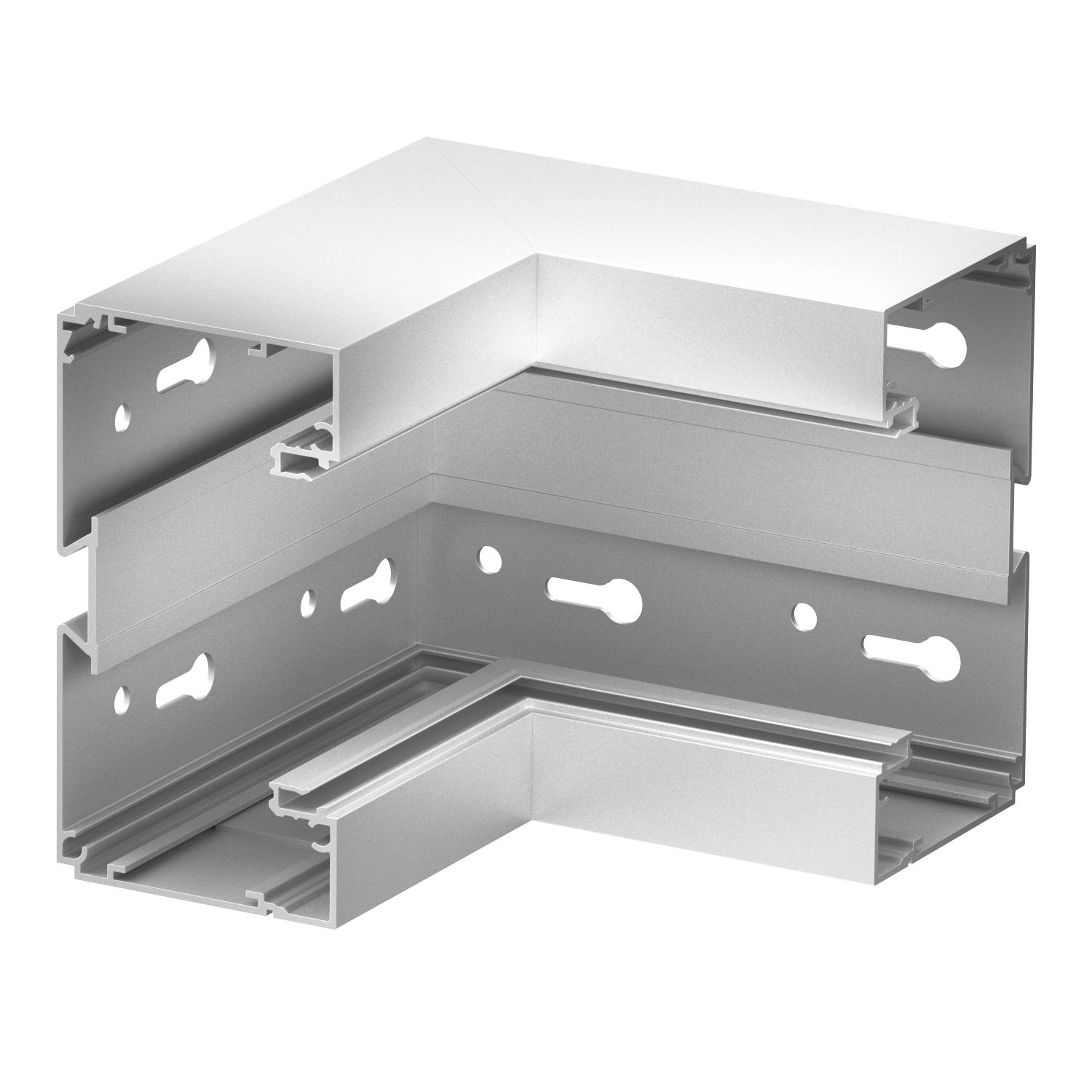

Product descriptionInternal corner as a fitting for changing the direction of the Signa Style device installation trunking.
Cut-concealing.
-
- Technical data
-
Technical data

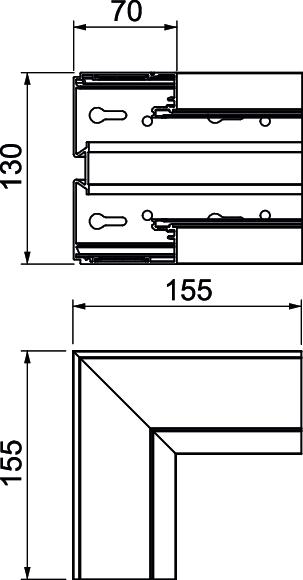

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 12,2276 kg CO2e / 1 Piece Colour aluminium Cover mounting type Internal Cover width 79 mm Dimension 70x130x155 Duct connector no for duct dimension 70x130 for duct width 130 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 155 mm Material Aluminium Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film yes Shape Asymmetrical Surface Anodised Version for Base Width 130 mm - All types
- Downloads
-
Data sheet BRA IE70130 EL / 6133277 , 0.25MB , pdfEU declaration of conformity BRA IE70130 EL / 6133277 , 0.10MB , pdfUK Declaration of Conformity BRA IE70130 EL / 6133277 , 0.09MB , pdfREACH Declaration of conformity BRA IE70130 EL / 6133277 , 0.12MB , pdfRoHS Declaration of conformity BRA IE70130 EL / 6133277 , 0.12MB , pdfLabel approval VDE symbol approval Signa Style , 2.04MB , pdfMounting instructions Signa Style device installation trunking , 9.32MB , pdfNo invitation to tender text is available for this product.
