Internal corner cover, for duct type WDK 13025 40 | 25 | 13 | | | Oyster white; RAL 1013
morepic-1 morepic-2 video-1

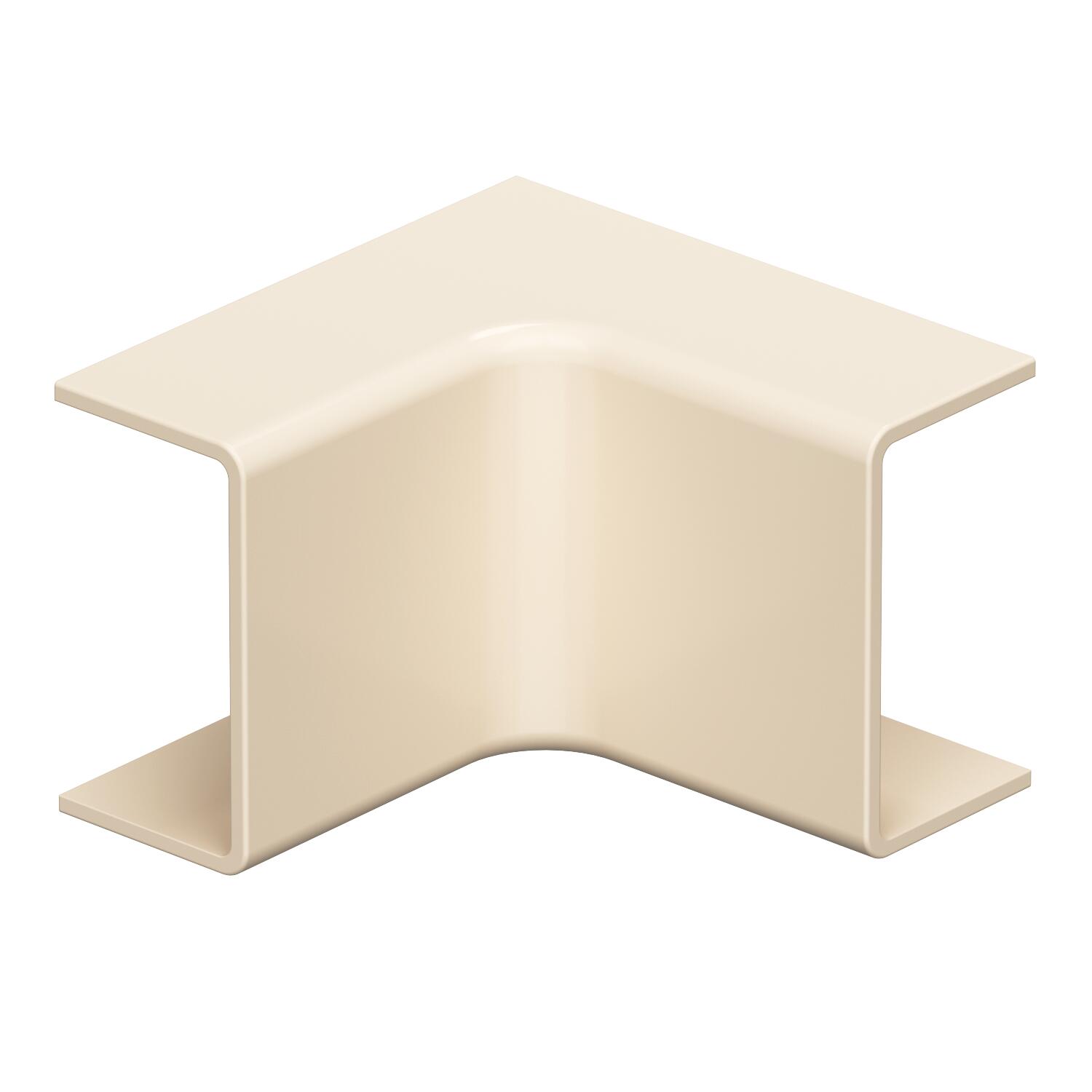

Internal corner cover, for duct type WDK 13025

Item no. 6191833 | EAN 4012195959359

40 mm
25 mm
13 mm
Product description
Product description
Internal corner hood for changing the direction of the WDK raised floor trunking, type 13025. Incl. coupling for the raised floor.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,0623 kg CO2e / 1 Piece
Colour Oyster white; RAL 1013
Dimension 15x40x40mm
Fastening type Lockable
Halogen-free no
Height 13 mm
Length 40 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Hood fitting
Width 25 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
WDK HI13025PW 40 mm 25 mm 13 mm Oyster white; RAL 1013 6191833
10 piece
WDK HI13025RW 40 mm 25 mm 13 mm Pure white; RAL 9010 6191835
10 piece
Downloads

Download
Download

Download
Download
Download

EU declaration of conformity WDK HI13025PW / 6191833 , 0.11MB , pdf
Download
UK Declaration of Conformity WDK HI13025PW / 6191833 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HI13025PW / 6191833 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HI13025PW / 6191833 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
