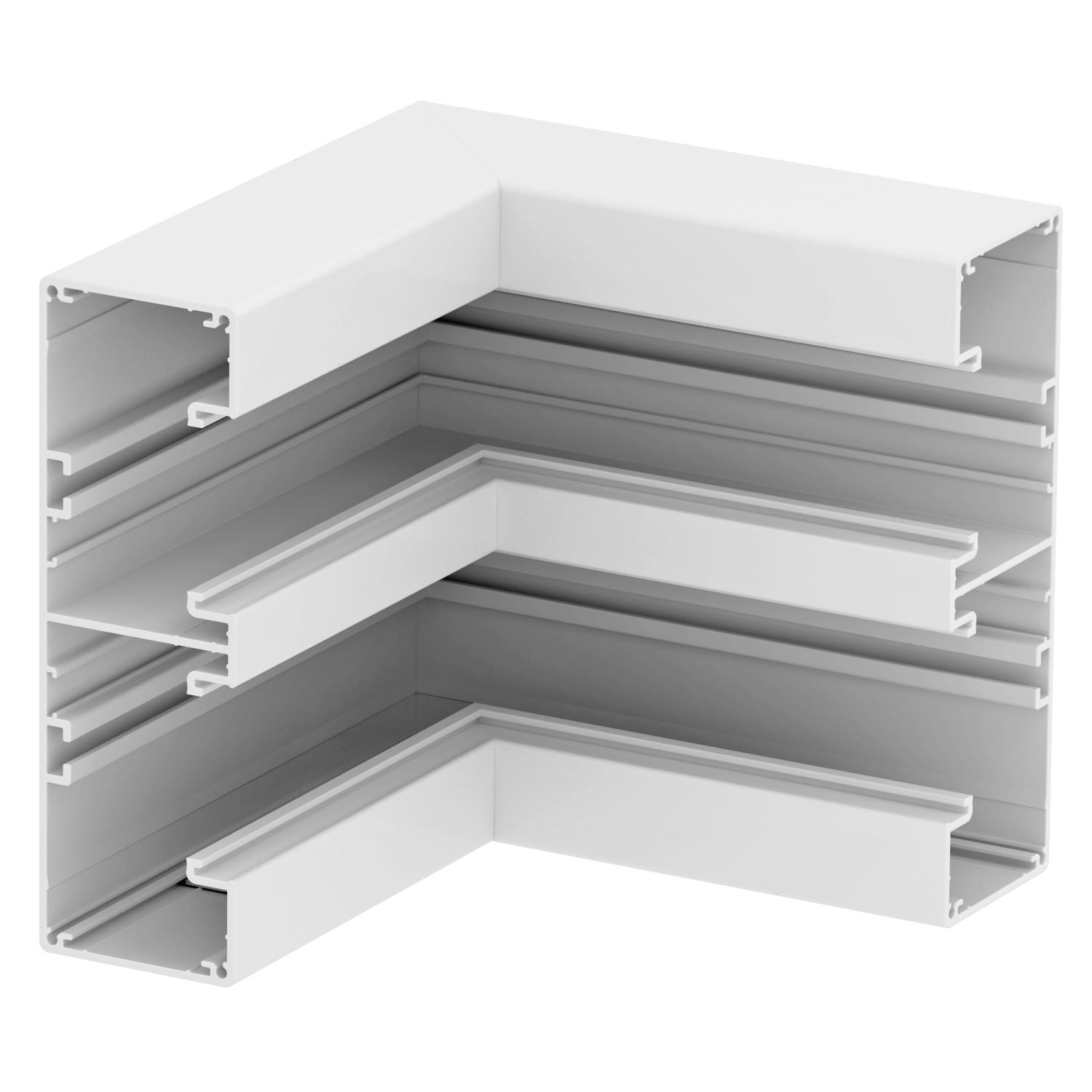

Internal corner, for device installation trunking Rapid 45-2 type GA-53165
Item no. 6112620 | EAN 4012196418572
- Product description
-
Product descriptionCorner 90° aluminium for changing the direction of device installation trunking Rapid 45-2 GA...
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
-
- Technical data
-
Technical data

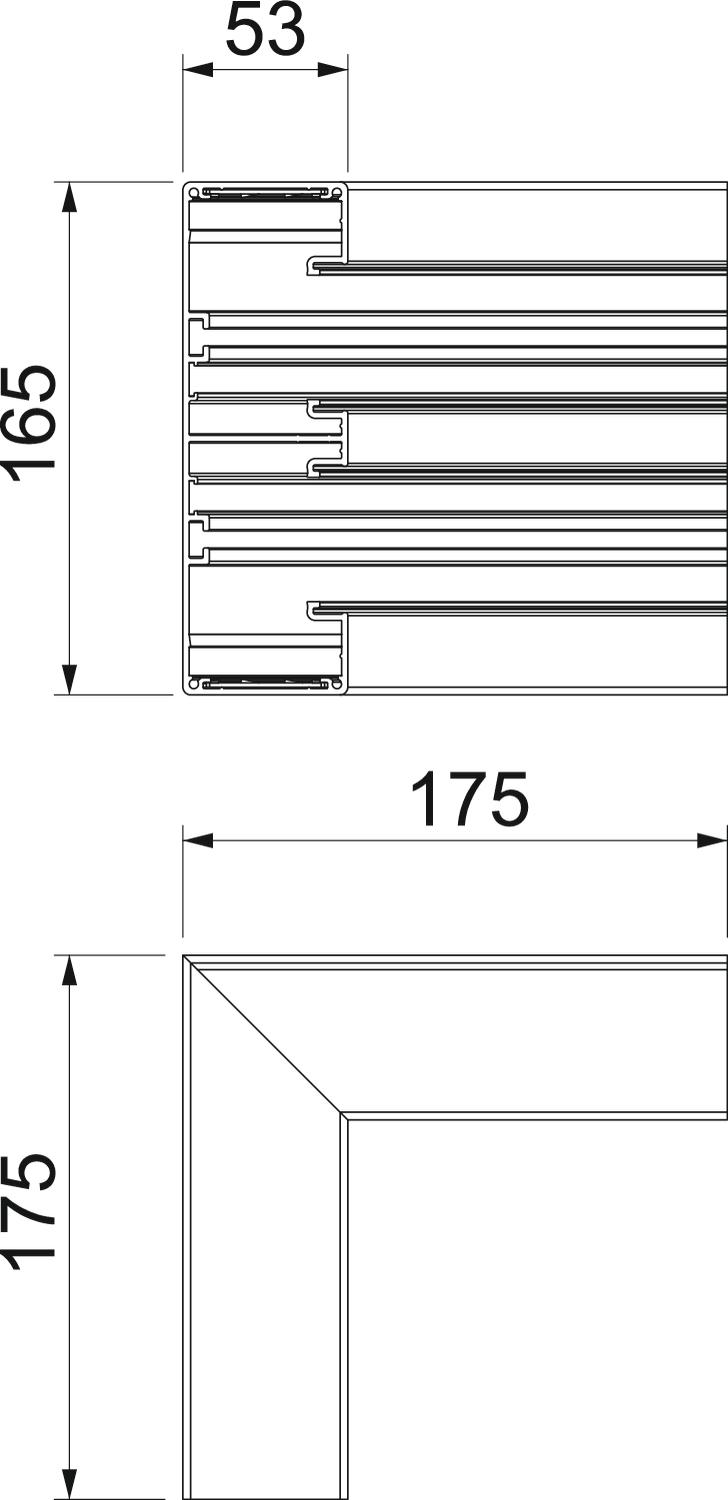

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 13,4058 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 45 mm Cover width 2 45 mm Dimension 53x165x175 Duct connector no for duct dimension 53 x 165 mm for duct width 165 mm for trunking height 53 mm Halogen-free yes Height 53 mm Length 175 mm Material Aluminium Mounting perforation in base no Number of covers 2 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK10 Protective film yes Shape Symmetrical Version for Base Width 165 mm - All types
- Downloads
-
Data sheet GA-IS53165RW / 6112620 , 0.21MB , pdfEU declaration of conformity GA-IS53165RW / 6112620 , 0.10MB , pdfUK Declaration of Conformity GA-IS53165RW / 6112620 , 0.09MB , pdfREACH Declaration of conformity GA-IS53165RW / 6112620 , 0.12MB , pdfRoHS Declaration of conformity GA-IS53165RW / 6112620 , 0.12MB , pdfLabel approval VDE symbol approval, Rapid 45-2 GA , 0.20MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
