Internal corner, for device installation trunking Rapid 45-2 type GK-53100
Item no. 6113062 | EAN 4012196419234
- Product description
-

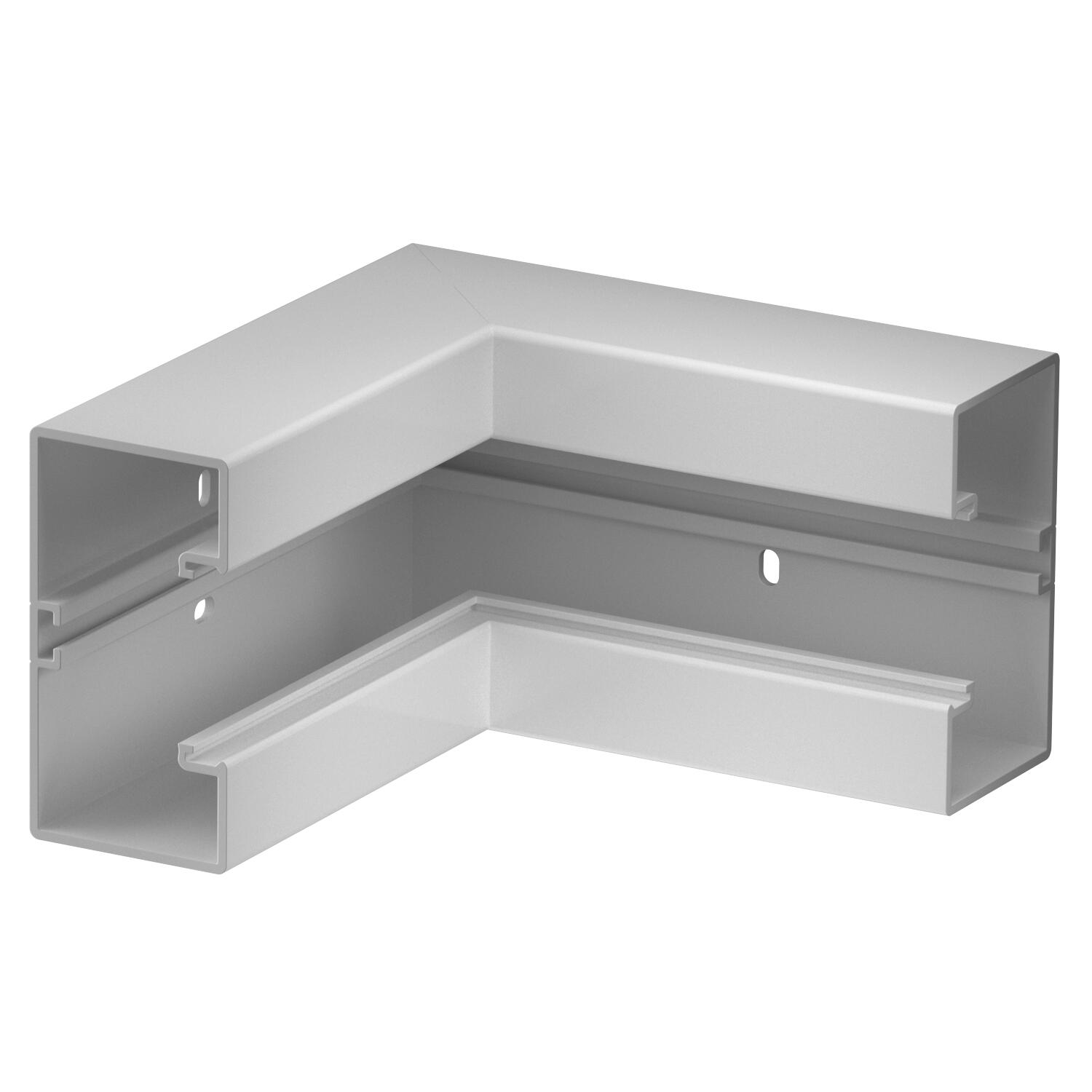

Product description90° internal corner for changing the direction of the Rapid 45-2 device installation trunking.
-
- Technical data
-
Technical data

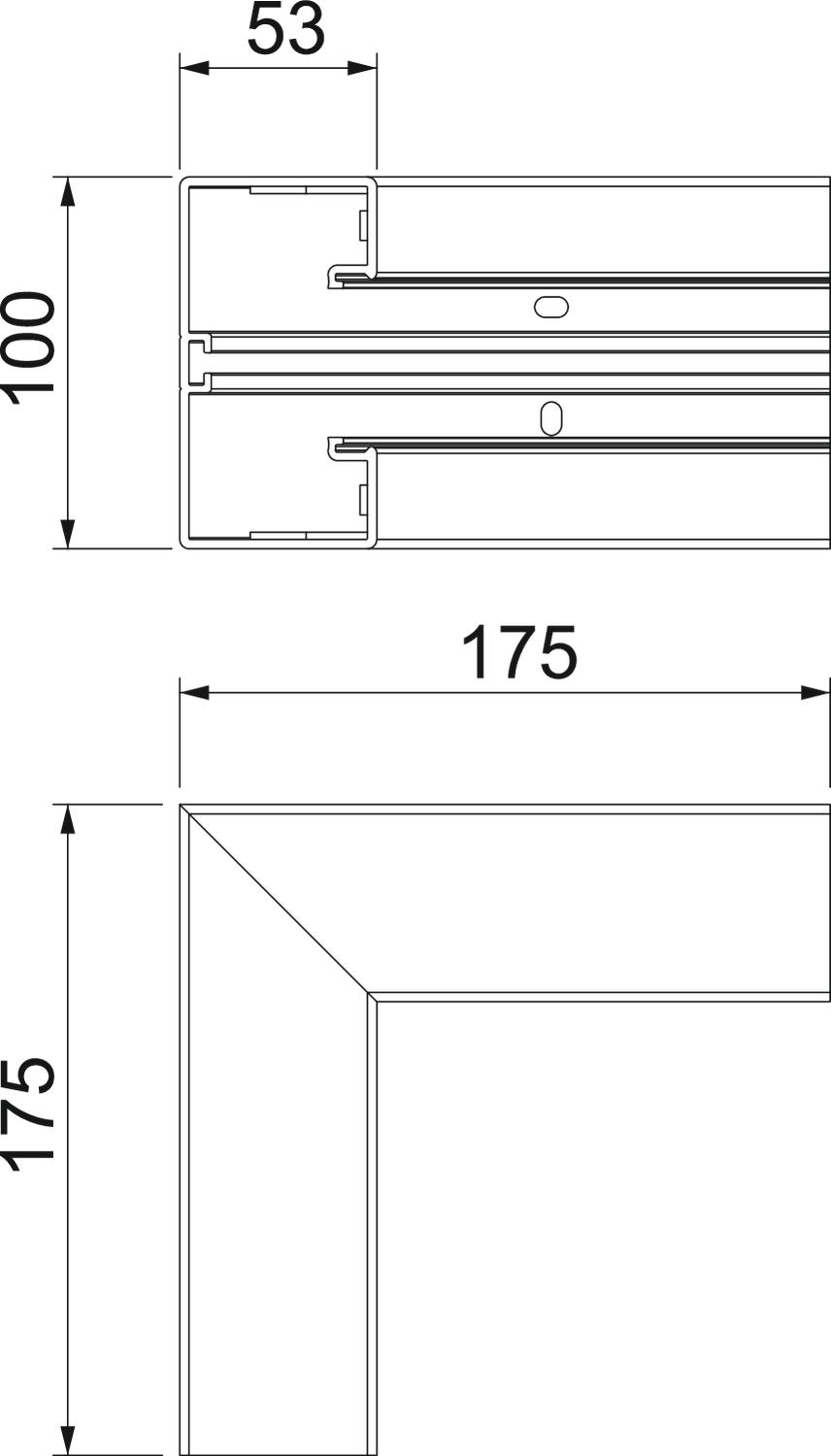

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 1,6295 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Cover mounting type Internal Cover width 45 mm Dimension 175x175x100 Duct connector no for duct dimension 53 x 100 mm for duct width 100 mm for trunking height 53 mm Halogen-free no Height 53 mm Length 175 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film yes Shape Symmetrical Version for Base Width 100 mm - All types
- Downloads
-
Data sheet GK-IS53100LGR / 6113062 , 0.17MB , pdfEU declaration of conformity GK-IS53100LGR / 6113062 , 0.10MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
