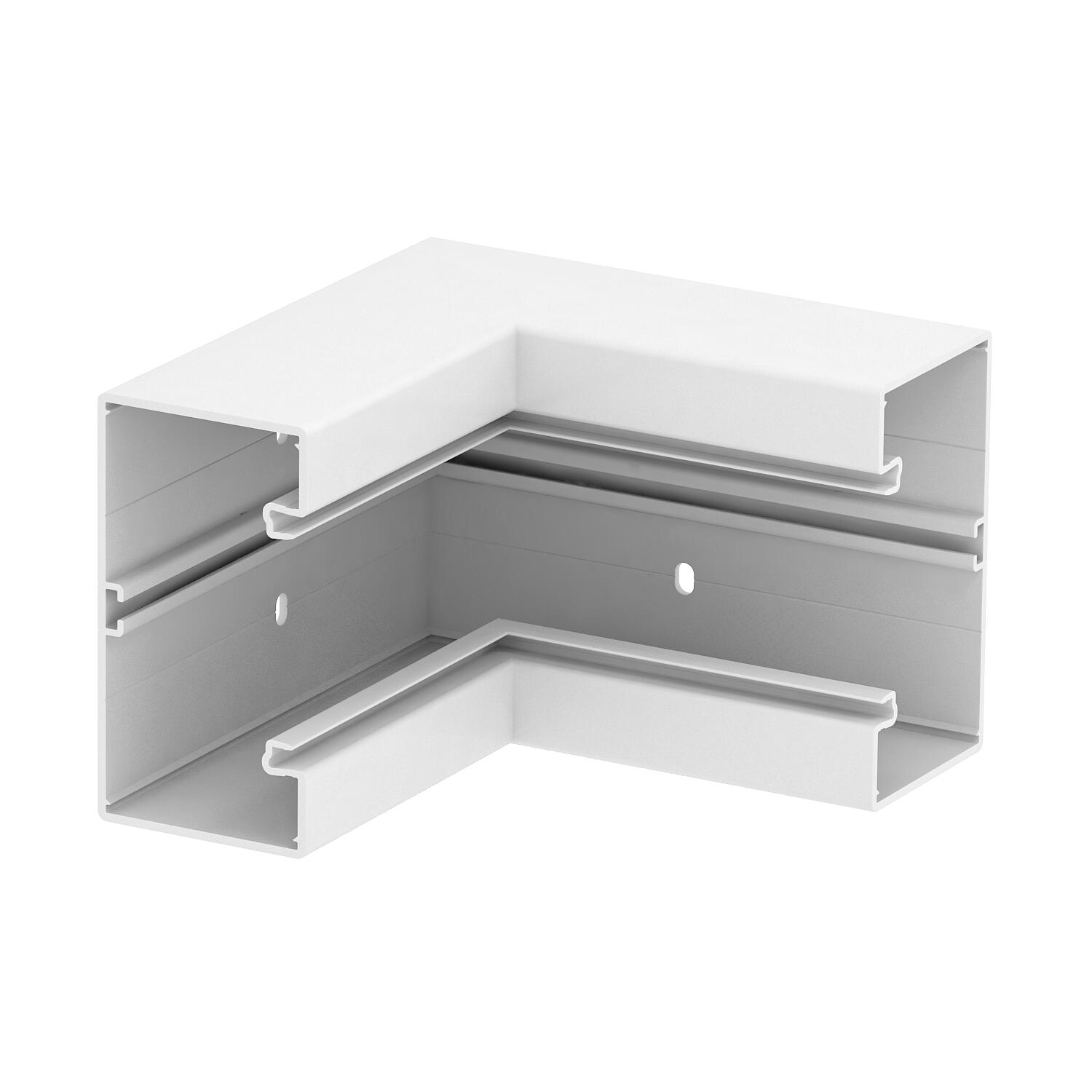

Internal corner, for device installation trunking Rapid 80 type GK-70130
Item no. 6274540 | EAN 4012195656876
- Product description
-
Product descriptionInternal corner for changing the direction of the GK device installation trunking.
-
- Technical data
-
Technical data

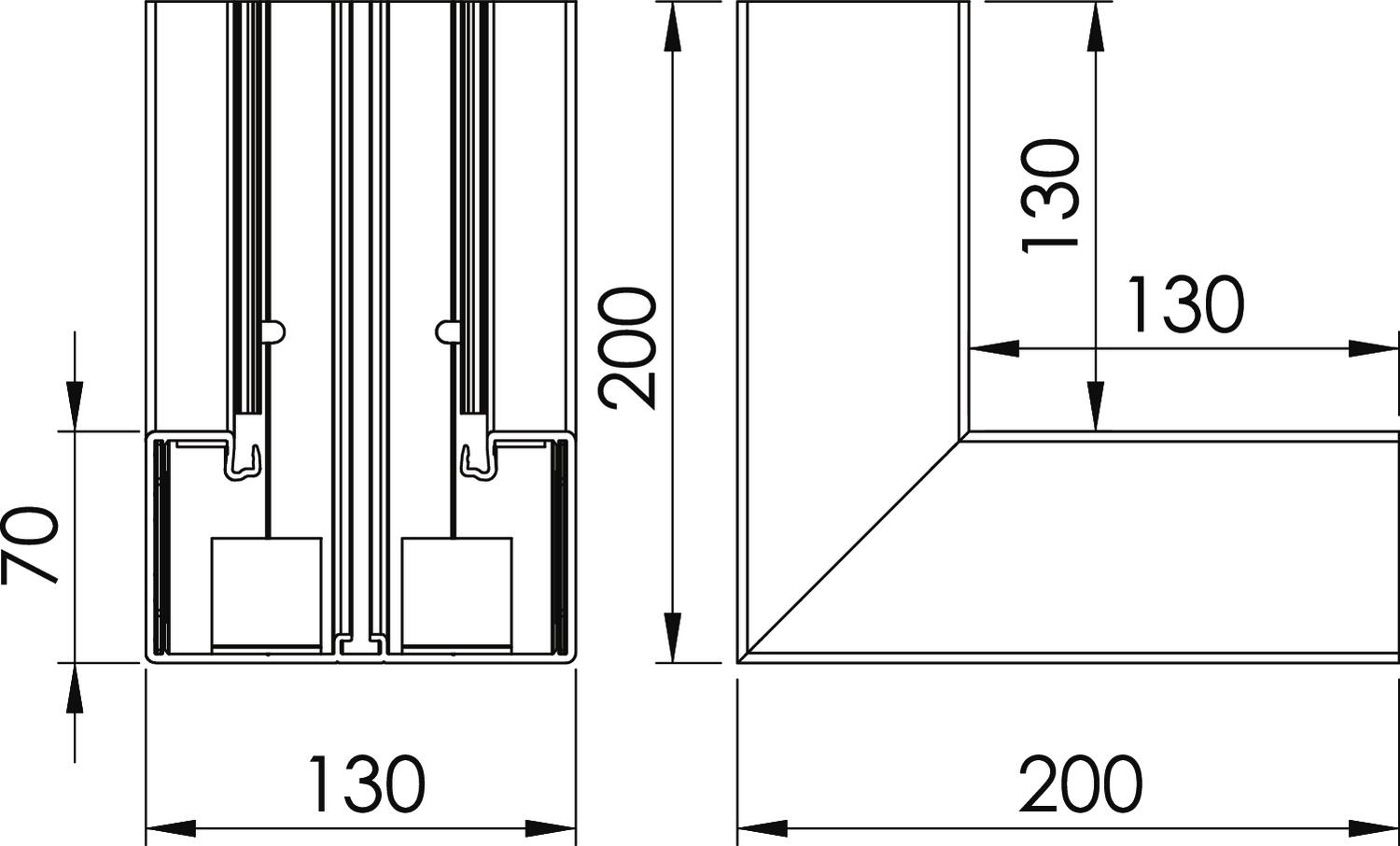

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 2,208 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 76,5 mm Dimension 70x130mm Duct connector no for duct width 130 mm for trunking height 70 mm Halogen-free no Height 70 mm Length 200 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film yes Shape Symmetrical Version for Base Width 130 mm - All types
- Downloads
-
Data sheet GK-I70130RW / 6274540 , 0.22MB , pdfSafety data sheet GK-I70130RW / 6274540 , 0.02MB , pdfEU declaration of conformity GK-I70130RW / 6274540 , 0.10MB , pdfREACH Declaration of conformity GK-I70130RW / 6274540 , 0.12MB , pdfRoHS Declaration of conformity GK-I70130RW / 6274540 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
