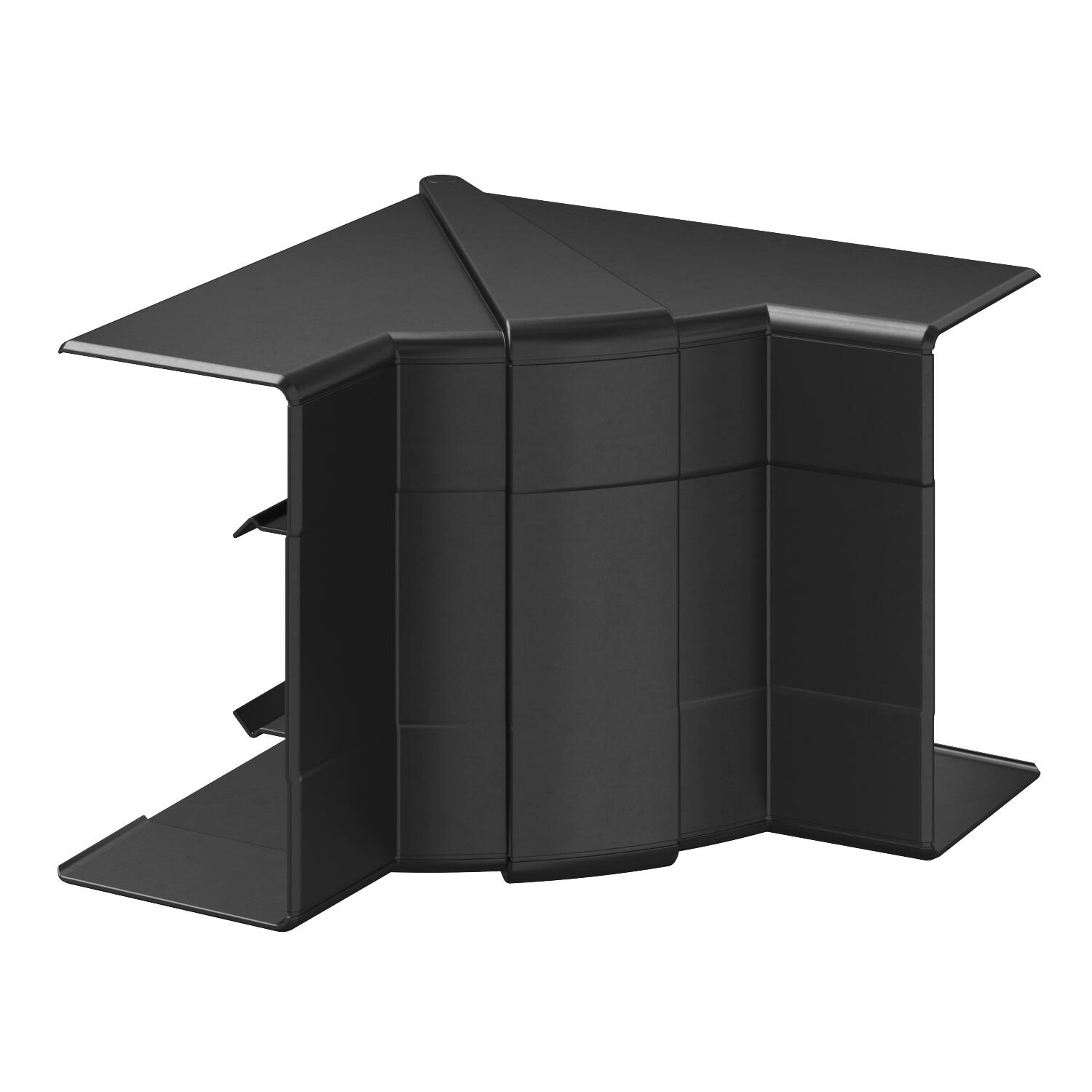

Internal corner hood, for device installation trunking Rapid 45-2 type GK-53100

Item no. / Types

Colour

Product description

Product description

Internal corner for changing the direction of Rapid 45 device installation trunking.

Technical data

Angle range, max.	97 mm
Angle range, min.	83 mm
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	0,8818 kg CO2e / 1 Piece
Colour	Jet black; RAL 9005
Cover mounting type	Cross-over
Dimension	110x145x145
Duct connector	no
for duct dimension	53 x 100 mm
for duct width	100 mm
for trunking height	53 mm
Halogen-free	yes

Height	58 mm
Length	145 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Number of covers	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protective film	no
Shape	Symmetrical
Version for	Hood fitting
Width	110 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
GK-IH53100RW	Pure white; RAL 9010	6113070	piece	1 piece
GK-IH53100LGR	Light grey; RAL 7035	6113072	piece	1 piece
GK-IH53100SW	Jet black; RAL 9005	6113073	piece	1 piece
GK-IH53100AL	aluminium	6113074	piece	1 piece
