Internal corner TRI IE500500 85 | 90 | 90 | | | Pure white; RAL 9010
morepic-1 morepic-2

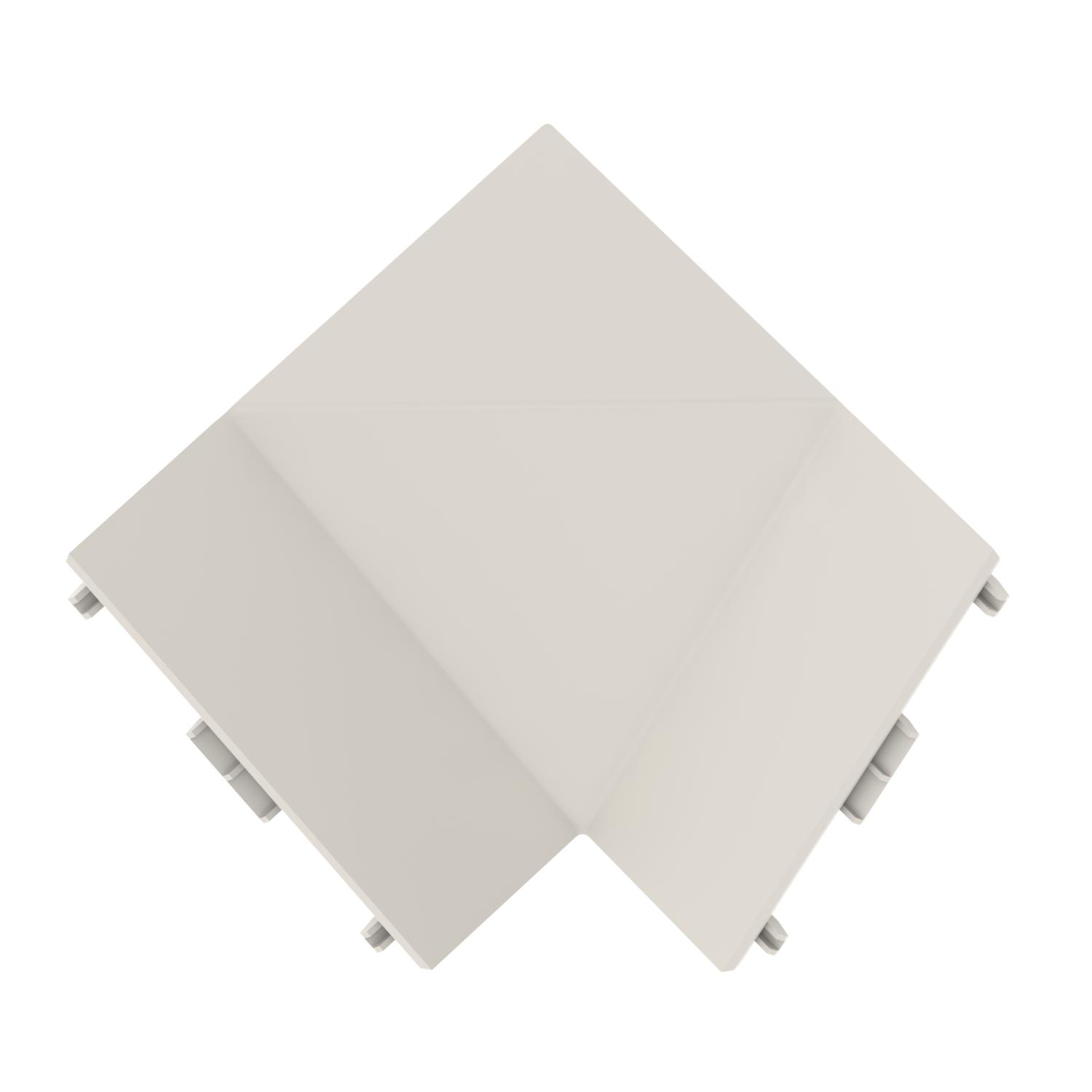

Internal corner TRI IE500500

Item no. 6131172 | EAN 4012196723270

6131172 / TRI IE5050 rws
85 mm
90 mm
90 mm
Pure white; RAL 9010
Product description
Product description
Internal corner as a fitting for changing the direction of the 50 corner trunking.

Cut-concealing.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Angle range, min. 90 mm
Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,076 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Fastening type Lockable
Halogen-free no
Height 90 mm
Length 85 mm
Material Polyvinylchloride
Protective film no
Version for Hood fitting
Width 90 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
TRI IE5050 rws 85 mm 90 mm 90 mm Pure white; RAL 9010 6131172
10 piece
Downloads

Download

Download
Download

EU declaration of conformity TRI IE5050 rws / 6131172 , 0.10MB , pdf
Download
REACH Declaration of conformity TRI IE5050 rws / 6131172 , 0.12MB , pdf
Download
RoHS Declaration of conformity TRI IE5050 rws / 6131172 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
