Joint conncetor set, cable height 80 mm
Item no. 7218031 | EAN 4012197450953
- Product description
-

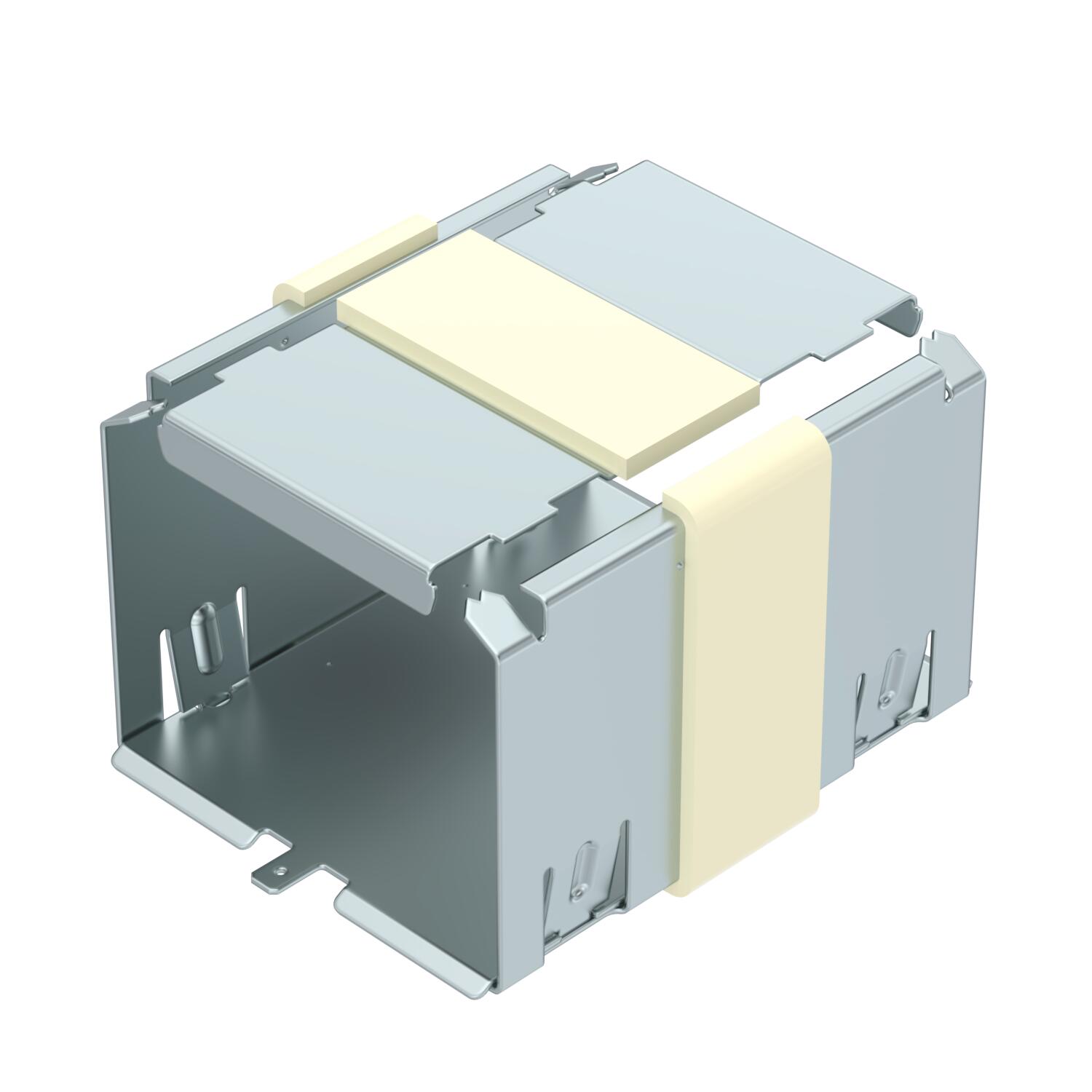

Product descriptionJoint connector set, consisting of a connector for the duct base and cover support. With integrated seal for toolless connection of the PYROLINE® Rapid PLM installation duct and fittings. Allows continuous connection of the protective conductors.
-
- Technical data
-
Technical data

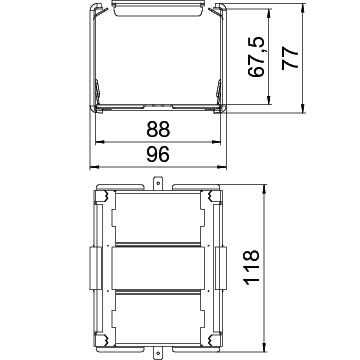

Classification EI − installation duct 90 Colour zinc Dimension 118x94x78 Dimension H 77 mm Dimension L 118 mm Dimension W 96 mm Fire protection class to EN 13501-2 EI90 Height 77 mm Internal height 67,5 mm Internal width 88 mm Jacketing Without Length 118 mm Material Steel Suitable for outdoor use no Surface Strip galvanized Width 96 mm - All types
- Downloads
-
Data sheet PLM SIC 0810 FS / 7218031 , 0.16MB , pdfEU declaration of conformity PLM SIC 0810 FS / 7218031 , 0.11MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
