Joint connector set, duct height 40 mm
Item no. 7218029 | EAN 4012197450915
- Product description
-

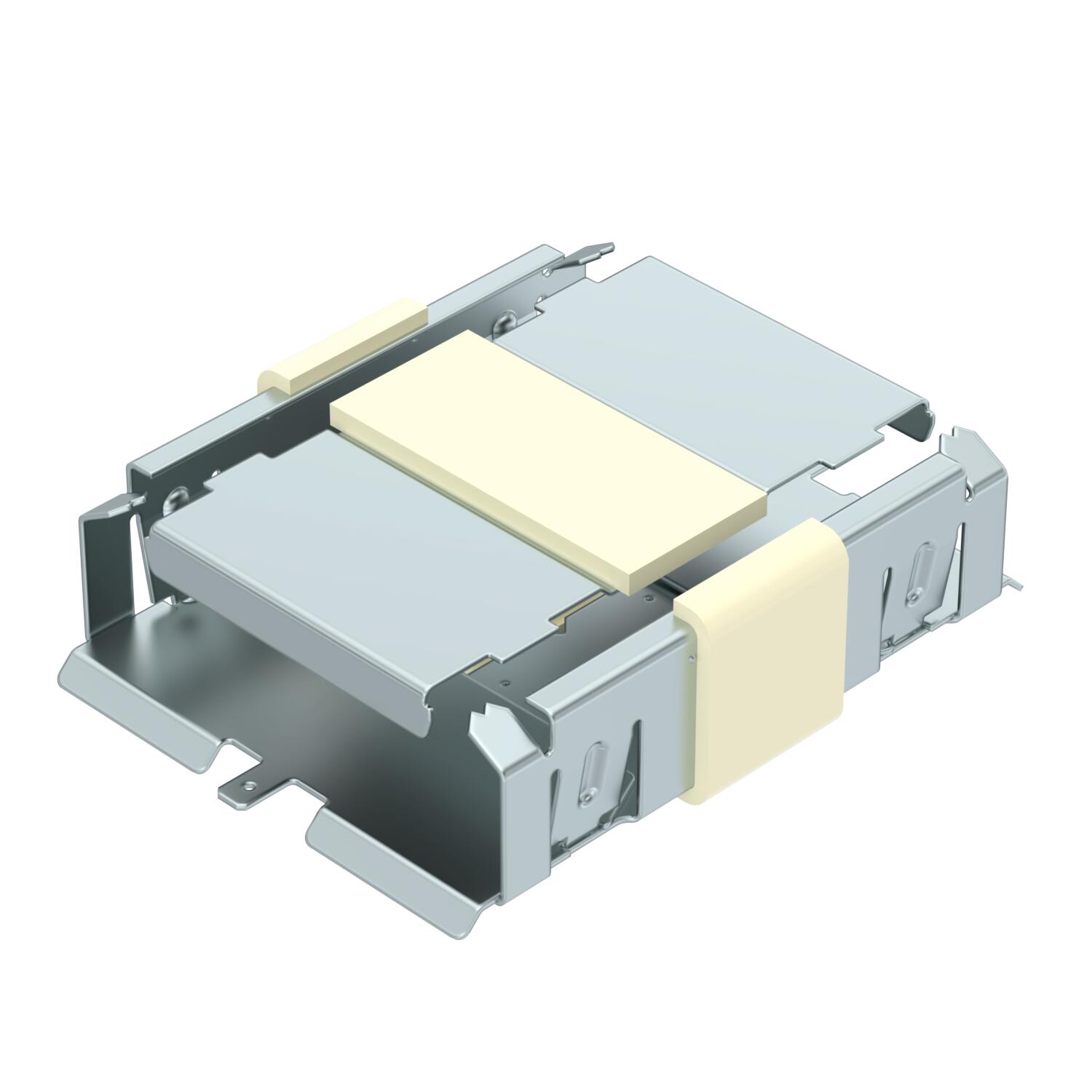

Product descriptionJoint connector set, consisting of a connector for the duct base and cover support. With integrated seal for toolless connection of the PYROLINE® Rapid PLM installation duct and fittings. Allows continuous connection of the protective conductors.
-
- Technical data
-
Technical data

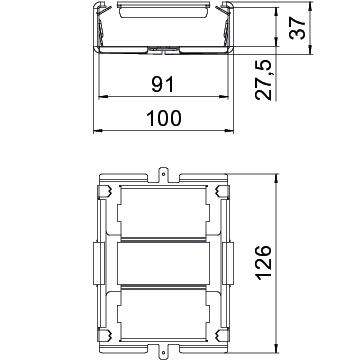

Classification EI − installation duct 90 Colour zinc Dimension 118x94x38 Dimension H 37 mm Dimension L 126 mm Dimension W 100 mm Fire protection class to EN 13501-2 EI90 Height 37 mm Internal height 27,5 mm Internal width 91 mm Jacketing Without Length 126 mm Material Steel Suitable for outdoor use no Surface Strip galvanized Width 100 mm - All types
- Downloads
-
Data sheet PLM SIC 0410 FS / 7218029 , 0.16MB , pdfEU declaration of conformity PLM SIC 0410 FS / 7218029 , 0.11MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
