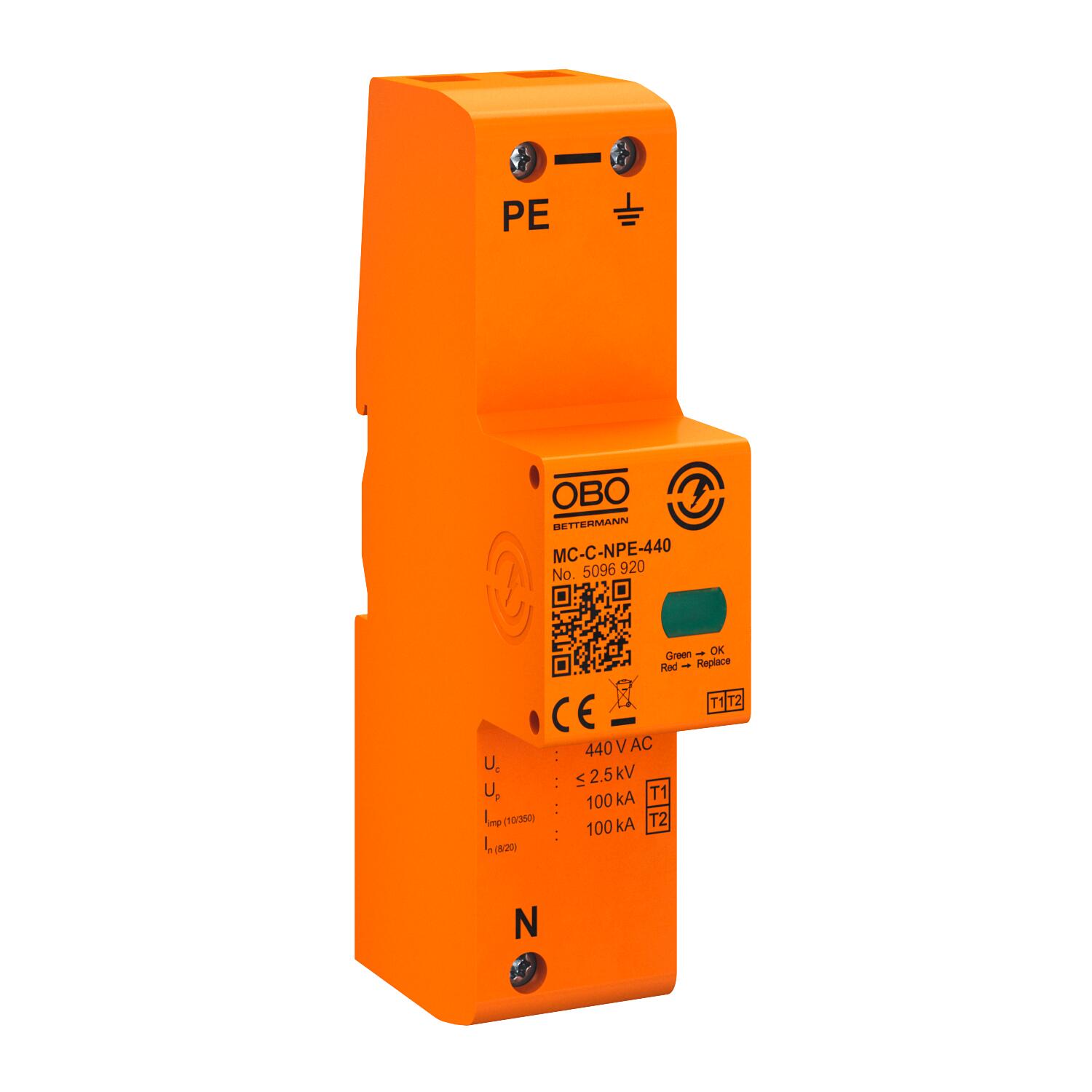

Lightning current arrester MC-C-NPE
Item no. 5096920 | EAN 4012197431860
- Product description
-
Product descriptionLightning current arrester, type 1+2
• Protecion level < 2.5 kV
• Lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity 100 kA (10/350)
• Follow current quenching Ifi 100 A
• Complies with the requirements for the use in the pre-meter area according to VDE-AR-N 4100
• The FS version has a potential-free changeover contact for remote signalling
Application: Without exception for 400/690 V network systems and for the lightning protection classes I to IV only.
* Complete = Plug-in arrester and base
-
- Technical data
-

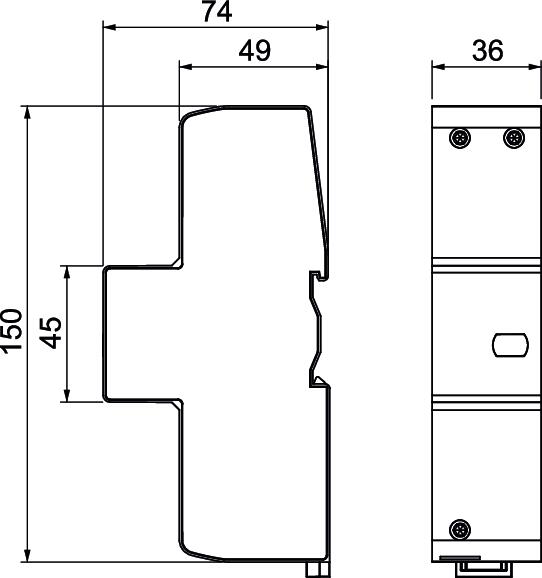

Technical data
Blow-out no CO2 Footprint (GWP) Cradle-to-Gate 0,7321 kg CO2e / 1 Piece Colour Blue Conductor cross-section, flexible (fine-wire), max. 3 AWG Conductor cross-section, flexible (fine-wire), max. 25 mm² Conductor cross-section, flexible (fine-wire), min. 10 AWG Conductor cross-section, flexible (fine-wire), min. 6 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 6 mm² DC network form no Dimension 440V Follow current quenching capacity (eff) [N-PE] 0,1 kA Height 74,5 mm Humidity, max. 95 % Humidity, min. 5 % Installation type DIN rail 35 mm Integrated back-up fuse no IT network form no Length 150 mm Lightning surge current (10/350 μs) 100 kA Maximum continuous voltage (N-PE) 440 V Maximum continuous voltage AC 440 V Nominal discharge current (8/20 µs) 100 kA Nominal discharge current (8/20 µs) [L-N] 100 kA Nominal voltage AC (50/60 Hz) 400 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Pole version N/PE Protection rating IP20 Remote signalling no Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Suitable for outdoor use no Test class, type 1 yes TN network form yes TN-C network form yes TN-C-S network form yes TN-S network form yes TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms 1200 V TT network form yes Width 36 mm - All types
- Downloads
-
Catalogue Surge protection , 28.42MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfMounting instructions Lightning current arrester MC-C-NPE , 1.72MB , pdf
