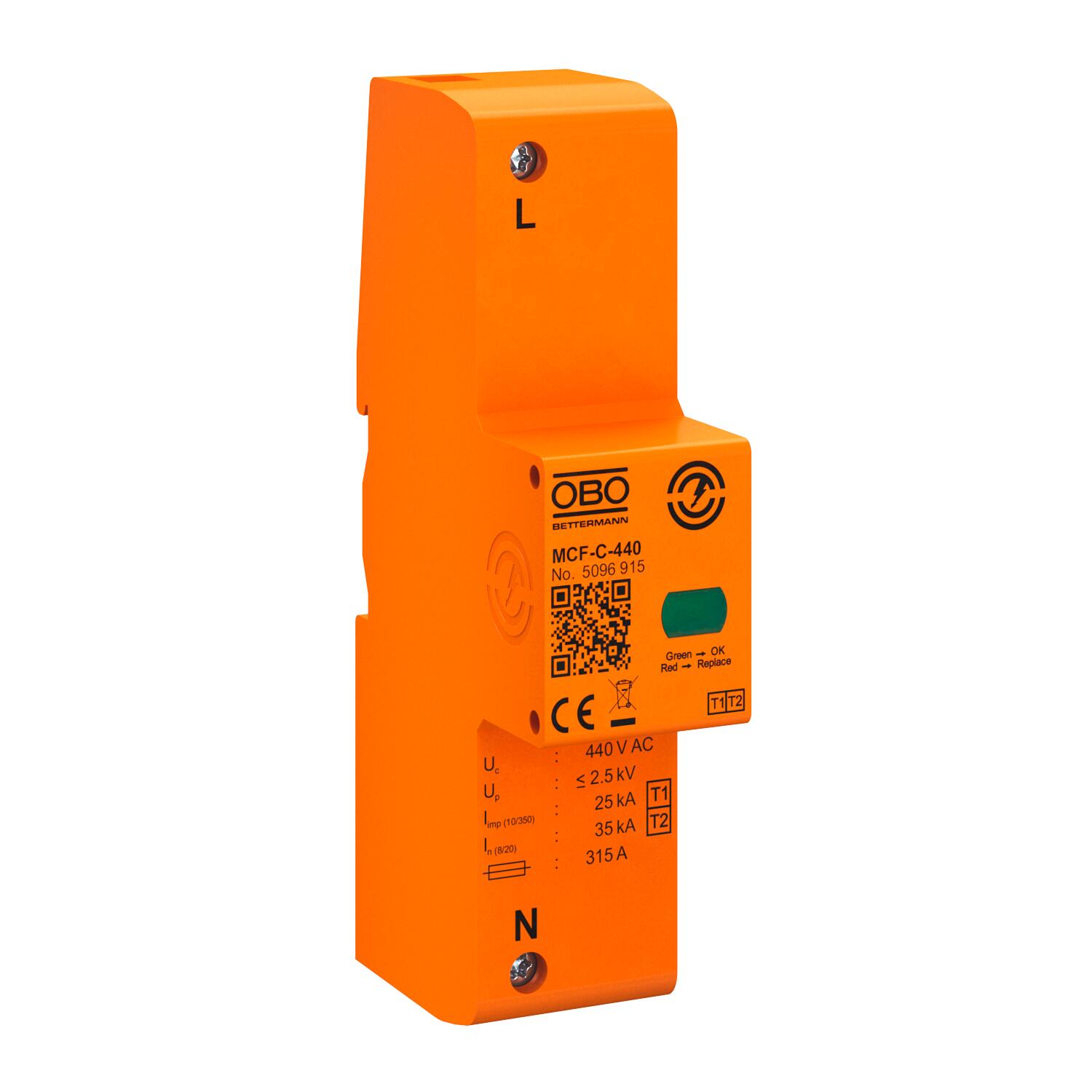

Lightning current arrester MCF-C
Item no. 5096915 | EAN 4012197431785
- Product description
-
Product descriptionLightning current arrester, type 1+2
• Protecion level < 2.5 kV
• Lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity 25 kA (10/350)
• Follow current quenching Ifi 50 kA
• Max. pre-fuse 315 A gL/gG
• Complies with the requirements for the use in the pre-meter area according to VDE-AR-N 4100
• The FS version has a potential-free changeover contact for remote signalling
Application: Without exception for 400/690 V network systems and for the lightning protection classes I to IV only.
* Complete = Plug-in arrester and base
-

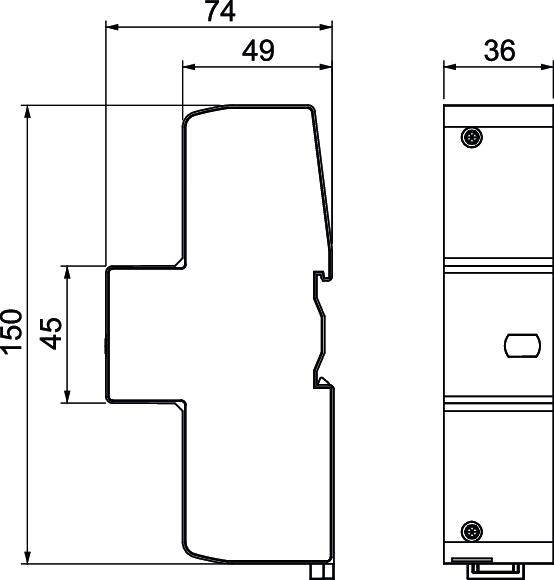

- Technical data
-
Technical data
Blow-out no CO2 Footprint (GWP) Cradle-to-Gate 0,6491 kg CO2e / 1 Piece Colour Orange Conductor cross-section, flexible (fine-wire), max. 25 mm² Conductor cross-section, flexible (fine-wire), max. 3 AWG Conductor cross-section, flexible (fine-wire), min. 10 AWG Conductor cross-section, flexible (fine-wire), min. 6 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 6 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 AWG DC network form no Dimension 440V Follow current quenching capacity (eff) [N-PE] 50 kA Height 74,5 mm Humidity, max. 95 % Humidity, min. 5 % Installation type DIN rail 35 mm Integrated back-up fuse no IT network form yes Length 150 mm Lightning surge current (10/350 μs) 25 kA Max. mains-side overcurrent protection 315 A gL/gG Maximum back-up fuse 315 A Maximum continuous voltage (L-N) 440 V Maximum continuous voltage AC 440 V Nominal discharge current (8/20 µs) 35 kA Nominal discharge current (8/20 µs) [L-N] 35 kA Nominal voltage AC (50/60 Hz) 400 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Pole version 1 Protection level [L-N] ≤2,5 Protection rating IP20 Remote signalling no Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Suitable for outdoor use no Test class, type 1 yes TN network form yes TN-C network form yes TN-C-S network form yes TN-S network form yes TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 760 V TOV voltage [L-N] ‒ withstand mode ‒ 5 s 580 V TT network form yes Width 36 mm - All types
