Locknut, metric thread with cutting teeth M12 x 1,5 | 15
morepic-1 morepic-2 morepic-3

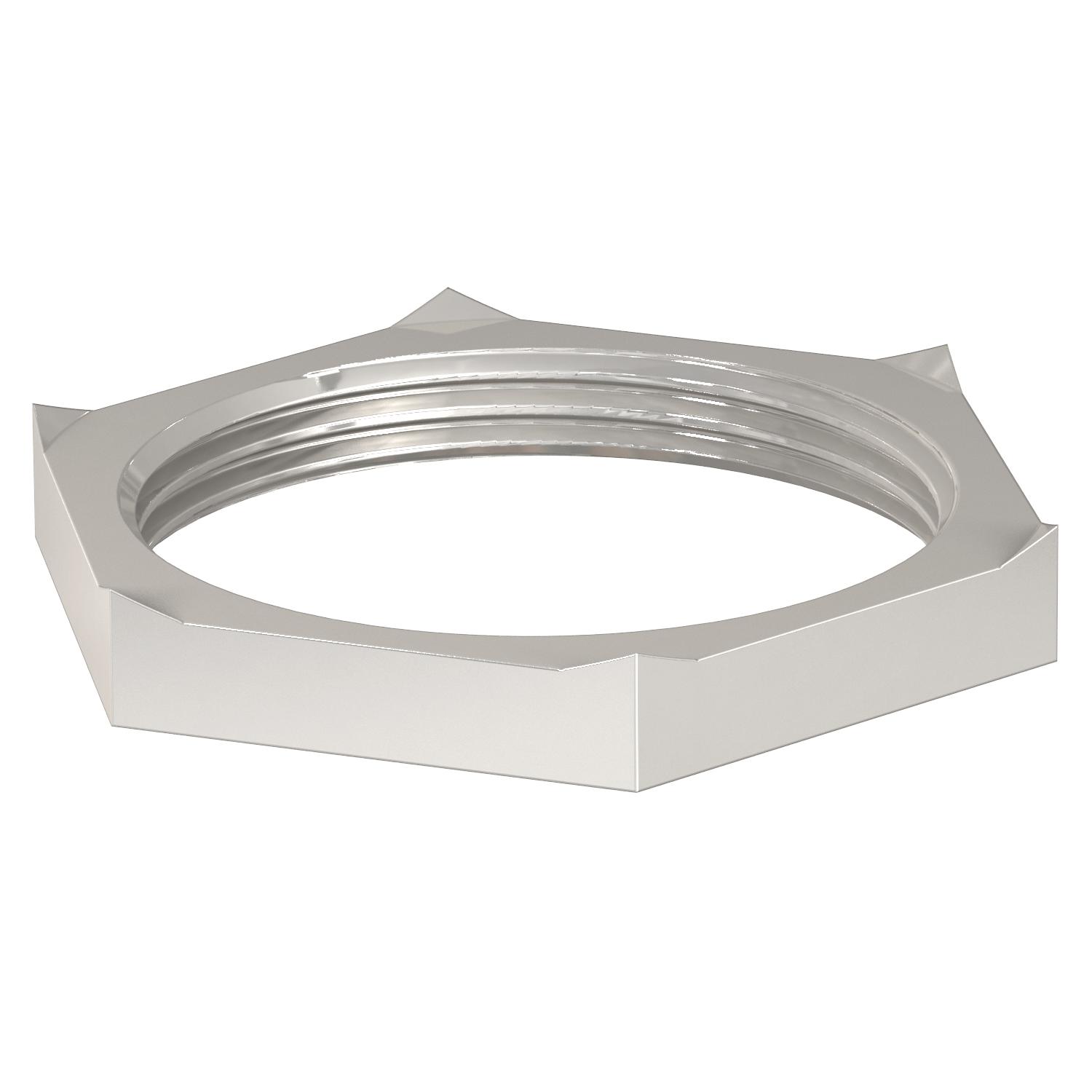

Locknut, metric thread with cutting teeth

Item no. 2091705 | EAN 4012195903710

Product description
Product description
Locknuts DIN 46319 with metric thread IEC 423.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0079 kg CO2e / 1 Piece

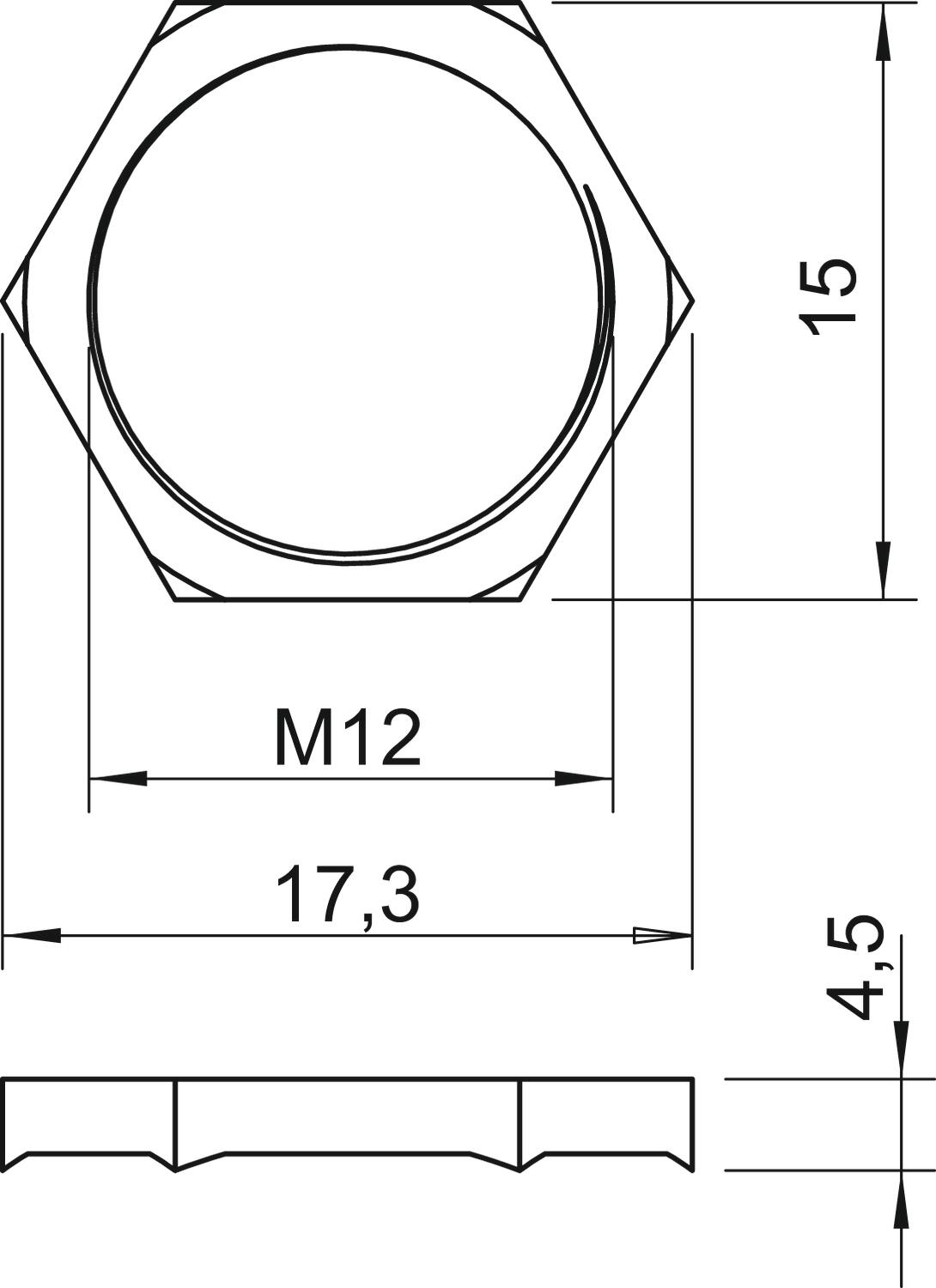

Dimension M12x1,5
Dimension E 17,3 mm
Dimension L 4,5 mm
Fibre-glass reinforced no
Halogen-free no
Impact-resistant no
Material Brass
Nominal thread size metric/PG 12
Surface Nickel-plated
Thread M12 x 1,5
Thread type Metric
WAF 15
All types

All types

Types Thread WAF Item no. Quantity SSU
169 MSS M12 M12 x 1,5 15 2091705
50 piece
169 MSS M16 M16 x 1,5 19 2091709
50 piece
169 MSS M20 M20 x 1,5 24 2091713
50 piece
169 MSS M25 M25 x 1,5 30 2091717
50 piece
169 MSS M32 M32 x 1,5 36 2091721
50 piece
169 MSS M40 M40 x 1,5 46 2091725
25 piece
169 MSS M50 M50 x 1,5 60 2091729
25 piece
169 MSS M63 M63 x 1,5 70 2091733
25 piece
