Media and communication pole for schools
Item no. 6286740 | EAN 4012197257552
- Product description
-

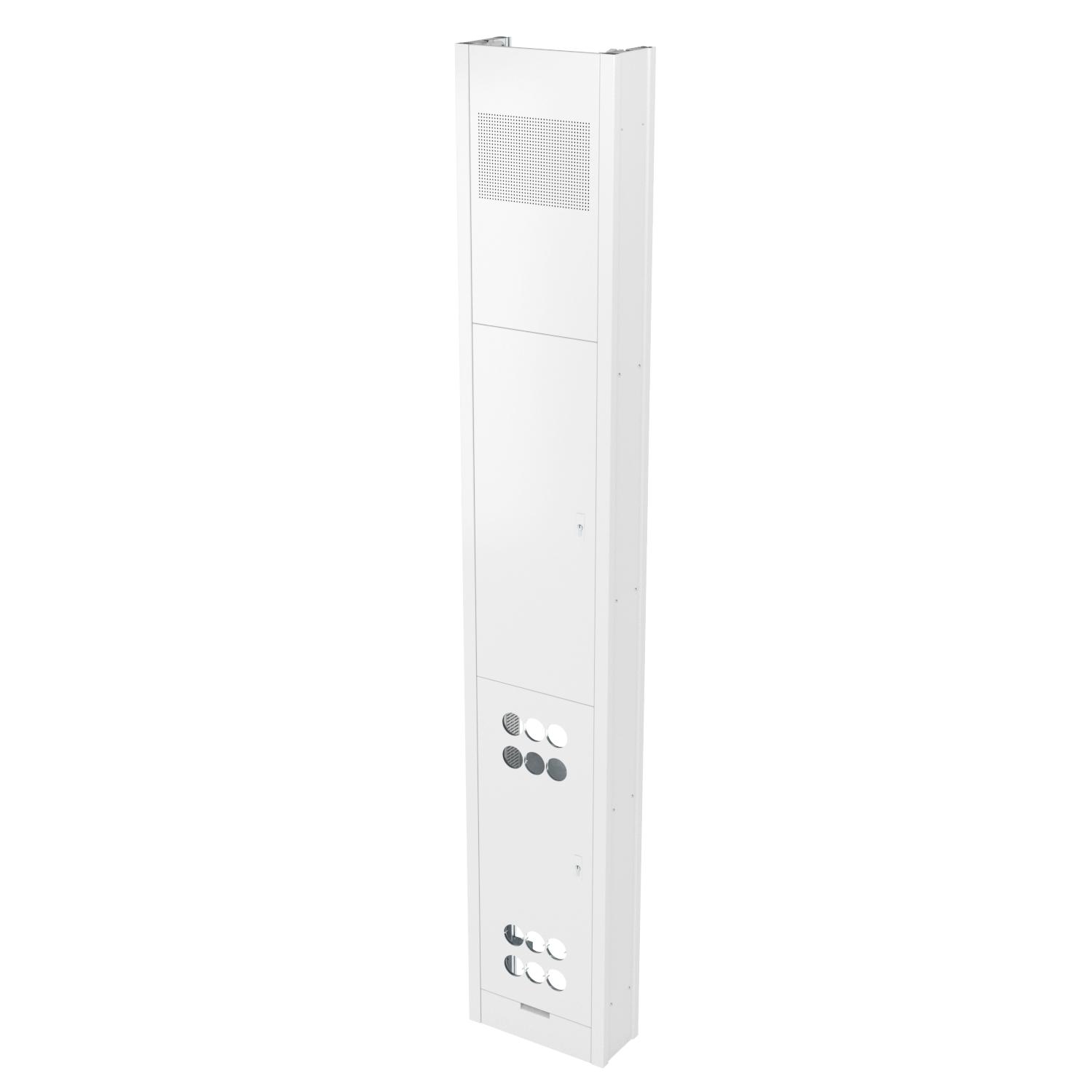

Product descriptionMedia and communication pole for accommodating electrical installation components and for vertical, multi-storey cable routing, consisting of:
- 1 acoustic field with cut-outs for sound outlet
- Space for the installation of a surface-mounted or built-in clock
- 1 distributor field with 2 low-voltage distributors behind it (2 x 36 PUs)
- 1 device field with cut-outs for accessory mounting boxes (d = 68 mm)
- 1 floor panel for cable outlet
-
- Technical data
-
Technical data

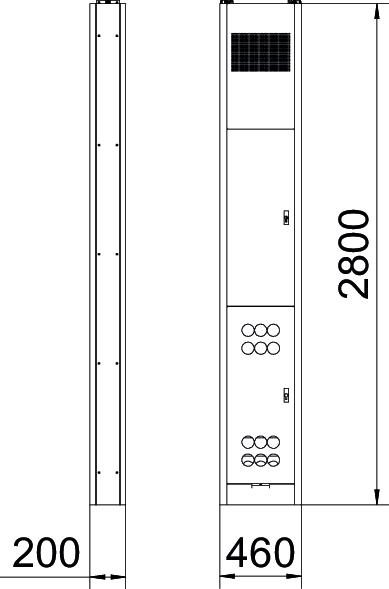

Cable entry Top/bottom Ceiling mounting no Changes according to location no CO2 Footprint (GWP) Cradle-to-Gate 326,4259 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Continuous profile no Dimension 2820x460x200 Fastening type Bolts Floor mounting yes Halogen-free yes Height 200 mm Length 2820 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Pole height, min. 2800 mm Pole shape Rectangular Protection rating IP20 Protection rating IK code IK10 Version for Miscellaneous Width 460 mm - All types
- Downloads
-
Data sheet ISSMKSRW ST P12 / 6286740 , 0.17MB , pdfEU declaration of conformity ISSMKSRW ST P12 / 6286740 , 0.11MB , pdfUK Declaration of Conformity ISSMKSRW ST P12 / 6286740 , 0.09MB , pdfLabel approval VDE label approval ISSMKS media pole , 0.48MB , pdfSelection aid Media and communication poles , 0.07MB , pdfMounting instructions Mounting instructions, media pole for schools ISSMKS , 12.78MB , pdfNo invitation to tender text is available for this product.
