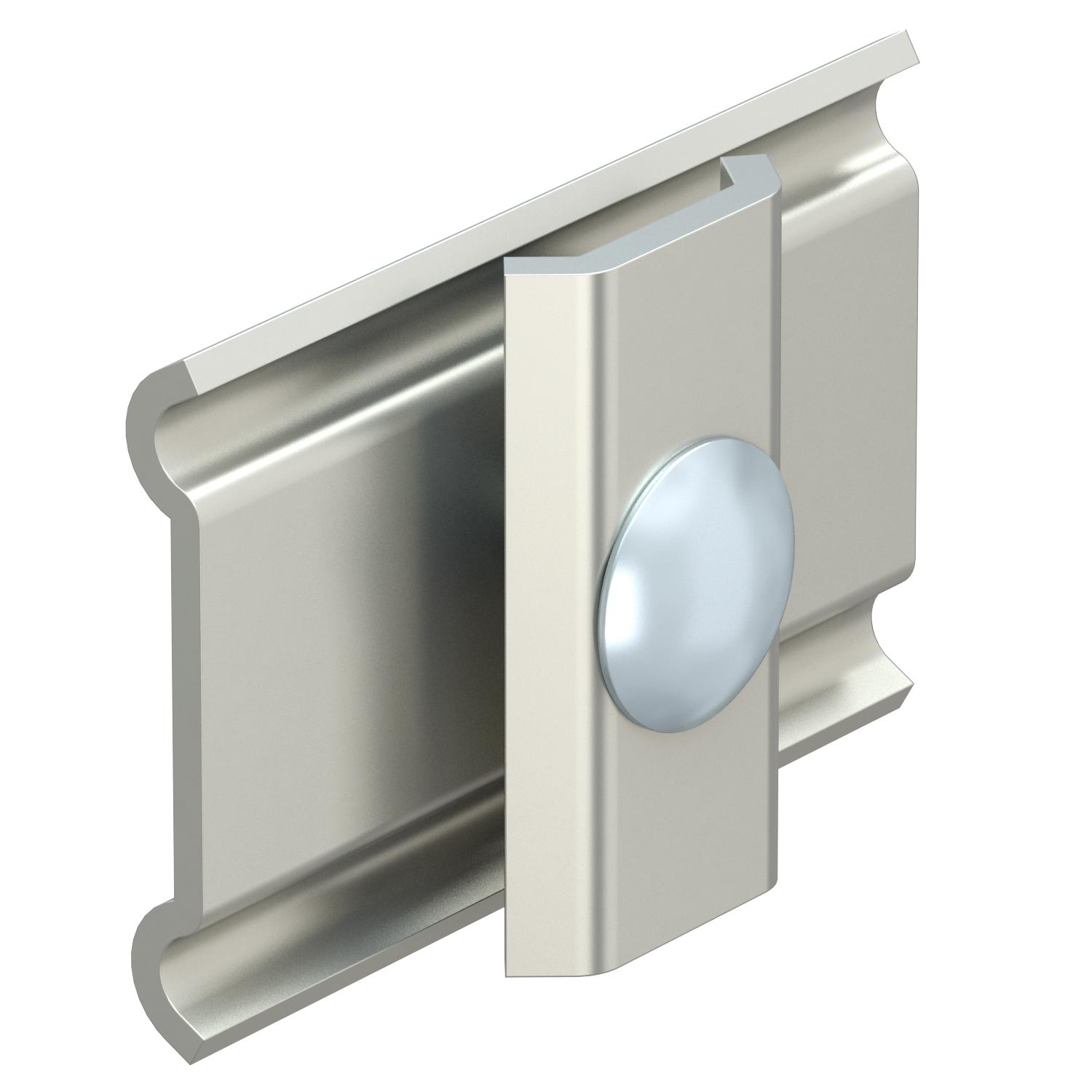

Mesh cable tray connector A2

Item no. 6016367 | EAN 4012196359899

6016367 / K 11 262 A2
40 mm
24 mm
Stainless steel 1.4301
Bright, treated
60x40
Product description
Product description
Screwed version of joint connector for mesh cable trays.

Including screw of type FRS M6 x 20.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
CO2 Footprint (GWP) Cradle-to-Gate 0,3302 kg CO2e / 1 Piece
Colour stainless steel
Connection type Screw connector

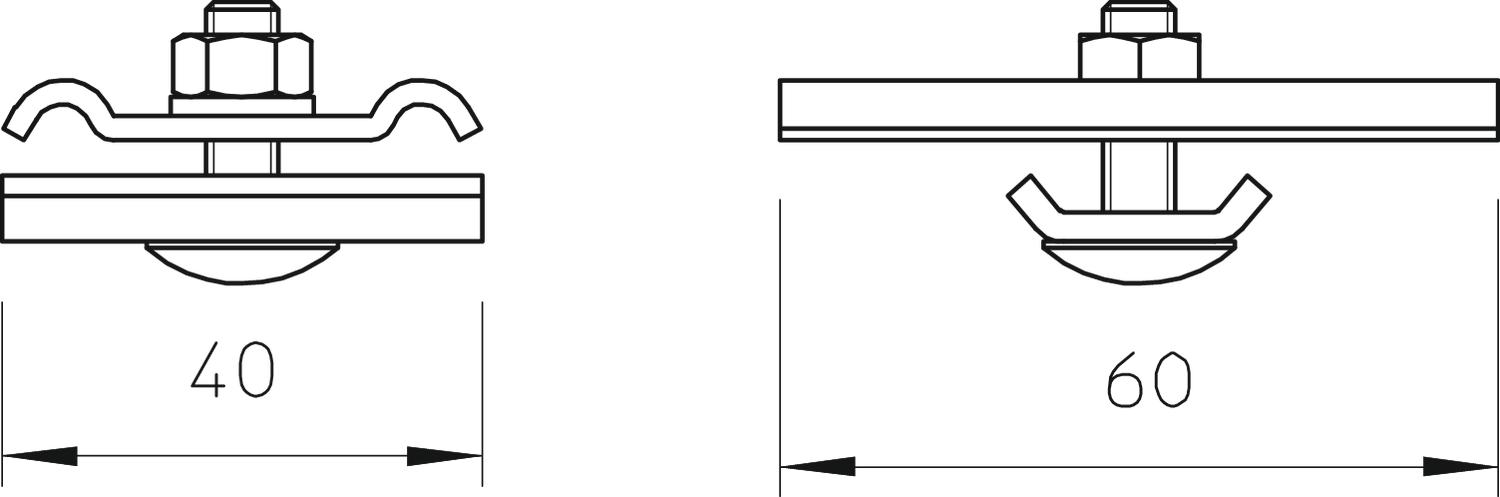

Dimension 60 x 40
Dimension 60x40
Height 0,94 in
Height 24 mm
Length 60 mm
Maintain electrical functions no
Material Stainless steel 1.4301
Rustproof steel, pickled yes
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Suitable for mesh cable tray wire, max. 4,9 mm
Suitable for mesh cable tray wire, min. 3,9 mm
Surface Bright, treated
Version for Straight connector
Width 40 mm
Width 1,57 in
All types

All types

Types Width Height Material Surface Dimension Item no. Quantity SSU
K 11 262 A2 40 mm 24 mm Stainless steel 1.4301 Bright, treated 60x40 6016367
25 piece
Downloads

Download

Download
Download

EU declaration of conformity K 11 262 A2 / 6016367 , 0.10MB , pdf
Download
REACH Declaration of conformity K 11 262 A2 / 6016367 , 0.12MB , pdf
Download
RoHS Declaration of conformity K 11 262 A2 / 6016367 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
