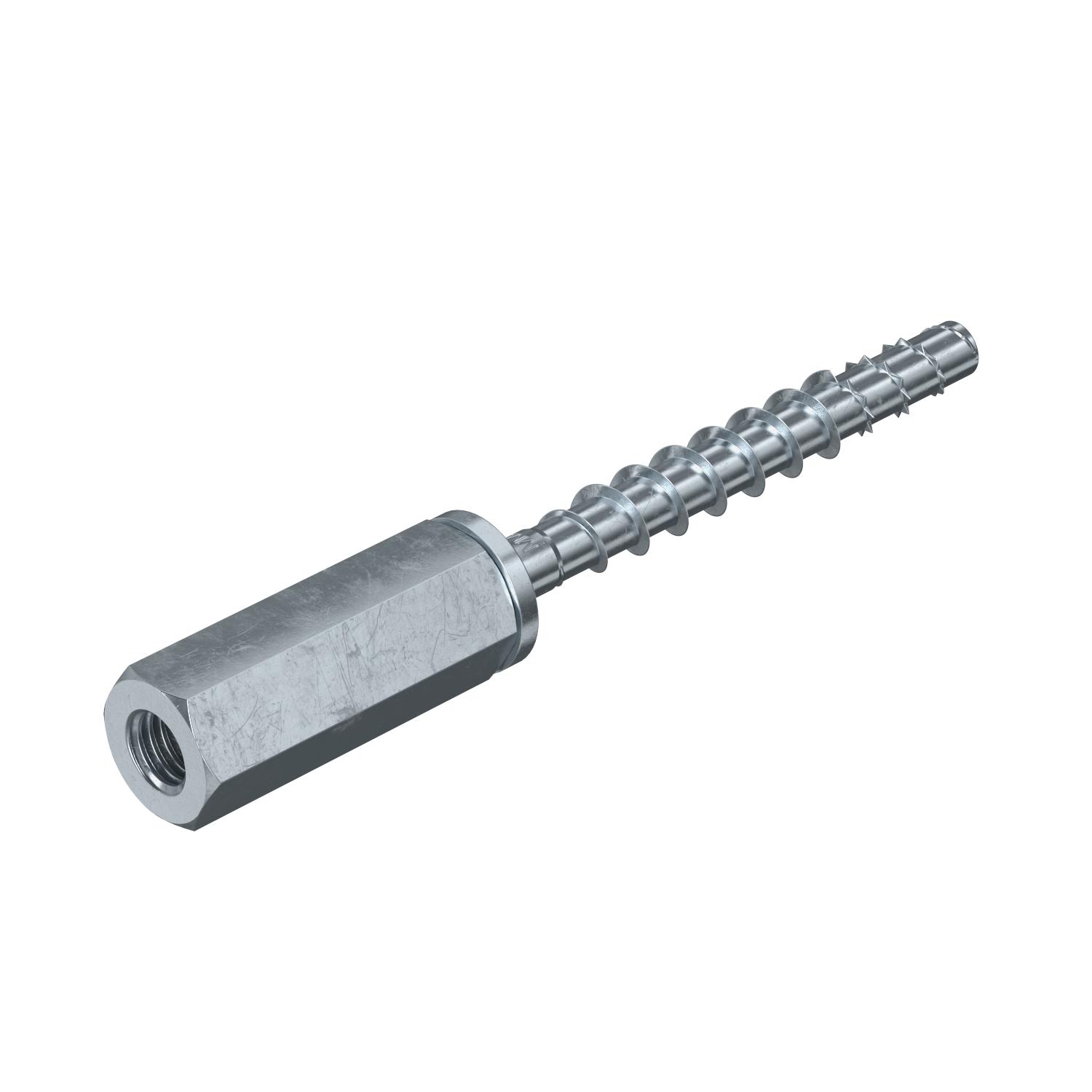

MMS-plus I 7.5x60 internal thread tie, with combination thread sleeve

Item no. 3498268 | EAN 4012196710911

6 mm
13
Product description

Product description

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With M8/M10 combination thread sleeve for fastening threaded rods.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie
Technical data

Technical data

Anchor length 53,5 mm
Dimension 7,5x60
Dimension 7,5x60
Drill hole diameter, min. 6 mm
Head shape Hexagonal
Material Steel
Screw system Hexagonal
Surface Electrogalvanized
WAF 13

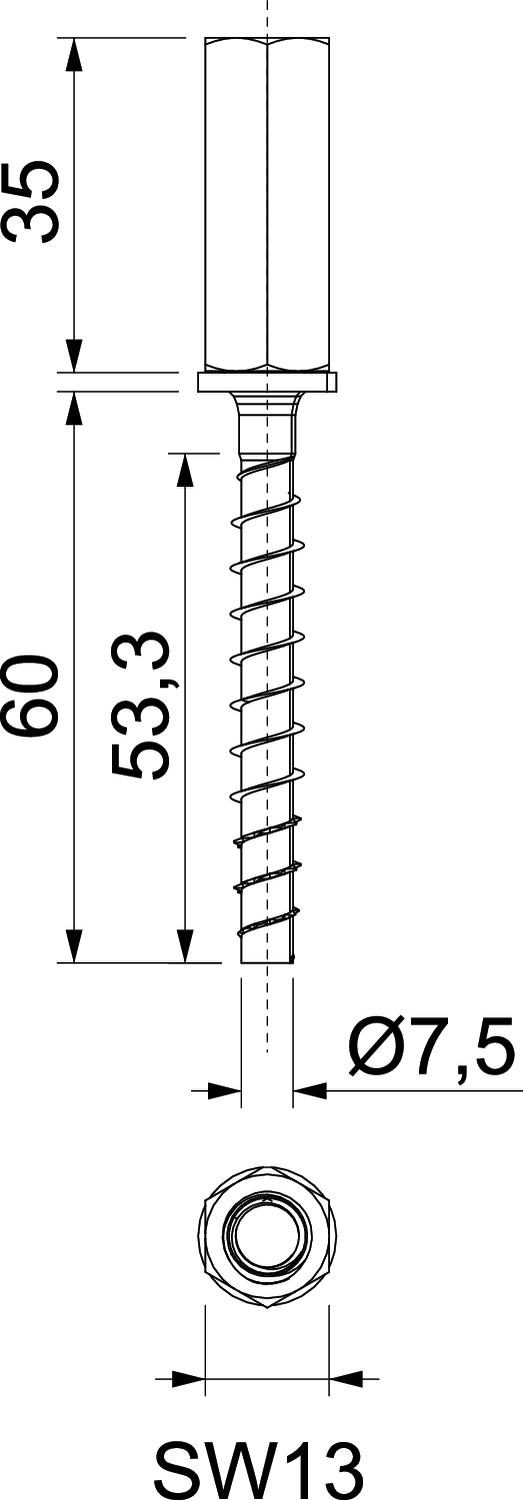

Dimensions

Dimension L 60 mm
Length 60 mm
All types

All types

Types Dimension Anchor length Drill hole diameter, min. WAF Item no. Quantity SSU
MMS+ I 7.5x40 7,5x40 33.5 mm 6 mm 13 3498266
40 piece
MMS+ I 7.5x60 7,5x60 53.5 mm 6 mm 13 3498268
40 piece
Downloads

Download

Download
Download
Download
Download

REACH Declaration of conformity MMS+ I 7.5x60 / 3498268 , 0.12MB , pdf
Download
RoHS Declaration of conformity MMS+ I 7.5x60 / 3498268 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
