Mounting and fastening plate T350
Item no. 2007884 | EAN 4012196034260
- Product description
-

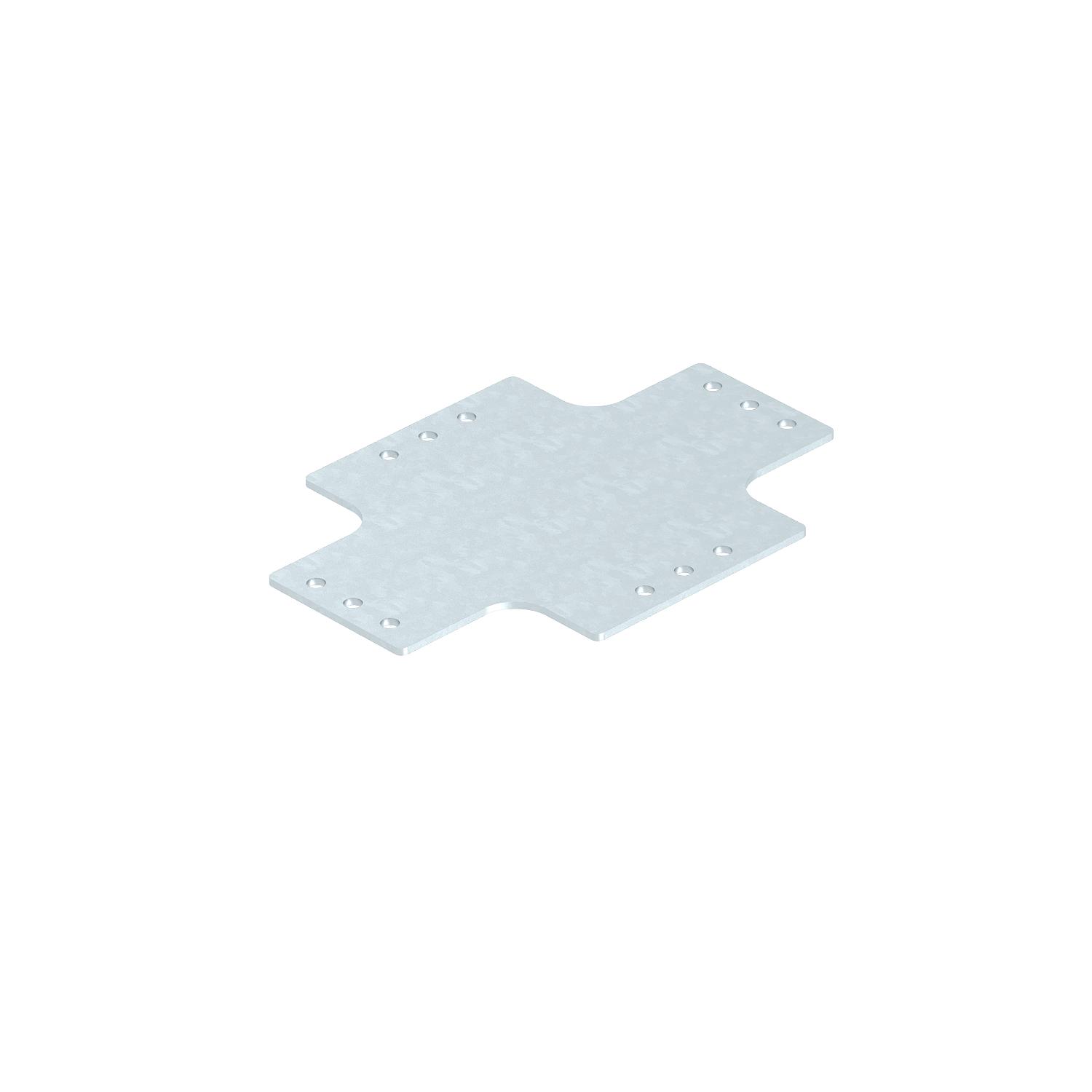

Product descriptionThis mounting and fastening plate gives the options for variable fixing of external components in the junction box. It consists of strip-galvanised sheet steel of a material thickness of 2 mm.
The appropriate fastening holes are drilled into the steel plate for the component that needs to be fixed. Then, the products can be attached onto the sheet with cable ties, screws or similar fastening materials.
Using the screws included in the scope of the delivery, the mounting fastening plate can now be fixed in the appropriate T series (T 160) junction box.
-
- Technical data
-
Technical data

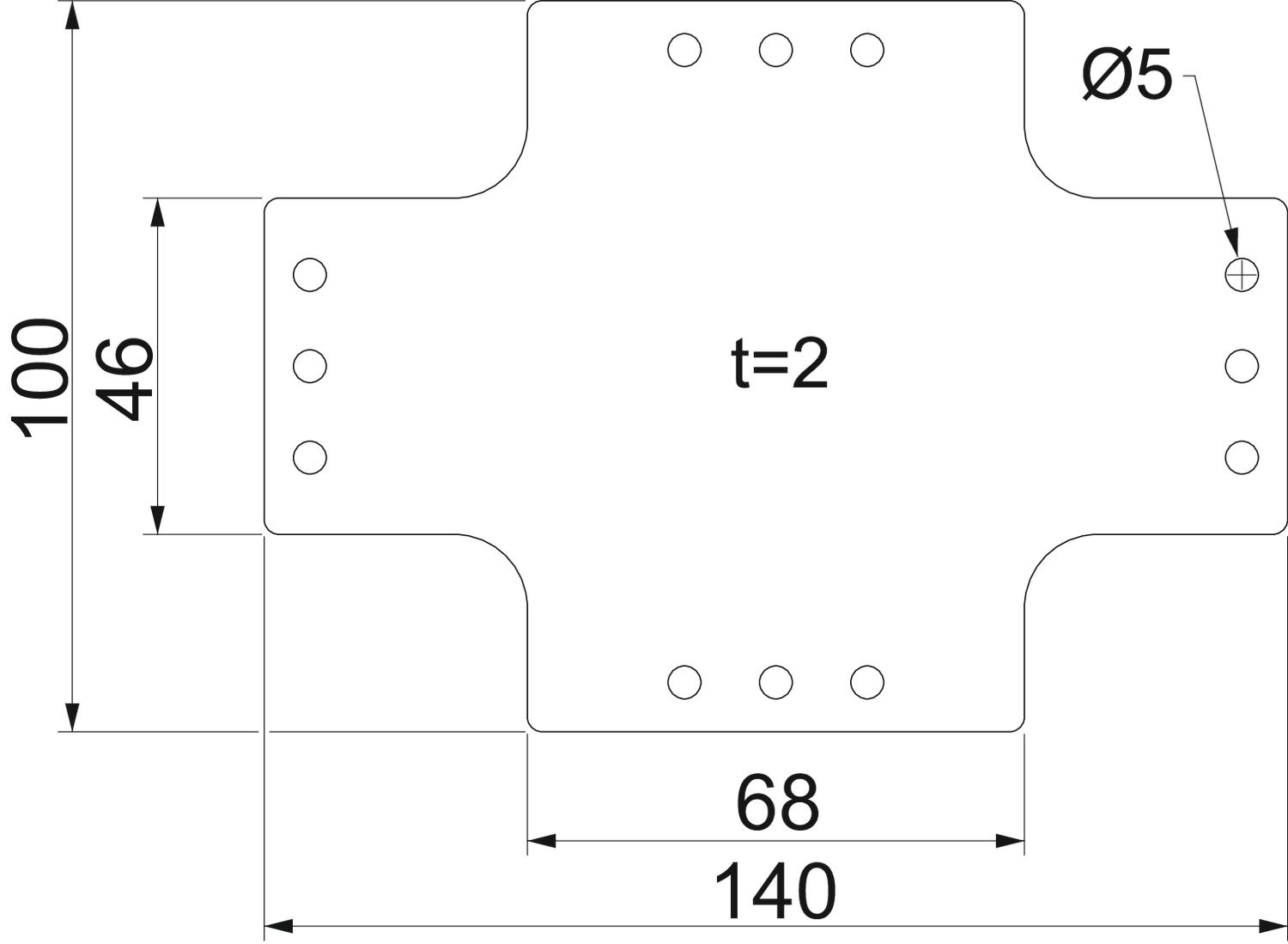

CO2 Footprint (GWP) Cradle-to-Gate 0,5665 kg CO2e / 1 Piece Dimension 140x100x2 Dimension B 100 mm Dimension B1 46 mm Dimension L 140 mm Dimension L1 68 mm Height 100 mm Material Steel Material thickness 2 mm Surface Strip galvanized Width 140 mm With perforation yes - All types
- Downloads
-
Data sheet MBP T160 / 2007884 , 0.16MB , pdfBrochure FireBox , 2.61MB , pdfREACH Declaration of conformity MBP T160 / 2007884 , 0.12MB , pdfRoHS Declaration of conformity MBP T160 / 2007884 , 0.13MB , pdf
