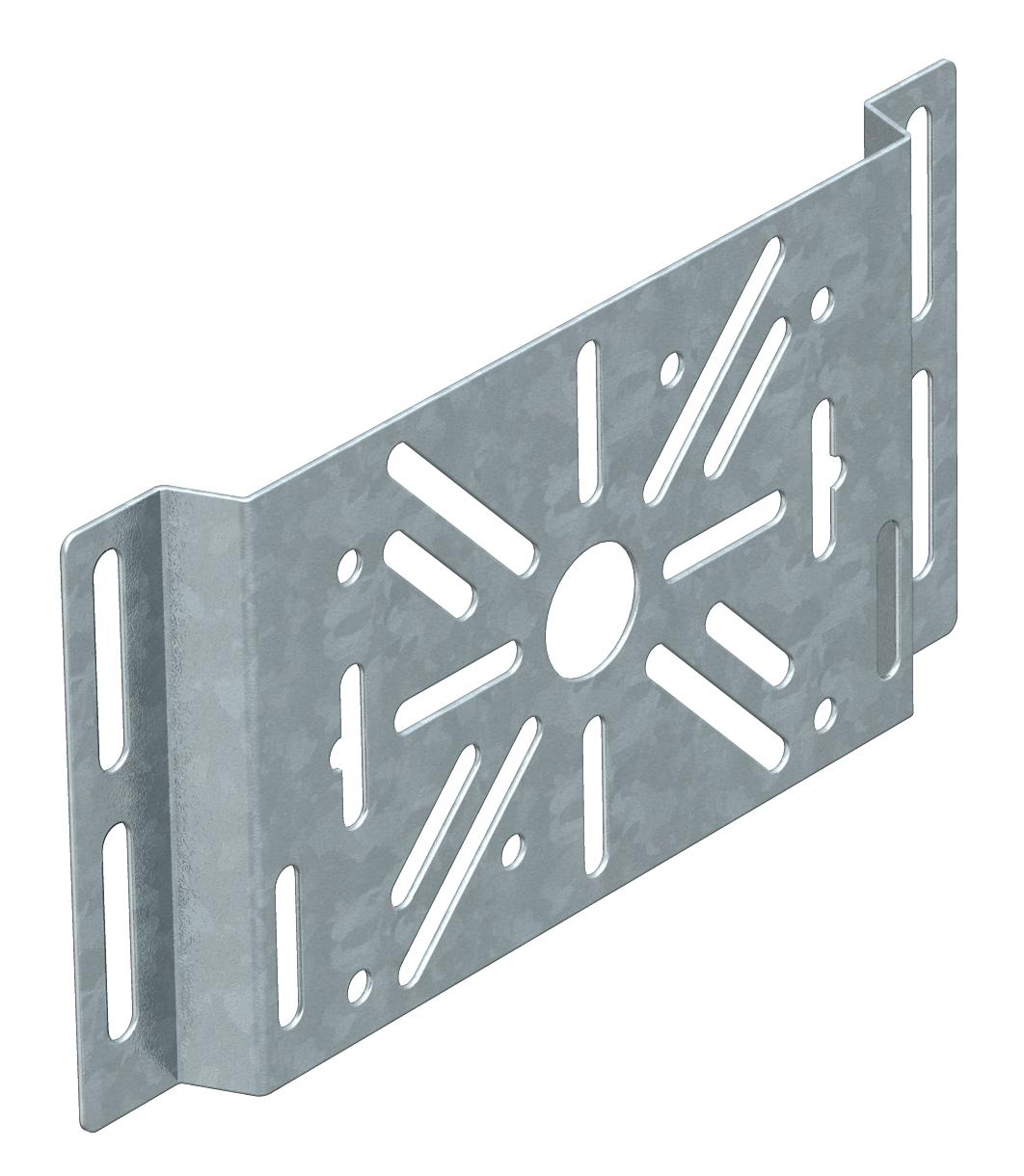

Mounting plate FS
Item no. 7084919 | EAN 4012196296293
- Product description
-
Product descriptionMounting plate for fastening on the side rail of the cable tray. All kinds of junction boxes and switching devices can be fastened to the mark.
-
- Technical data
-
Technical data

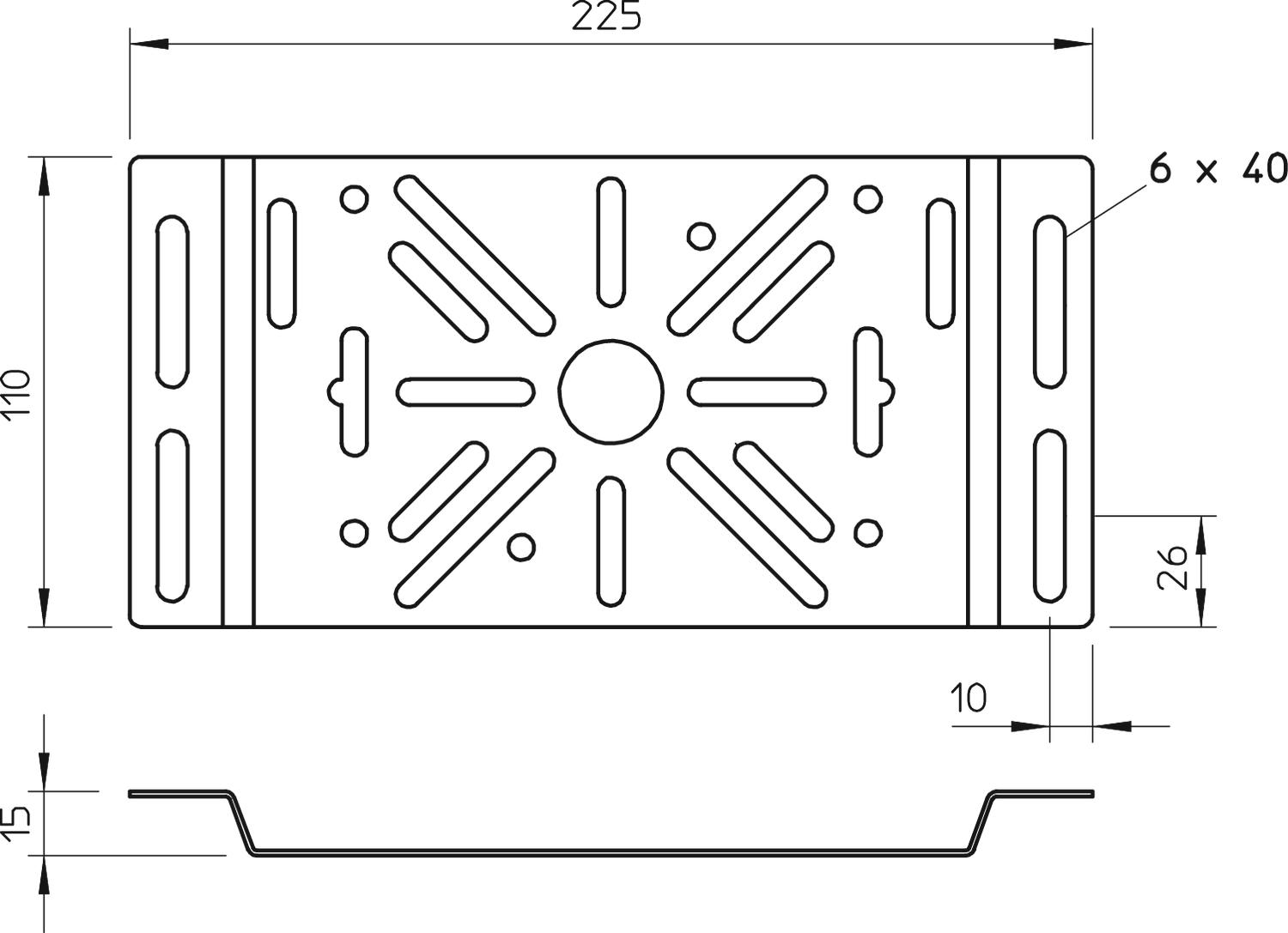

CO2 Footprint (GWP) Cradle-to-Gate 0,6584 kg CO2e / 1 Piece Colour zinc Dimension 225x110 Fastening type Screw fastening Height 110 mm Material Steel Plate thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Version for Horizontal Width 225 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Fastening pin for mounting plates
T-S MST 2007831 100 piece - Downloads
-
Data sheet MP FS / 7084919 , 0.20MB , pdfEU declaration of conformity MP FS / 7084919 , 0.10MB , pdfUK Declaration of Conformity MP FS / 7084919 , 0.09MB , pdfREACH Declaration of conformity MP FS / 7084919 , 0.12MB , pdfRoHS Declaration of conformity MP FS / 7084919 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
