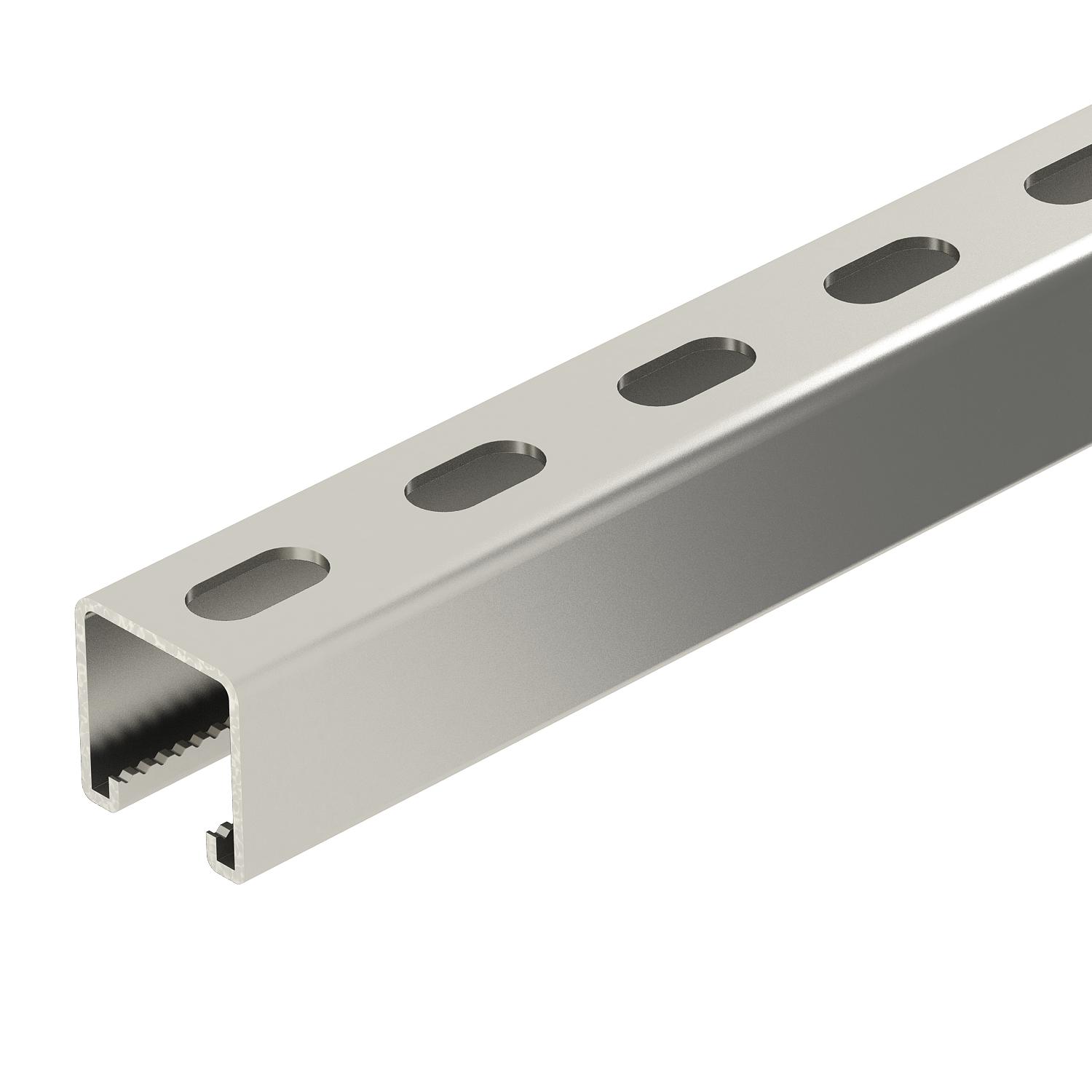

MS4141 mounting rail, slot 22 mm, perforated A4
Item no. 1123039 | EAN 4012195907169
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

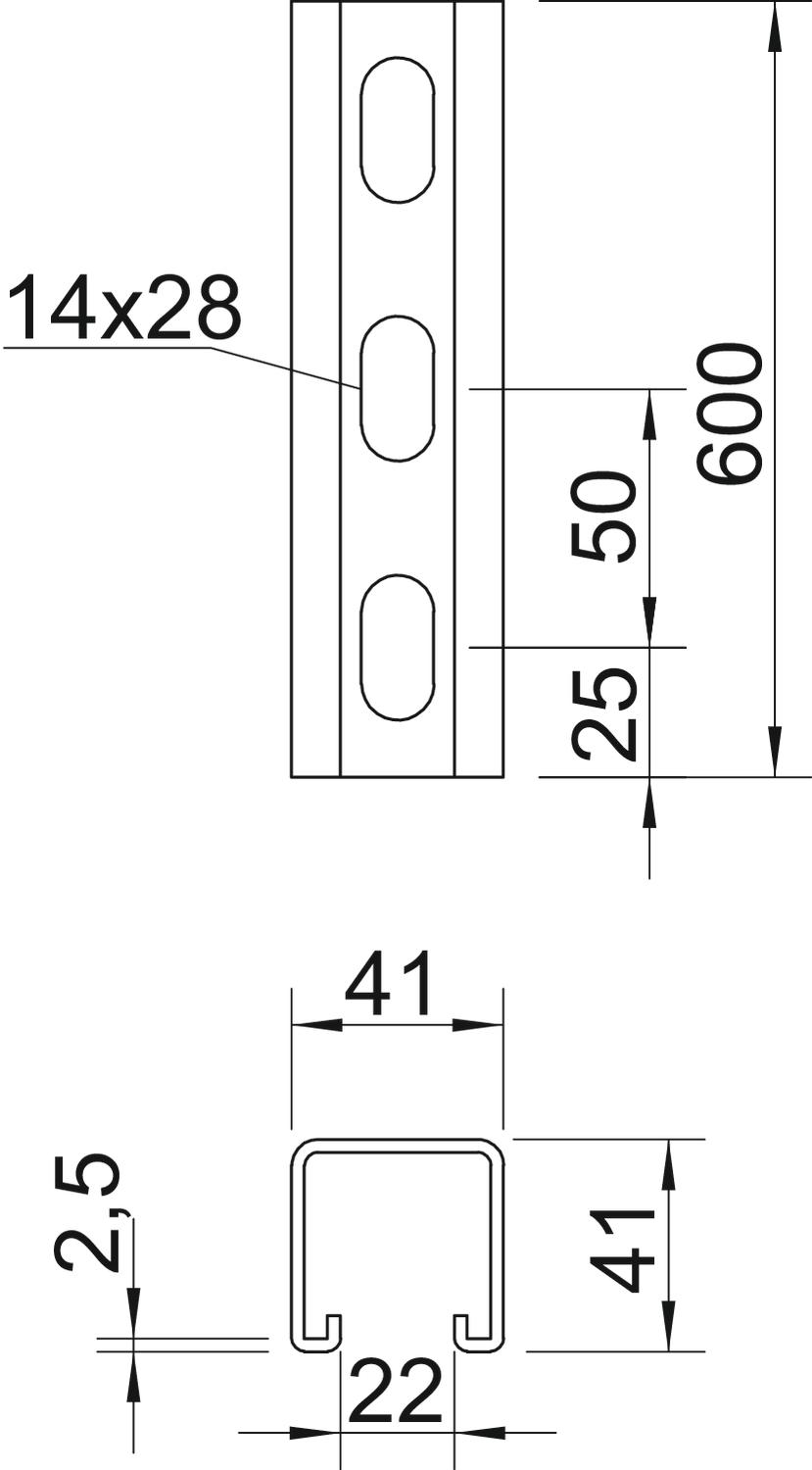

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 8,3851 kg CO2e / 1 Piece Dimension 600x41x41 Dimension L 600 mm Drill hole spacing, centre 50 mm Height 41 mm Hole size 14x28 mm Length 600 mm Maintain electrical functions no Material Stainless steel 1.4571 Material thickness 2,5 mm Profile shape C profile Slot width 22 mm Static value A 2,97 cm² Static value ly 6,05 cm⁴ Static value lz 9,01 cm⁴ Static value Wy 2,91 cm³ Static value Wz 4,4 cm³ Surface Bright, treated Type of perforation Perforated back Version for Single profile Width 41 mm With toothing yes - All types
