Nail-Fix 2.0, with steel nail

Item no. / Types

Nail length

For nail diameter	3

Product description

Product description

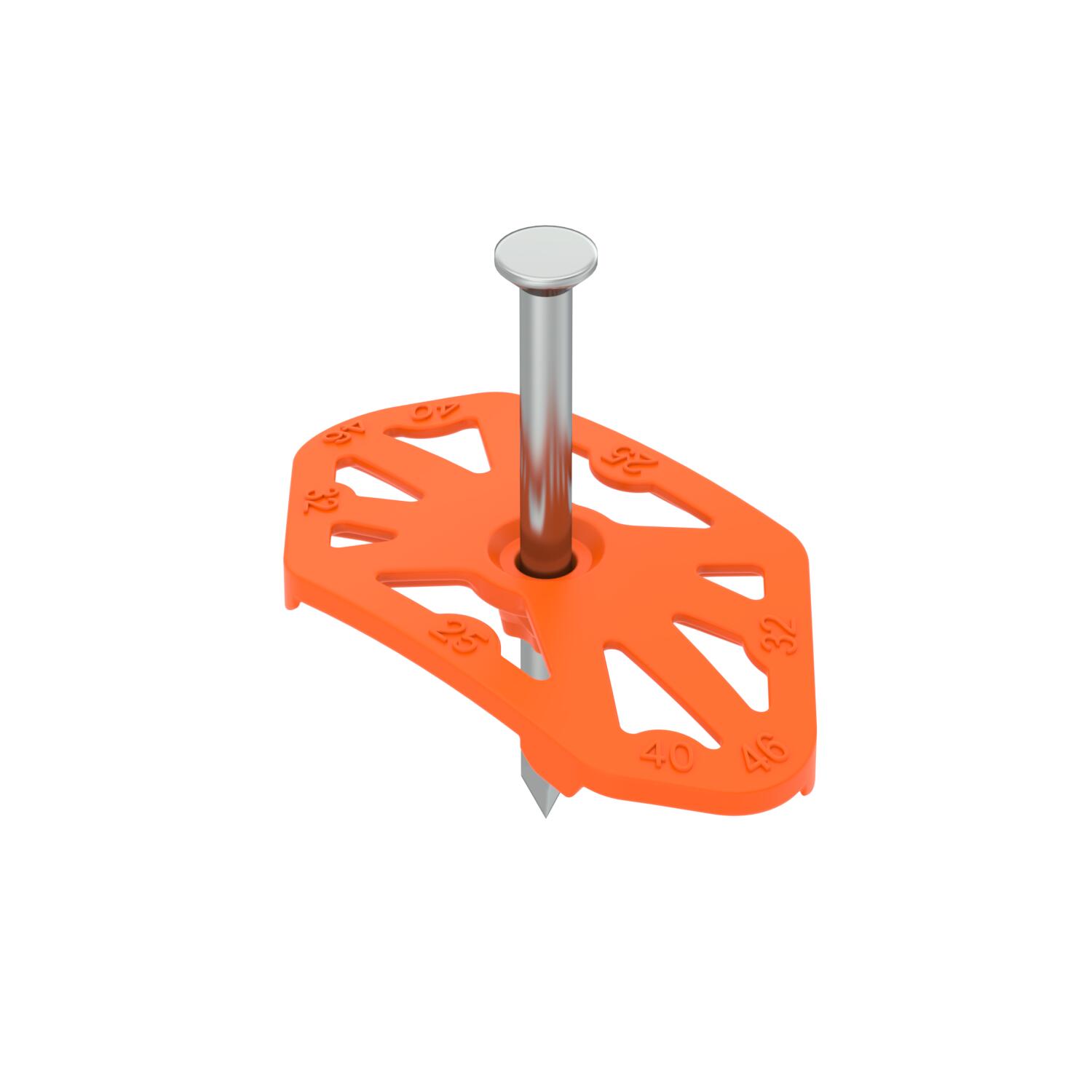

Nail-Fix 2.0 nail clip with pre-mounted galvanised steel nail, to fix cables in masonry slits of 25–46 mm and on masonry.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0099 kg CO2e / 1 Piece
Colour	Pastel orange; RAL 2003

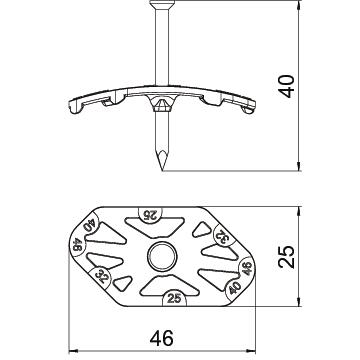

Dimension	46x25x40
Double clip	yes
Fastening type	Steel nail
For nail diameter	3
Halogen-free	yes
Hardened	yes
Height	7 mm
Impact-resistant	no

Length	43,8 mm
Material	Polypropylene
Nail diameter	3 mm
Nail length	40 mm
Pipe locking	no
Shape	Rectangular (for flat conductor)
Transparent	no
Width	23,5 mm
With nail	yes

All types

All types

Types	Nail length	For nail diameter	Item no.	Quantity	SSU
2023 40	40 mm	3	2222837	piece	100 piece
2023 50	50 mm	3	2222850	piece	100 piece
2023 60	60 mm	3	2222870	piece	100 piece
2023 70	70 mm	3	2222880	piece	100 piece

Downloads

Data sheet 2023 40 / 2222837 , 0.15MB , pdf

Flyer Wall groove clamp clip , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

No invitation to tender text is available for this product.
